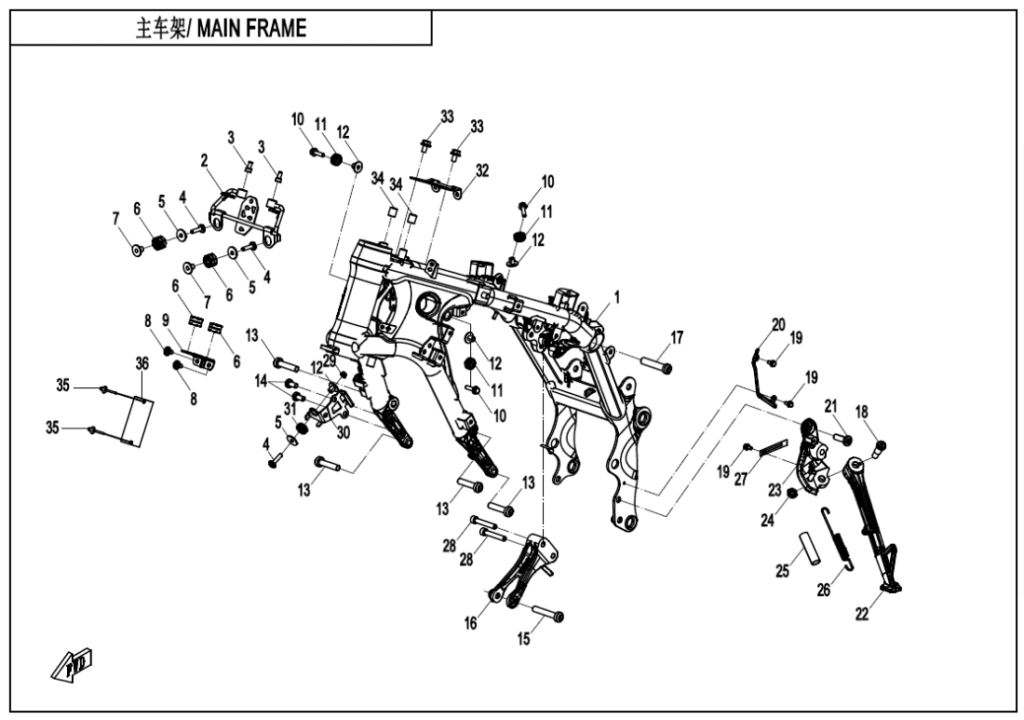

F03-1 MAIN FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT FRAME ASSY 6KWV-031000-1000-0BP00 | Skladem | |||
| 02 | HEADLIGHT UPPER BRACKET 6KWV-030050-1001 | Skladem | |||
| 03 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 04 | INNER HEX SCREW M6x25 6WWV-047002-5000 | Skladem | 15,54 Kč | ||
| 05 | RETAINER 30301-060470 | Skladem | 15,54 Kč | ||
| 06 | HEADLIGHT BRACKET SLEEVE 6KWV-030003-1000 | Skladem | 29,04 Kč | ||
| 07 | BUSHING, T-TYPE 6KM0-120010 | Skladem | 58,03 Kč | ||
| 08 | INNER HEX SCREW M6x12 6WWV-046702-5000 | Skladem | 15,54 Kč | ||
| 09 | HEADLIGHT LOWER BRACKET 6KWV-030002-1000 | Skladem | |||
| 10 | BOLT M6x22 30006-060022810 | Skladem | 15,54 Kč | ||
| 11 | DAMPING RUBBER MAT 6KM#-181001-8001 | Skladem | 46,61 Kč | ||
| 12 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 13 | INNER HEX SCREW M10x45 6WWV-030011-5000 | Skladem | 31,07 Kč | ||
| 14 | INNER HEX SCREW M8x16 6WWV-030013-5000 | Skladem | 31,07 Kč | ||
| 15 | BOLT M10x60 6L30-030091 | Skladem | 62,15 Kč | ||
| 16 | ENGINE HANGING BRACKET 6WWV-030009-5000 | Skladem | 1 289,52 Kč | ||
| 17 | BOLT M12x60 6WWV-030018-5000 | Skladem | 77,68 Kč | ||
| 18 | BOLT, SIDE BRACKET 6GU#-030008-6000 | Skladem | 77,68 Kč | ||
| 19 | Šroub 30006-050012810 | Skladem | 15,54 Kč | ||
| 20 | BRACKET, SIDE STAND SWITCH CABLE 6WWV-030003-5000 | Skladem | 116,16 Kč | ||
| 21 | INNER HEX SCREW M10x30 6WWV-030017-5000 | Skladem | 15,54 Kč | ||
| 22 | SIDE STAND 6KWV-030001-1000 | Skladem | 1 600,25 Kč | ||
| 22 | SIDE STAND 6KWV-030001-1000-10 | Skladem | 2 392,61 Kč | ||
| 23 | SIDE STAND BRACKET 6KWV-030010-1000 | Skladem | 1 755,61 Kč | ||
| 24 | Matice 30208-102810 | Skladem | 15,54 Kč | ||
| 25 | SPRING SLEEVE, SIDE BRACKET 6L30-030071-10000 | Skladem | 46,61 Kč | ||
| 26 | SPRING, SIDE BRACKET 6L32-030050 | Skladem | 155,36 Kč | ||
| 27 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 28 | INNER HEX SCREW M8x50 30102-080050110 | Skladem | 31,07 Kč | ||
| 29 | NUT M6 30204-060870 | Skladem | 29,02 Kč | ||
| 30 | HORN BRACKET 6KWV-030060-1000 | Skladem | 93,22 Kč | ||
| 31 | RUBBER BUSHING 6WWV-030019-5000 | Skladem | 15,54 Kč | ||
| 32 | ROLL-OVER SENSOR SEAT 6KWV-030070-1000 | Skladem | |||
| 33 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 34 | POWER LOCK BUSHING 6KWV-030004-1000 | Není skladem | |||
| 35 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 36 | VIN PLATE 6WWV-190012-5H00 | Skladem | |||
| 36 | VIN PLATE 6WWV-190012-5H01 | Skladem | |||
| 37 | 6D SENSOR BRACKET 6KWV-030020-1100 | Skladem | |||
