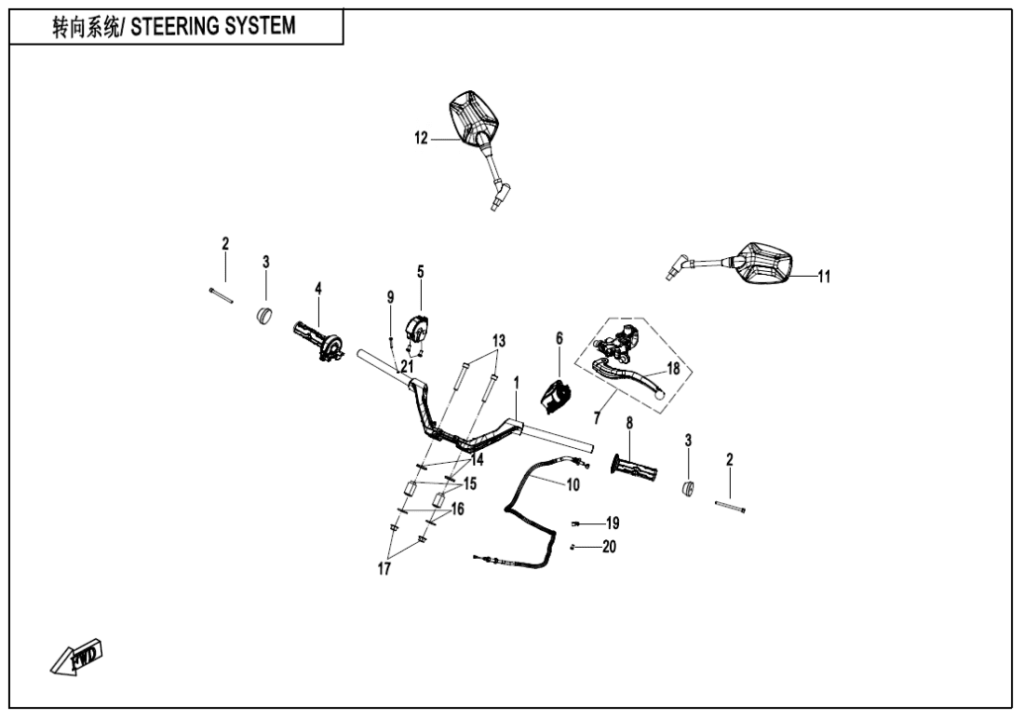

F10-B STEERING SYSTEM(ADVANCED)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HANDLEBAR ASSY 6KWV-100100-1101 | Skladem | |||
| 2 | SCREW M10x1.25×70 30102-102070810 | Skladem | 46,61 Kč | ||
| 3 | BALANCE BLOCK 6FI3-100020-10000 | Skladem | 186,44 Kč | ||
| 4 | E-THROTTLE ASSY 6GUV-100020-6000-M1 | Skladem | 3 697,66 Kč | ||
| 5 | RH HANDLEBAR SWITCH ASSY 6KWV-167000-1100 | Skladem | 1 879,90 Kč | ||
| 6 | LH HANDLEBAR SWITCH ASSY 6KWV-166000-1101 | Skladem | 3 635,52 Kč | ||
| 7 | CLUTCH LEVER ASSY 6WWV-100200-5000-10 | Skladem | |||
| 8 | LH HAND GRIP SLEEVE 6GUV-100001-6002 | Skladem | 295,19 Kč | ||
| 9 | SCREW M4x30 30105-040030410 | Skladem | 15,54 Kč | ||
| 10 | CLUTCH CABLE 6KWV-100600-1101 | Skladem | |||
| 11 | LH REAR VIEW MIRROR ASSY 6KWV-200300-1000 | Není skladem | 2 019,73 Kč | ||
| 12 | RH REAR VIEW MIRROR ASSY 6KWV-200400-1000 | Není skladem | 2 019,73 Kč | ||
| 14 | CIRCULAR RUBBER RING 6KWV-100061-1000 | Skladem | 15,54 Kč | ||
| 15 | RUBBER SLEEVE 6KWV-100060-1000 | Skladem | |||
| 16 | Podložka 30306-100112 | Skladem | 15,54 Kč | ||
| 17 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 18 | CLUTCH LEVER 6WWV-100201-5000 | Skladem | 621,46 Kč | ||
| 19 | WIRE CLIP, CLUTCH CABLE 6WWV-100800-5000 | Skladem | 31,07 Kč | ||
| 20 | INNER HEX SCREW M5x14 6WWV-047102-5000 | Skladem | 15,54 Kč | ||
| 21 | Šroub (vrut) 30137-250120010 | Skladem | 15,54 Kč | ||
