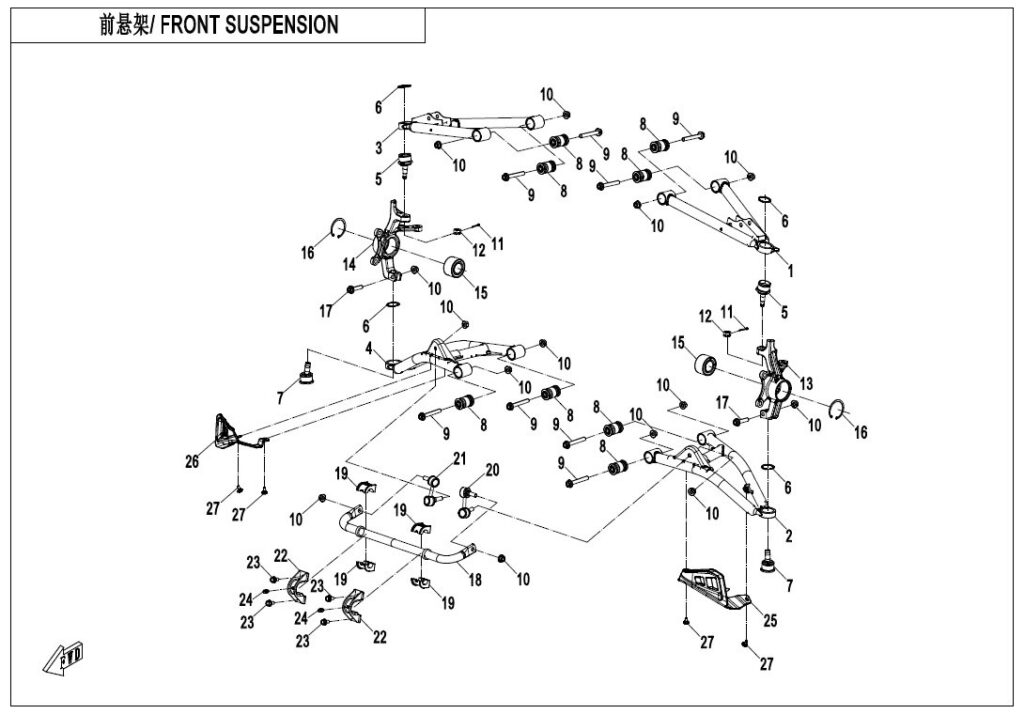

F05-1 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT LH UPPER SWING ARM ASSY 9AWV-050110-8001-0BP00 | Skladem | 1 988,66 Kč | ||
| 02 | FRONT LH LOWER SWING ARM ASSY 9AWV-050210-8001-0BP00 | Skladem | 2 982,99 Kč | ||
| 03 | FRONT RH UPPER SWING ARM ASSY 9AWV-050310-8001-0BP00 | Skladem | 1 988,66 Kč | ||
| 04 | FRONT RH LOWER SWING ARM ASSY 9AWV-050410-8001-0BP00 | Skladem | 2 982,99 Kč | ||
| 05 | UPPER BALL PIN ASSY 9DQV-056100-3000 | Skladem | 745,75 Kč | ||
| 06 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 07 | LOWER BALL PIN ASSY. 9010-050800-20000 | Skladem | 901,11 Kč | ||
| 08 | DAMPING SLEEVE ASSY 9DQV-050900-3000 | Skladem | 130,68 Kč | ||
| 09 | Šroub 30006-102070110 | Skladem | 46,61 Kč | ||
| 10 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 11 | COTTER PIN 30903-0252010 | Skladem | 15,54 Kč | ||
| 12 | 1-TYPE NUT 9010-100002 | Skladem | 46,61 Kč | ||
| 13 | LH STEERING KNUCKLE 9AWV-050701-8000 | Skladem | 2 377,07 Kč | ||
| 14 | RH STEERING KNUCKLE 9AWV-050801-8000 | Skladem | 2 377,07 Kč | ||
| 15 | BEARING, HUB 9GQ0-050710 | Skladem | 683,60 Kč | ||
| 16 | CIRCLIP FOR HOLE 55 30800-05505 | Skladem | 31,07 Kč | ||
| 17 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 18 | FRONT SWAY BAR ASSY 9AWV-050610-8001-0BP00 | Není skladem | 1 305,06 Kč | ||
| 19 | SUPPORT, STABILIZER BAR 9GQ0-060003 | Skladem | 87,05 Kč | ||
| 20 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 21 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 22 | FRONT SWAY BAR PRESS COVER 9AWV-050620-8000 | Není skladem | 116,16 Kč | ||
| 23 | BOLT 30006-080016110 | Skladem | 15,54 Kč | ||
| 24 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 25 | LH FRONT SUSPENSION GUARD 9AWV-044041-8000 | Skladem | 159,72 Kč | ||
| 26 | RH FRONT SUSPENSION GUARD 9AWV-044042-8000 | Skladem | 159,72 Kč | ||
| 27 | INNER HEX BOLT M6x14 5BWV-040001-5000 | Skladem | 15,54 Kč | ||
