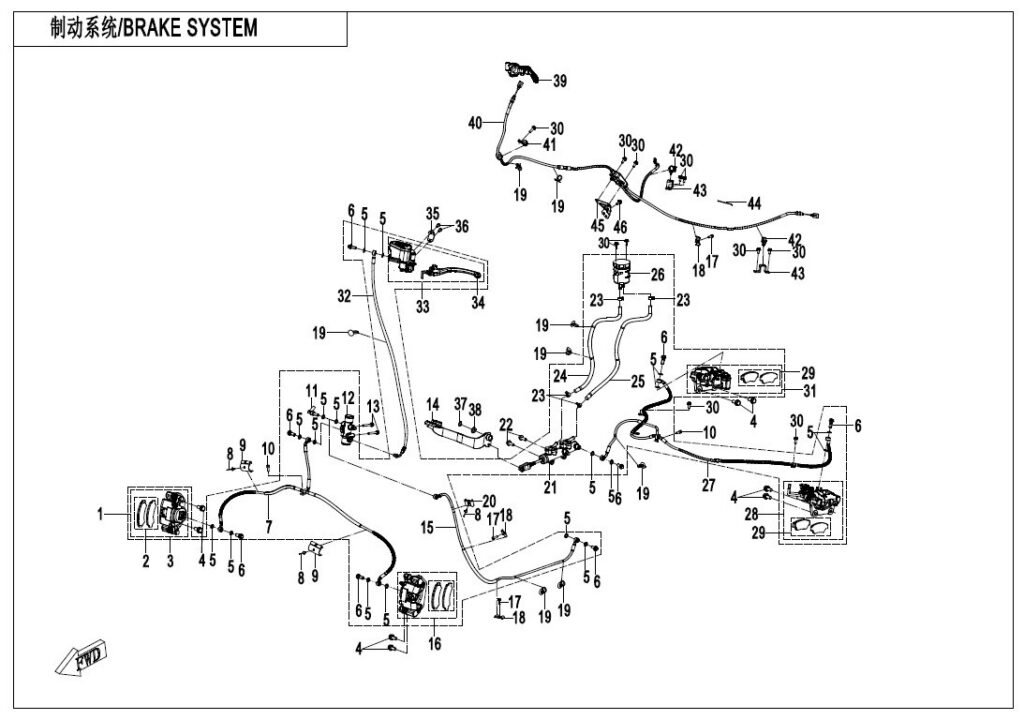

F08 BRAKE SYSTEM-RH
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | HYDRAULIC BRAKE ASSY 9AYV-081000-5N00 | 1 | |||
| 2 | FRONT BRAKE PAD ASSY 5HYV-0811A0 | Skladem | 1 336,13 Kč | ||
| 3 | FRONT RH BRAKE CALIPER ASSY 9AYV-081400-5K00 | Skladem | 3 992,85 Kč | ||
| 4 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 5 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 6 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 7 | FRONT BRAKE HOSE ASSY 9AWV-080150-9001 | Skladem | 2 252,78 Kč | ||
| 8 | BLIND RIVET 30902-0401320 | Skladem | 15,54 Kč | ||
| 9 | PLASTIC CLASP 5BY0-080002 | Skladem | 46,61 Kč | ||
| 10 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 11 | HYDRAILIC SENSOR SWITCH 9AYV-081E00-5K00 | Skladem | 481,63 Kč | ||
| 12 | Rozdělovač brzd 9AWV-081070-4000 | Skladem | 2 283,85 Kč | ||
| 13 | BOLT M6x45 30006-060045810 | Skladem | 15,54 Kč | ||
| 14 | BRAKE PEDAL ASSY 9AWV-080200-8002-0BP00 | Skladem | 372,87 Kč | ||
| 15 | FOOT BRAKE MASTER CYLINDER PIPE ASSY 9AYV-081J00-5K00 | Skladem | 1 165,23 Kč | ||
| 16 | FRONT LH BRAKE CALIPER ASSY 9AYV-081300-5K00 | Skladem | 3 992,85 Kč | ||
| 17 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 18 | CLIP I, LH OIL HOSE 5BY0-080001 | Skladem | 101,64 Kč | ||
| 19 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 20 | PLASTIC CLASP 3 9DQV-080003-3000 | Skladem | 31,07 Kč | ||
| 21 | MASTER CYLINDER 5BWB-081100 | Skladem | 2 485,82 Kč | ||
| 22 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 23 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 24 | FLUID RESERVOIR HOSE 9AWV-080102-9000 | Skladem | 590,38 Kč | ||
| 25 | FLUID RESERVOIR HOSE 9AWV-080101-9000 | Skladem | 590,38 Kč | ||
| 26 | FLUID RESERVOIR ASSY 9AWV-080110-8300 | Skladem | 1 087,55 Kč | ||
| 27 | REAR BRAKE FLUID HOSE ASSY 9AWV-080160-9000 | Skladem | 3 666,59 Kč | ||
| 28 | REAR LH BRAKE CALIPER ASSY 9AYV-081500-5K00 | Skladem | 5 732,93 Kč | ||
| 29 | REAR BRAKE PAD ASSY 5HYV-0813A0 | Skladem | 1 196,30 Kč | ||
| 30 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 31 | REAR RH BRAKE CALIPER ASSY 9AYV-081600-5K00 | Skladem | 5 732,93 Kč | ||
| 32 | HAND BRAKE FLUID HOSE ASSY 9AYV-081K00-5K00 | Skladem | 3 977,32 Kč | ||
| 33 | LH HAND BRAKE MASTER CYLINDER ASSY 9AYV-081A00-5K00 | Skladem | 2 299,39 Kč | ||
| 34 | LEVER 9DQV-081100-3000-22 | Skladem | 668,07 Kč | ||
| 35 | PRESS CAP, HAND BRAKE MASTER CYLINDER 9AY0-080005 | Skladem | 174,24 Kč | ||
| 36 | INNER HEX SCREW M6×20 30102-060020870 | Skladem | 15,54 Kč | ||
| 37 | CIRCLIPS FOR SHAFT14 30801-01405 | Skladem | 15,54 Kč | ||
| 38 | Podložka 30306-140112 | Skladem | 15,54 Kč | ||
| 39 | RH PARKING LEVER 9AYV-084300-5K00 | Skladem | 1 988,66 Kč | ||
| 40 | PARKING CABLE ASSY 9AYV-084400-5K00 | Skladem | 1 165,23 Kč | ||
| 41 | WIRE CLIP, OIL HOSE 5HYV-080410-1C00 | Skladem | 46,61 Kč | ||
| 42 | CLIP , CLUTCH CABLE A000-100002 | Skladem | 15,54 Kč | ||
| 43 | BRACKET, PARKING CABLE, REAR SWING ARM 9AWA-060107 | Skladem | 31,07 Kč | ||
| 44 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 45 | BRACKET, BRAKE HOSE CASE 9AWV-030050-8000 | Skladem | 87,12 Kč | ||
| 46 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
