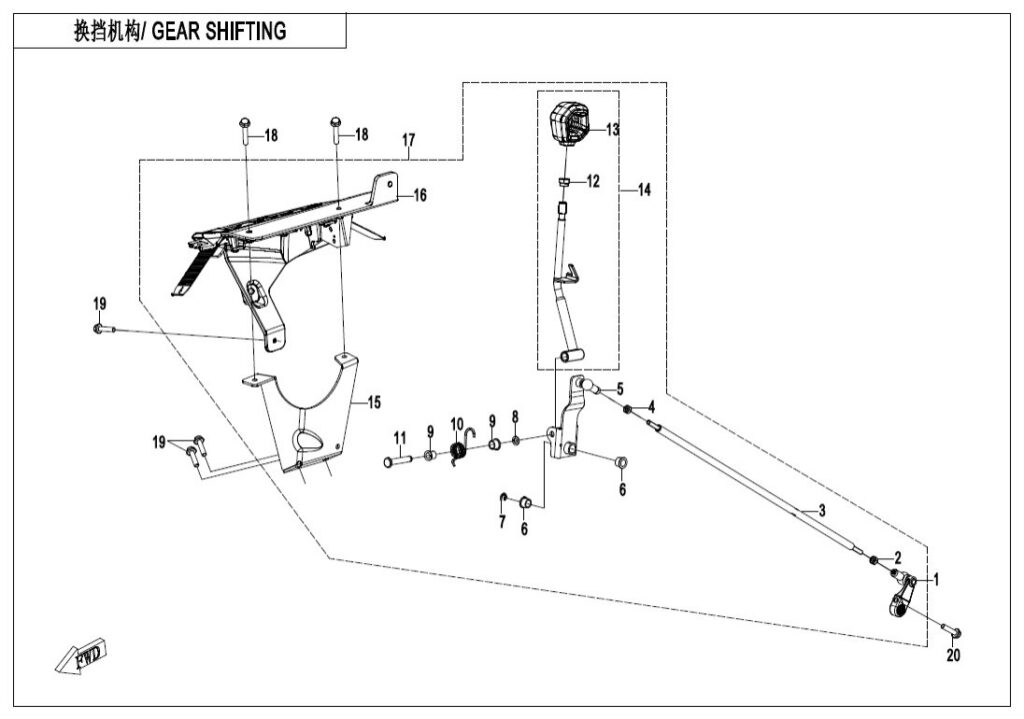

F32-V2 GEAR SHIFTING
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | ROCKER, GEARSHIFT 9010-320200-1000 | Skladem | 543,77 Kč | ||
| 2 | Matice 30200-06081L | Skladem | 31,07 Kč | ||
| 3 | GEARSHIFT ROD 9AYV-320301-5K00 | Skladem | 295,19 Kč | ||
| 4 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 5 | GEARSHIFT SWING ARM ASSY 9AYV-321200-5K00 | Skladem | 233,05 Kč | ||
| 6 | BUSHING, ARM 9CR6-321003 | Skladem | 15,54 Kč | ||
| 7 | SPLIT WASHER, 8 30802-00805 | Skladem | 15,54 Kč | ||
| 8 | CIRCLIP 6 30802-00605 | Skladem | 15,54 Kč | ||
| 9 | NYLON BUSH 9010-320009 | Skladem | 31,07 Kč | ||
| 10 | GEARSHIFT SPRING 9AWV-321002-8000 | Skladem | 77,68 Kč | ||
| 11 | SHAFT PIN 9CR6-321001 | Skladem | 31,07 Kč | ||
| 12 | GEARSHIFT LOCK NUT 9AYV-321100-5K00-20 | Skladem | 62,15 Kč | ||
| 13 | GEARSHIFT LEVER 9AYV-321120-5K00 | Skladem | 372,87 Kč | ||
| 14 | GEARSHIFT ROD ASSY 9AYV-321100-5K01 | Skladem | 652,53 Kč | ||
| 15 | GEARSHIFT LIMIT GUARD BRACKET ASSY 9AYV-321030-5K01 | Skladem | 543,77 Kč | ||
| 16 | GEARSHIFT LIMIT GUARD ASSY 9AYV-321010-5K01 | Skladem | 1 351,67 Kč | ||
| 17 | GEARSHIFT ASSY 9AYV-321000-5K01 | Skladem | 3 169,43 Kč | ||
| 18 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 19 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 20 | BOLT M6x22 0010-080013-0010 | Skladem | 15,54 Kč | ||
