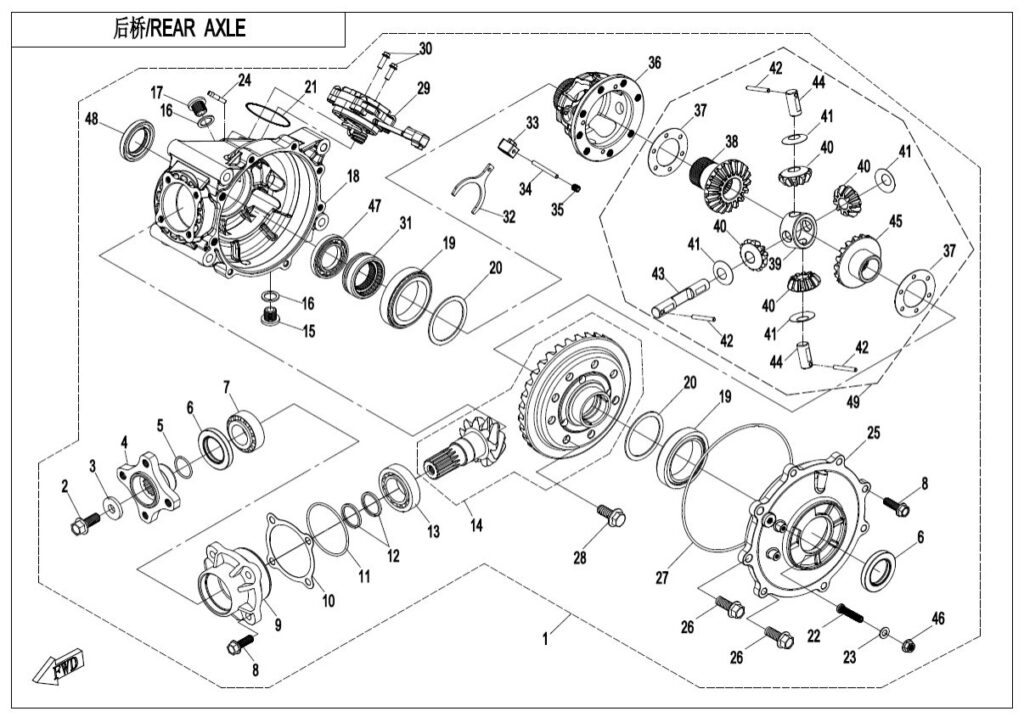

F33-A REAR AXLE(ON CAMMAND)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | REAR GEAR CASE ASSY Q880-330000-00001 | Skladem | 33 776,13 Kč | ||
| 2 | Šroub Q860-331002 | Skladem | 31,07 Kč | ||
| 3 | WHASHER 0180-331008-00001 | Skladem | 46,61 Kč | ||
| 4 | COUPLER Q850-331002 | Skladem | 699,14 Kč | ||
| 5 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 6 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 7 | Ložisko 30409-02500 | Skladem | 543,77 Kč | ||
| 8 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 9 | BEARING SEAT Q830-311002-00001 | Skladem | 636,99 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00100 | Skladem | 46,61 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00200 | Skladem | 46,61 Kč | ||
| 11 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00301 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00401 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00501 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00601 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00701 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00801 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00901 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01001 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01101 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01201 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01301 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01401 | Skladem | 31,07 Kč | ||
| 13 | Ložisko 30409-03000 | Skladem | 481,63 Kč | ||
| 14 | BEVEL GEAR ASSY, REAR GEAR CASE Q860-3300B0 | Skladem | 5 049,33 Kč | ||
| 15 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 16 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 17 | BOLT M14×1.25×12 0180-021008-0010 | Skladem | 58,03 Kč | ||
| 18 | REAR GEAR CASE Q880-330001-00001 | Skladem | 4 365,73 Kč | ||
| 19 | Ložisko 30409-05000 | Skladem | 1 538,10 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00800 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00900 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00100 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00200 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00300 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00400 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00500 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00600 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00700 | Skladem | 46,61 Kč | ||
| 21 | O-RING 67.5*2 Q830-310012-10000 | Skladem | 62,15 Kč | ||
| 22 | INNER HEX SCREW M8×45 0180-334005-0010 | Skladem | 31,07 Kč | ||
| 23 | GASKET 0180-334004 | Skladem | 31,07 Kč | ||
| 24 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 25 | REAR GEAR CASE COVER Q860-330004-00001 | Skladem | 1 087,55 Kč | ||
| 26 | BOLT M10×1.25×25 0180-330004-0010 | Skladem | 31,07 Kč | ||
| 27 | O-SEAL RING 151×3 0180-334002 | Skladem | 43,52 Kč | ||
| 28 | BOLT M10×1.25×18 0180-313100-0010 | Skladem | 31,07 Kč | ||
| 29 | ELECTRICAL REAR GEAR CASE MOTOR 9AWV-152910-8000 | Skladem | 4 536,63 Kč | ||
| 30 | BOLT M6×18 0010-023008 | Skladem | 15,54 Kč | ||
| 31 | SPLINE BUSHING Q870-330003 | Skladem | 466,09 Kč | ||
| 32 | FORK Q870-330002 | Skladem | 174,24 Kč | ||
| 33 | BLOCK ASSY. Q890-310010 | Skladem | 668,07 Kč | ||
| 34 | PIN SHAFT Q870-330004 | Skladem | 31,07 Kč | ||
| 35 | INNER HEX SCREW 30130-080010820 | Skladem | 15,54 Kč | ||
| 36 | DIFFERENTIAL HOUSING Q880-333101 | Skladem | 2 128,49 Kč | ||
| 37 | WASHER, CV SHAFT GEAR Q870-333108 | Skladem | 46,61 Kč | ||
| 38 | LH SHAFT GEAR Q880-333103 | Skladem | 1 895,44 Kč | ||
| 39 | CROSS BUSHING Q870-333102 | Skladem | 295,19 Kč | ||
| 40 | PLANET GEAR Q870-333105 | Skladem | 295,19 Kč | ||
| 41 | SPHERICAL WASHER Q870-333109 | Skladem | 31,07 Kč | ||
| 42 | PIN 30906-0504000 | Skladem | 15,54 Kč | ||
| 43 | PLANET GEAR SHAFT Q870-333106 | Skladem | 357,34 Kč | ||
| 44 | SHORT PLANET GEAR SHAFT Q870-333107 | Skladem | 188,76 Kč | ||
| 45 | RH CV SHAFT GEAR Q870-333104 | Skladem | 1 149,69 Kč | ||
| 46 | NUT M8 0180-334006-0010 | Skladem | 15,54 Kč | ||
| 47 | BEARING 16007 30400-03501 | Skladem | 233,05 Kč | ||
| 48 | OIL SEAL 35×58×5 0120-061000 | Skladem | 108,75 Kč | ||
| 49 | DIFFERENTIAL ASSY Q880-3331A0 | Skladem | 5 484,35 Kč | ||
