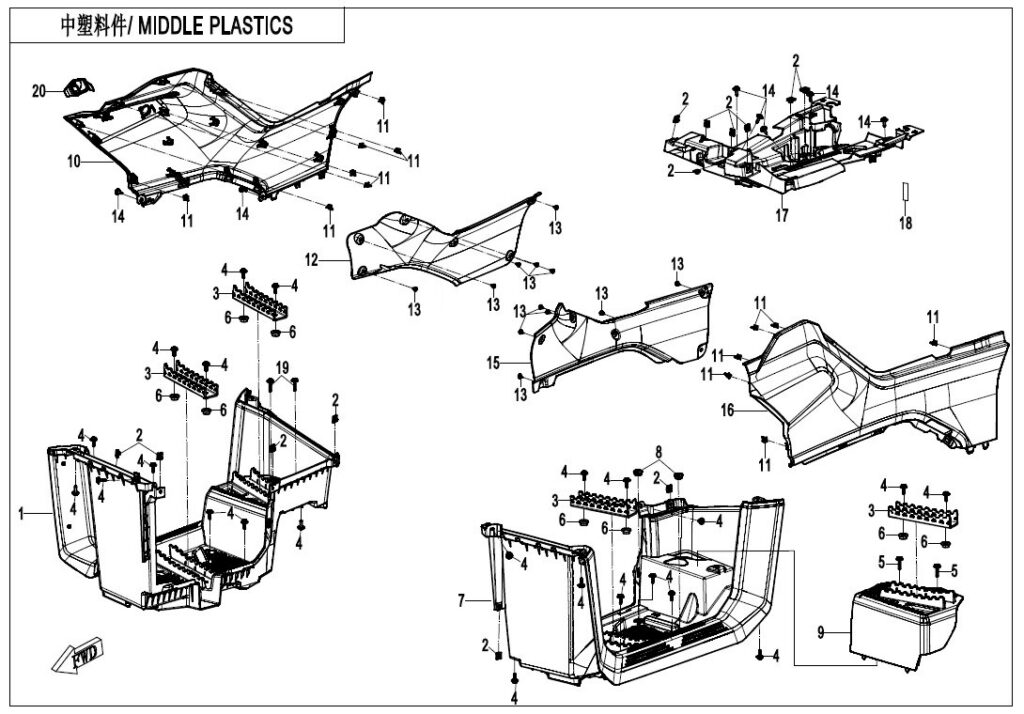

F04-3-B-V2 MIDDLE PLASTICS(WITH GEARSHIFT LOCK)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RH FOOT PEDAL 9AYV-043502-5K01 | Skladem | 1 709,00 Kč | ||
| 02 | NUT CLIP M6 8030-040800-00001 | Skladem | 15,54 Kč | ||
| 03 | ANTISKID TEETH ASSY. 9NTV-043505-1200 | Skladem | 388,41 Kč | ||
| 04 | INNER HEX BOLT M6x20 5BWV-040007-5000 | Skladem | 15,54 Kč | ||
| 05 | M6×30 BOLT 5BWV-040018-5000 | Skladem | 31,07 Kč | ||
| 06 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 07 | LH FOOT PEDAL 9AYV-043501-5K01 | Skladem | 1 709,00 Kč | ||
| 08 | RUBBER SLEEVE 5BY0-040010 | Skladem | 31,07 Kč | ||
| 09 | LH FOOT PEDAL BLOCK 9AYV-043503-5K00 | Skladem | 357,34 Kč | ||
| 10 | RH SIDE COVER 9AYV-044176-5K01-0BM00 | Skladem | 2 190,63 Kč | ||
| 10 | RH SIDE COVER 9AYV-044176-5K01-0BQ00 | Skladem | 2 190,63 Kč | ||
| 11 | A-CLASP 7DHV-040001-1000 | Skladem | 15,54 Kč | ||
| 12 | RH SIDE COVER HEAT INSULATOR 9AYV-045062-5K00 | Skladem | 605,92 Kč | ||
| 13 | INNER HEX SLEF-TAPPING SCREW ST4.8×13 5BWV-040015-5000 | Skladem | 15,54 Kč | ||
| 14 | INNER HEX BOLT M6x20 5BWV-040008-5000 | Skladem | 15,54 Kč | ||
| 15 | LH SIDE COVER HEAT INSULATOR 9AYV-045061-5K01 | Skladem | 481,63 Kč | ||
| 16 | LH SIDE COVER 9AYV-042623-5K01-0BM00 | Skladem | 2 190,63 Kč | ||
| 16 | LH SIDE COVER 9AYV-042623-5K01-0BQ00 | Skladem | 2 190,63 Kč | ||
| 17 | SEAT LOWER PANEL 9AYV-044421-5K00 | Skladem | 683,60 Kč | ||
| 18 | SPONGE MAT 6KM#-160420-8001 | Skladem | 15,54 Kč | ||
| 19 | BOLT 9AYV-804106-6700 | Skladem | 15,54 Kč | ||
| 20 | GEARSHIFT LOCK COVER 9AYV-045521-5K02 | Skladem | 77,68 Kč | ||
