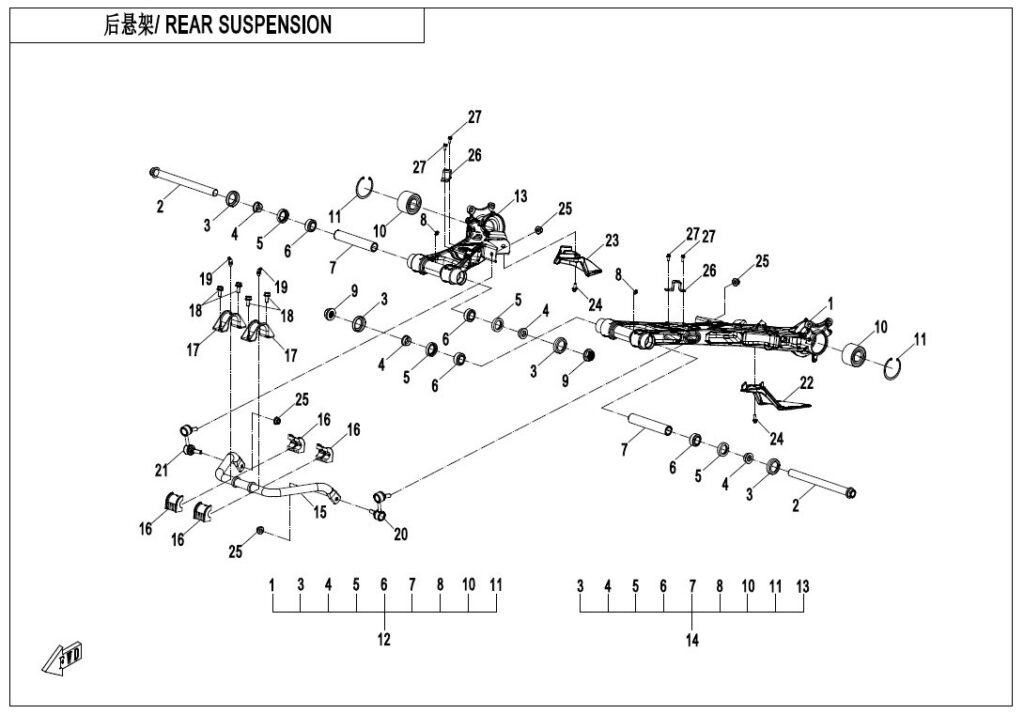

F06-1 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR LH SWING ARM ASSY 9AWV-060110-8002-0BP00 | Skladem | 10 766,73 Kč | ||
| 02 | REAR SWING ARM SHAFT 9AWV-060103-8000 | Skladem | 450,56 Kč | ||
| 03 | DUST COVER 9AWA-060105 | Skladem | 46,61 Kč | ||
| 04 | BUSHING, SWING ARM 9AWA-060102 | Skladem | 93,22 Kč | ||
| 05 | OIL SEAL 24×38×8 9AWA-060106 | Skladem | 62,15 Kč | ||
| 06 | BEARING, REAR SWINGARM 9AWA-060109 | Skladem | 341,80 Kč | ||
| 07 | INNER LINER, REAR SWING ARM 9AWA-060101-10000 | Skladem | 130,57 Kč | ||
| 08 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 09 | LOCK NUT, SWING ARM 9AWA-060108 | Skladem | 93,22 Kč | ||
| 10 | HUB BEARING 30411-03081 | Skladem | 963,26 Kč | ||
| 11 | CIRCLIP FOR HOLE 30800-06005 | Skladem | 46,61 Kč | ||
| 12 | REAR LH SWING ARM ASSY 9AWV-060100-8002-0BP00 | Skladem | 9 881,15 Kč | ||
| 13 | REAR RH SWING ARM ASSY 9AWV-060210-8002-0BP00 | Skladem | 10 766,73 Kč | ||
| 14 | REAR RH SWING ARM ASSY 9AWV-060200-8002-0BP00 | Skladem | 9 881,15 Kč | ||
| 15 | REAR SWAY BAR ASSY 9AWA-060410-1BP00 | Skladem | 1 367,20 Kč | ||
| 16 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 17 | SWAY BAR PRESS COVER 9AWV-060610-8000 | Skladem | 116,16 Kč | ||
| 18 | BOLT 30006-080016110 | Skladem | 15,54 Kč | ||
| 19 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 20 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 21 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 22 | REAR SUSPENSION PLATE, LH 9AWA-044043 | Skladem | 130,57 Kč | ||
| 23 | REAR SUSPENSION PLATE, RH 9AWA-044044 | Skladem | 130,57 Kč | ||
| 25 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 26 | BRACKET, PARKING CABLE, REAR SWING ARM 9AWA-060107 | Skladem | 31,07 Kč | ||
| 27 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
