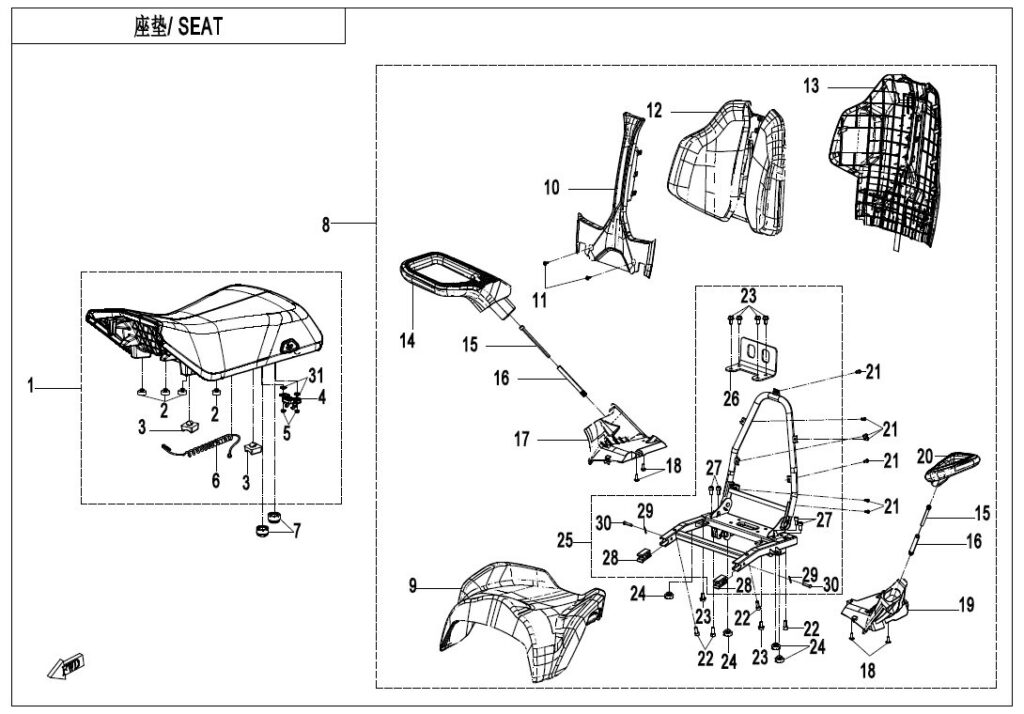

F13-V2 SEAT
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FRONT CUSHION ASSY 9AYV-131000-5K01 | 1 | |||
| 1 | FRONT CUSHION ASSY 9AYV-133000-5H01 | 1 | |||
| 2 | RUBBER MAT 9AYV-133000-5H00-40 | Skladem | 31,07 Kč | ||
| 3 | DAMPING RUBBER GASKET 9DQV-130002-3000 | Skladem | 130,68 Kč | ||
| 4 | SEAT HOOK ASSY 9AWV-131000-9000-23 | Skladem | 310,73 Kč | ||
| 5 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 6 | PRESSURE SENSOR 9AWV-131000-9000-24 | Skladem | 699,14 Kč | ||
| 7 | RUBBER SLEEVE, REAR SEAT 7020-130001 | Skladem | 62,15 Kč | ||
| 8 | PASSENGER SEAT ASSY 9AYV-132000-5K01 | 1 | |||
| 9 | PASSENGER SEAT ASSY 9AYV-132000-5K00-25 | 1 | |||
| 10 | BACKREST FRONT DECO COVER 9AYV-132000-5K00-22 | Skladem | 248,58 Kč | ||
| 11 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 12 | REAR BACKREST ASSY 9AYV-132100-5K01-20 | 1 | |||
| 13 | BACKREST REAR DECO COVER ASSY 9AYV-132000-5K01-21 | 1 | |||
| 14 | RH ARMREST ASSY 9AYV-132200-5K00 | Skladem | 2 004,20 Kč | ||
| 15 | INNER HEX SOCKET HEAD CAP SCREW 9AYV-132000-5K00-24 | 2 | |||
| 16 | REAR SEAT ASSY 9AWV-134000-8000 | Skladem | 93,22 Kč | ||
| 17 | SEAT RH CONNECTING BASE 9AWV-132000-8001-22 | Skladem | 1 040,94 Kč | ||
| 18 | BOLT M6x16 A010-120003 | Skladem | 31,07 Kč | ||
| 19 | SEAT LH CONNECTING BASE 9AWV-132000-8001-21 | Skladem | 1 040,94 Kč | ||
| 20 | LH ARMREST ASSY 9AYV-132300-5K00 | Skladem | 2 004,20 Kč | ||
| 21 | SCREW M6x12 0010-090006 | Skladem | 31,07 Kč | ||
| 22 | SCREW M8x20 30102-080020870 | Skladem | 15,54 Kč | ||
| 23 | Šroub 30006-080016870 | Skladem | 15,54 Kč | ||
| 24 | RUBBER MAT 9AWA-132334-10000 | Skladem | 62,15 Kč | ||
| 25 | REAR SEAT FRAME ASSY 9AWV-132100-8000 | Skladem | 3 247,11 Kč | ||
| 26 | LEAF SPRING 9AWV-132140-8000 | Skladem | 326,26 Kč | ||
| 27 | SCREW 30102-080016870 | Skladem | 31,07 Kč | ||
| 28 | LIMIT BLOCK 9AWA-132333 | Skladem | 87,05 Kč | ||
| 29 | COTTER PIN 9AWV-132100-8000-21 | Skladem | 15,54 Kč | ||
| 30 | PIN SHAFT 9AWV-132100-8000-22 | Skladem | 15,54 Kč | ||
| 31 | GASKET 9AYV-131000-5K00-20 | 2 | |||
