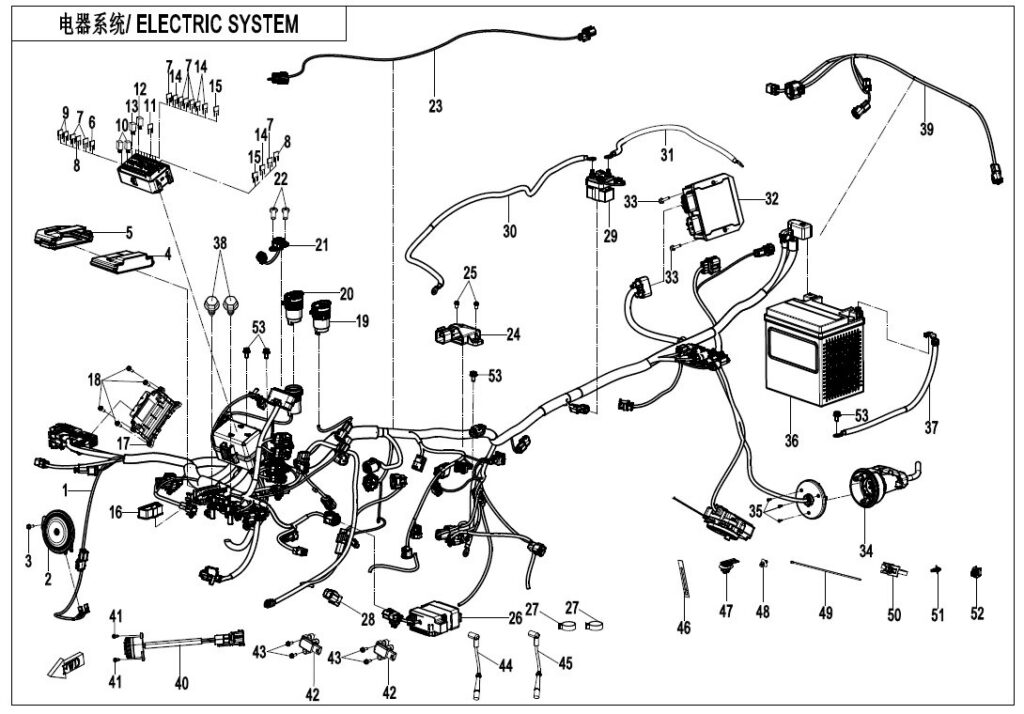

F15-1-A ELECTRIC SYSTEM(ORDINARY)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MAIN CABLE 9AYV-150100-5K02 | Skladem | 20 150,71 Kč | ||
| 1 | MAIN HARNESS 9AYV-150100-5K00 | Skladem | 21 129,50 Kč | ||
| 1 | MAIN HARNESS 9AYV-150100-5K01 | 1 | |||
| 2 | HORN 9DQV-151400-3000 | Skladem | 290,40 Kč | ||
| 3 | Šroub 30006-080016870 | Skladem | 15,54 Kč | ||
| 4 | VEHICLE CONTROL UNIT 9AYV-151900-5K00 | Skladem | 5 437,74 Kč | ||
| 5 | BUSHING, VEHICLE CONTROL UNIT 6WWV-150420-5000-10 | Skladem | 174,24 Kč | ||
| 6 | 50A FUSE 5BY0-150303 | Skladem | 62,15 Kč | ||
| 7 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 8 | 20A FUSE 806A-151306 | Skladem | 31,07 Kč | ||
| 9 | FUSE 7.5A 806A-151301 | Skladem | 15,54 Kč | ||
| 10 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 11 | 60A FUSE CFCV-150011-4500-M1 | Skladem | 62,15 Kč | ||
| 12 | AUXILIARY RELAY CFCV-150524-2000-M1 | Skladem | 124,29 Kč | ||
| 13 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 14 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 15 | 30A FUSE 806A-151308 | Skladem | 31,07 Kč | ||
| 16 | DIAGNOSIS CONNECTOR COVER CFCV-11H016-2000-M1 | Skladem | 15,54 Kč | ||
| 17 | ECM ASSY 9AYV-001000-5K00-10 | Skladem | 14 588,68 Kč | ||
| 18 | SELF-TAPPING SCREW 30110-480320700 | Skladem | 15,54 Kč | ||
| 19 | POWER OUTLET 6WWV-150500-5000-10 | Skladem | 574,85 Kč | ||
| 20 | USB OUTPUT SEAT ASSY 9AWV-151200-8000 | Skladem | 1 569,18 Kč | ||
| 21 | VR SWITCH 9NTV-169570-1200 | Skladem | 590,38 Kč | ||
| 22 | ZÁVITOVÝ ŠROUB ST4.2×13-F 30118-420130020 | Není skladem | 15,54 Kč | ||
| 23 | CUSHION HEATING ADAPTER CABLE 9AYV-150150-5K00 | Skladem | 295,19 Kč | ||
| 24 | ANGLE SENSOR 9AWV-155400-8000 | Není skladem | 3 153,89 Kč | ||
| 25 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 26 | T-BOX SN1V-691100-1200-14 | 1 | |||
| 26 | T-BOX SN1V-691100-1500-14 | 1 | |||
| 27 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 28 | PLUG, T-BOX CONNECTOR CFCV-156103-2000 | Skladem | 159,72 Kč | ||
| 29 | STARTER RELAY 9DSV-150510-5001 | Skladem | 823,43 Kč | ||
| 30 | STARTER MOTOR POSITIVE CABLE 9AWV-150310-8002 | Skladem | 978,79 Kč | ||
| 31 | STARTER MOTOR NEGATIVE CABLE 9AWV-150320-8002 | Skladem | 419,48 Kč | ||
| 32 | REGULATOR 0800-177000-30000 | Skladem | 4 303,58 Kč | ||
| 33 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 34 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 35 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 36 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 37 | BATTERY NEGATIVE CABLE 9AYV-150420-5K00 | Skladem | 466,09 Kč | ||
| 38 | SELF-TAPPING SCREW ST4.8×13 30132-480130030 | Skladem | 29,02 Kč | ||
| 39 | TAIL LIGHT ADAPTOR CABLE 9AYV-150184-5K00 | Skladem | 1 103,08 Kč | ||
| 40 | ALARM 9AWV-156800-2800-10 | Skladem | 823,43 Kč | ||
| 41 | Šroub (vrut) 30110-290095010 | Skladem | 15,54 Kč | ||
| 42 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 43 | BOLT M6x25 0010-021017-0010 | Skladem | 15,54 Kč | ||
| 44 | HIGH-TENSION CABLE 1 9AWV-003200-8000 | Skladem | 512,70 Kč | ||
| 45 | HIGH TENSION CABLE ASSY 9AWV-003300-8000 | Skladem | 481,63 Kč | ||
| 46 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 47 | CLASP 6GU#-150001-6000-M1 | Skladem | 29,04 Kč | ||
| 48 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 49 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 50 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 51 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 52 | CLIP CFCV-CBC005-2000-M1 | Skladem | 15,54 Kč | ||
| 53 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
