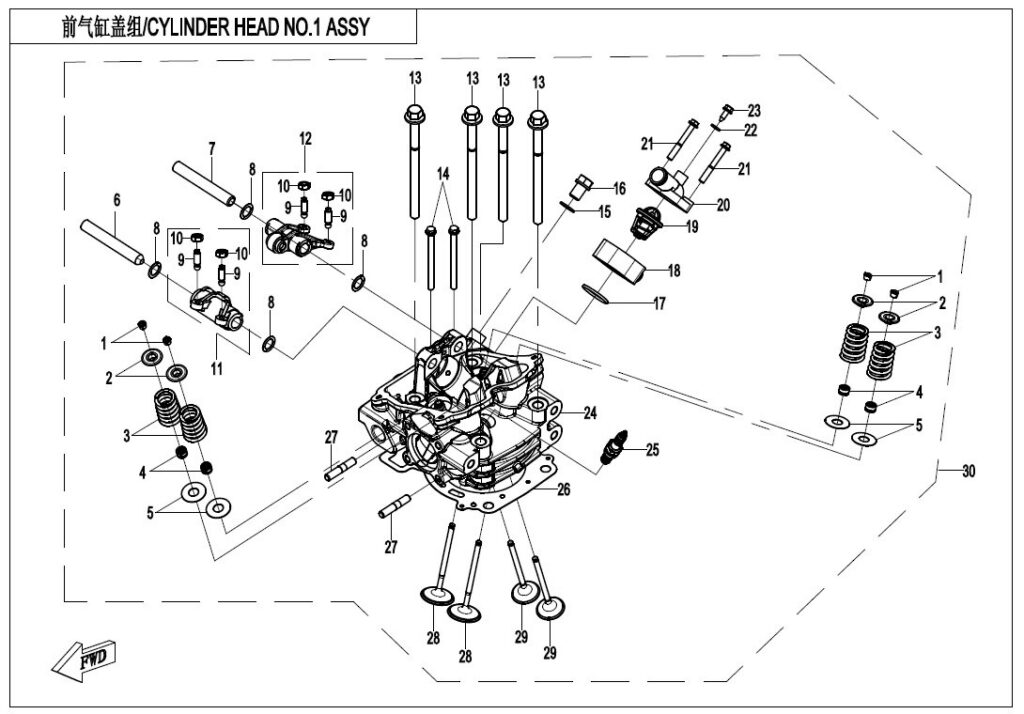

E02-2 CYLINDER HEAD NO.1 ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | LOCK CLIP, VALVE 0JYV-022016-4000 | Skladem | 15,54 Kč | ||
| 2 | UPPER SEAT, VALVE SPRING 0JYV-022007-4000 | Skladem | 77,68 Kč | ||
| 3 | VALVE SPRING 0JYV-022006-4002 | Skladem | 108,75 Kč | ||
| 4 | OIL SEAL, VALVE 0JYV-022300-4000 | Skladem | 72,60 Kč | ||
| 5 | LOWER SEAT, VALVE SPRING 0JYV-022008-4000 | Skladem | 31,07 Kč | ||
| 6 | ROCKER ARM SHAFT 0800-022001 | Skladem | 130,57 Kč | ||
| 7 | SWING ARM SHAFT, INTAKE 0JYV-022001-4000-10 | Skladem | 188,76 Kč | ||
| 8 | WASHER 12.3×18.5×0.5 0800-022002 | Skladem | 43,52 Kč | ||
| 9 | ADJUST SCREW, VALVE CLEARANCE 0800-022510 | Skladem | 62,15 Kč | ||
| 10 | ADJUST NUT,VALVE CLEARANCE 0800-022506 | Skladem | 29,02 Kč | ||
| 11 | ROCKER ARM ASSY, AIR EXHAUST 0800-022600-20000 | Skladem | 792,36 Kč | ||
| 12 | SWING ARM, INTAKE 0JYV-022500-4001 | Skladem | 792,36 Kč | ||
| 13 | BOLT, CYLINDER 0JY0-022003-00001 | Skladem | 101,64 Kč | ||
| 14 | BOLT M6x85 0060-013021-00002 | Skladem | 31,07 Kč | ||
| 15 | WASHER 12.2×18×1.5 0800-022014 | Skladem | 31,07 Kč | ||
| 16 | SCREW PLUG M12x1.5 0800-022015-00001 | Skladem | 31,07 Kč | ||
| 17 | O-Kroužek 30502-028000N | Skladem | 43,52 Kč | ||
| 18 | SEAT,THERMOSTAT 0800-022012 | Skladem | 174,09 Kč | ||
| 19 | THERMOSTAT 0800-022700 | Skladem | 372,87 Kč | ||
| 20 | THERMOSTAT CAP 0800-022013-10000 | Skladem | 145,08 Kč | ||
| 21 | BOLT M6x45 0180-013208-0010 | Skladem | 15,54 Kč | ||
| 22 | WASHER 0800-022011-00001 | Skladem | 15,54 Kč | ||
| 23 | SCREW 0JWV-022102-2000 | Skladem | 15,54 Kč | ||
| 24 | CYLINDER 1 HEAD ASSY 0JWV-022100-3100 | Skladem | 8 280,90 Kč | ||
| 24 | FRONT CYLINDER HEAD ASSY 0JWV-022100-3000 | Skladem | 10 424,92 Kč | ||
| 25 | SPARK PLUG KIT 0JWD-170200-7000 | Skladem | 517,88 Kč | ||
| 26 | GASKET, CYLINDER HEAD 0800-022200-00002 | Skladem | 357,34 Kč | ||
| 27 | STUD 0180-022003-00002 | Skladem | 15,54 Kč | ||
| 28 | EXHAUST VALVE 0JYV-022005-4000 | Není skladem | 450,56 Kč | ||
| 29 | INTAKE VALVE 0JYV-022004-4000 | Skladem | 248,58 Kč | ||
| 30 | CYLINDER 1 HEAD ASSY SH-0JWF-0221A0 | Skladem | 14 837,26 Kč | ||
| 30 | CYLINDER 1 HEAD ASSY SH-0JWF-0221C0 | Skladem | 14 837,26 Kč | ||
