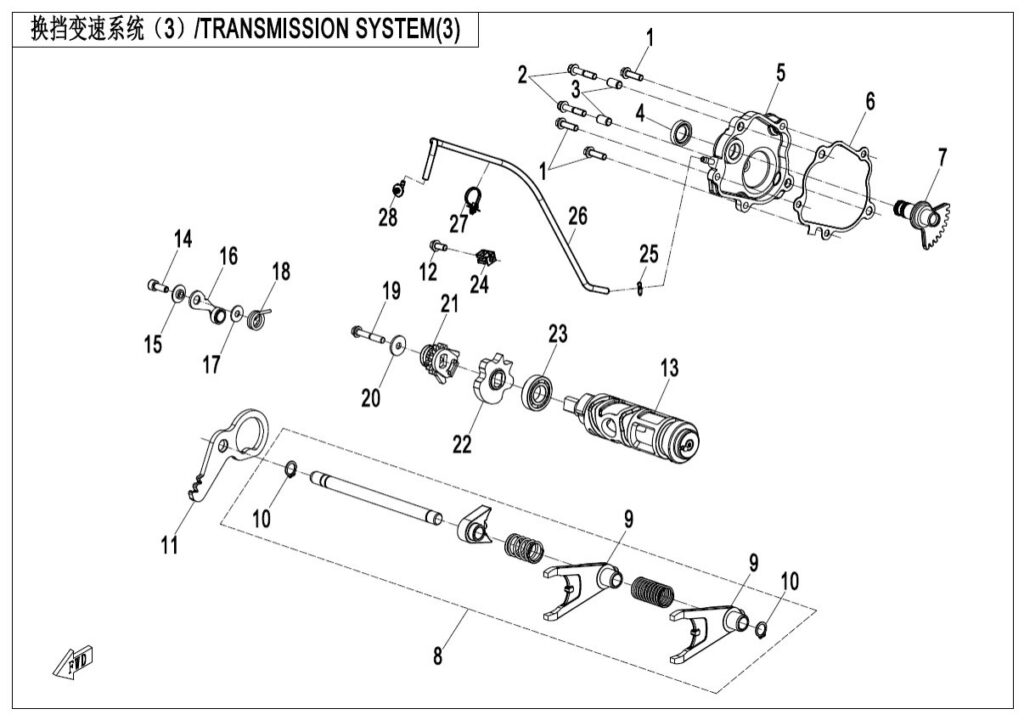

E06-3-V2 TRANSMISSION SYSTEM(3)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BOLT M6x20 0010-023010-0010 | Skladem | 15,54 Kč | ||
| 02 | Šroub 0010-070003-00002 | Skladem | 15,54 Kč | ||
| 03 | DOWEL PIN φ8×14 0010-080008 | Skladem | 15,54 Kč | ||
| 04 | OIL SEAL SD15×25×5 0180-065002 | Skladem | 43,52 Kč | ||
| 05 | COVER, GEARSHIFT 0JWV-065100-3000 | Skladem | 590,38 Kč | ||
| 06 | PAPER GASKET, SECTOR GEAR 0JWV-065003-3000 | Skladem | 77,68 Kč | ||
| 07 | DRIVE SECTOR GEAR ASSY 0GR0-065100 | Skladem | 264,12 Kč | ||
| 08 | GEARSHIFT FORK ASSY 0JWV-063000-3000 | Skladem | 1 040,94 Kč | ||
| 09 | SHIFT FORK, RH 0800-063004 | Skladem | 295,19 Kč | ||
| 10 | CIRCLIPS FOR SHAFT12 30801-01205 | Skladem | 15,54 Kč | ||
| 11 | PARKING SWING ARM 0JWV-063001-3000 | Skladem | 170,90 Kč | ||
| 12 | BOLT M6x12 0010-021019-0010 | Skladem | 15,54 Kč | ||
| 13 | SHIFT DRUM ASSY 0JWV-064000-3001 | Skladem | 1 211,84 Kč | ||
| 13 | SHIFT HUB ASSY 0JWV-064000-3002 | Skladem | 1 025,40 Kč | ||
| 14 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 15 | GEARSHIFT SWING ARM SLEEVE 0700-064003-00001 | Skladem | 139,83 Kč | ||
| 16 | POSITIONING SWING ARM ASSY 0JWV-068100-3000 | Skladem | 264,12 Kč | ||
| 17 | WASHER 6.3×16.3×1.2 0700-064001 | Skladem | 15,54 Kč | ||
| 18 | LOCATING SPRING 0JWV-068001-3000 | Skladem | 15,54 Kč | ||
| 19 | BOLT M6×35 0010-013008-0010 | Skladem | 15,54 Kč | ||
| 20 | WASHER 6.2x22x2 0180-065206-00001 | Skladem | 15,54 Kč | ||
| 21 | DRIVEN SECTOR GEAR ASSY 0GR0-065200 | Skladem | 326,26 Kč | ||
| 22 | CAM, GEARSHIFT DRUM 0JWV-060005-3000 | Skladem | 203,28 Kč | ||
| 23 | Ložisko 30400-01707 | Skladem | 130,68 Kč | ||
| 24 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 25 | CLAMP A8 30601-108010 | Skladem | 15,54 Kč | ||
| 26 | BREATHER HOSE, FRONT GEAR CASE 9010-310001 | Skladem | 62,15 Kč | ||
| 26 | FRONT GEAR CASE BREATHER HOSE 9AYV-310001-8500 | Skladem | 108,75 Kč | ||
| 27 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 28 | BREATHER HOSE CONNECTOR 9AWV-315001-8000 | Skladem | 58,08 Kč | ||
