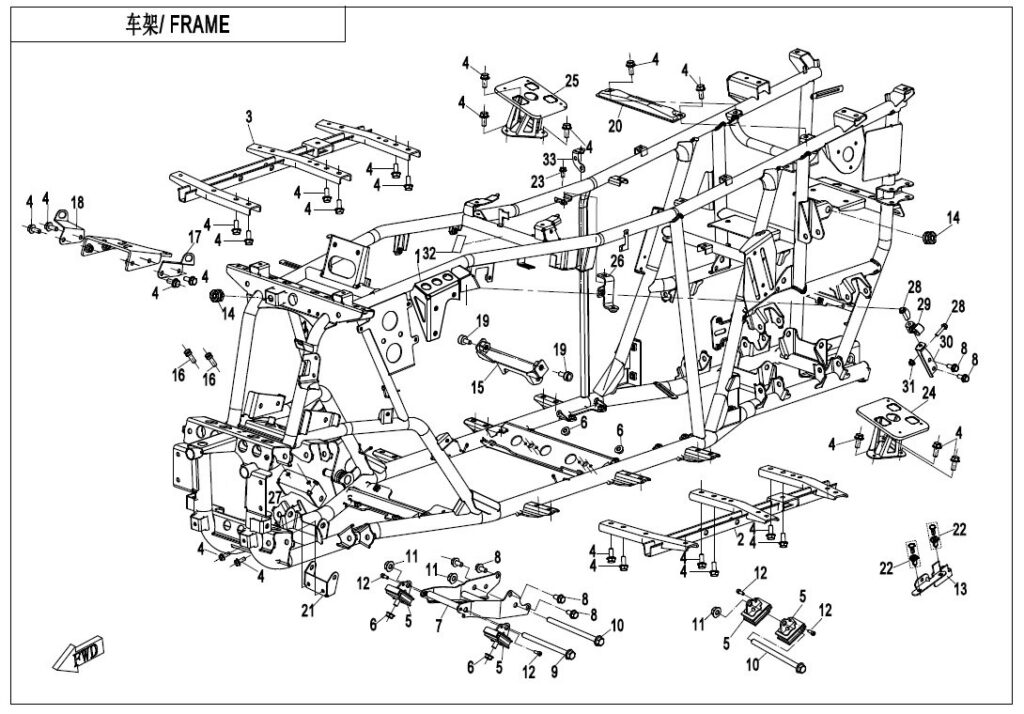

F03-V6 FRAME
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRAME ASSY 9GQL-031000-E0000 | Skladem | 27 421,75 Kč | ||
| 02 | FOOT PEDAL,LH 9GQL-039100 | Skladem | 871,20 Kč | ||
| 03 | FOOT PEDAL,RH 9GQL-039200 | Skladem | 871,20 Kč | ||
| 04 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 05 | DAMPER 401B-000200-10000 | Skladem | 310,73 Kč | ||
| 06 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 07 | FRONT BRACKET,ENGINE 9CR6-001100-20000 | Skladem | 725,40 Kč | ||
| 08 | Šroub 30006-103020810 | Skladem | 31,07 Kč | ||
| 09 | Šroub 30006-122170810 | Není skladem | 108,75 Kč | ||
| 10 | Šroub 30006-122180810 | Není skladem | 124,29 Kč | ||
| 11 | Matice 30204-122810 | Skladem | 15,54 Kč | ||
| 12 | SCREW M6x12 30102-060012810 | Skladem | 15,54 Kč | ||
| 13 | BRACKET COMP., ECU 9GQA-030020 | Skladem | 108,90 Kč | ||
| 14 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 15 | UPPER LINK SEAT,REAR AXLE 9GQ0-030070-10000 | Skladem | 233,05 Kč | ||
| 16 | Šroub (vrut) 30102-080020110 | Skladem | 31,07 Kč | ||
| 17 | BRACKET,INNER FENDER(LH) 9GQ0-030004 | Skladem | 77,68 Kč | ||
| 18 | BRACKET,INNER FENDER(RH) 9GQ0-030005 | Skladem | 77,68 Kč | ||
| 19 | Šroub (vrut) 30102-102020810 | Skladem | 31,07 Kč | ||
| 20 | FIXING BRACKET,SEAT 9GQ0-030010-10000 | Skladem | 174,24 Kč | ||
| 21 | UPPER MOUNTING SEAT,REAR AXLE 9GQ0-030110 | Skladem | 124,29 Kč | ||
| 22 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 23 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 24 | LH BRACKET,FOOT PEDAL 9GQL-039300 | Skladem | 813,12 Kč | ||
| 25 | RH BRACKET,FOOT PEDAL 9GQL-039400 | Skladem | 813,12 Kč | ||
| 26 | BRACKET, AIR FILTER 9GQV-030080-1400 | Skladem | 62,15 Kč | ||
| 27 | UPPER CONNECTING PLATE BRACKET, FRONT AXLE 9GQ0-030050-10000 | Skladem | 261,14 Kč | ||
| 28 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 29 | CONNECTING PARTS, ENGINE UPPER BRACKET 7020-000160 | Skladem | 290,16 Kč | ||
| 30 | SIDE SUPPORT ASSY 9DR7-030120 | 1 | |||
| 31 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 32 | GLUE FILM, REAR FORK 6NQ0-190005 | Skladem | 62,15 Kč | ||
| 33 | LOCK PLATE, WIRE 9GQ0-030131 | Skladem | 46,61 Kč | ||
