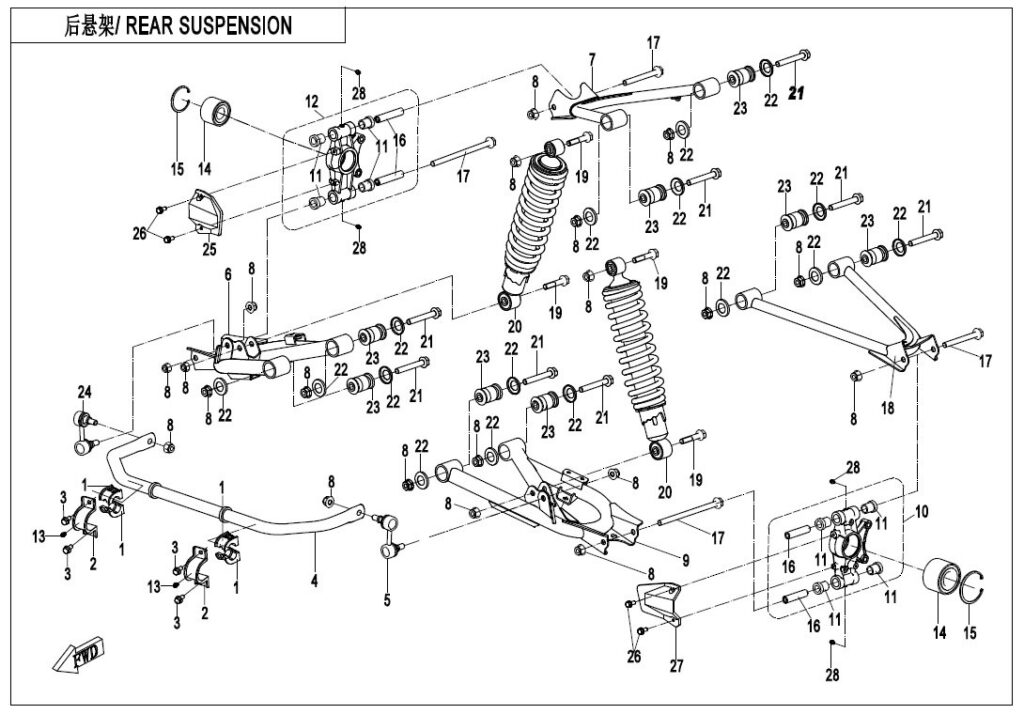

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SUPPORT, STABILIZER BAR 9GQ0-060003 | Skladem | 87,05 Kč | ||
| 02 | COVER, STABILIZER BAR 9GQ0-060601-00001 | Skladem | 62,15 Kč | ||
| 03 | Šroub 30006-080012810 | Skladem | 15,54 Kč | ||
| 04 | REAR SWAY BAR ASSY 9GQ0-060610-10000 | Skladem | 1 258,45 Kč | ||
| 05 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 06 | REAR RH LOWER SWING ARM ASSY 9GQ0-060410-0BP02 | Skladem | 1 522,57 Kč | ||
| 07 | REAR RH UPPER SWING ARM ASSY 9GQ0-060310-0BP00 | Skladem | 807,89 Kč | ||
| 08 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 09 | REAR LH LOWER SWING ARM ASSY 9GQ0-060210-0BP02 | Skladem | 1 522,57 Kč | ||
| 10 | SUPPORT, REAR WHEEL SHAFT(LH) 7020-0607A0 | Skladem | 3 060,67 Kč | ||
| 11 | SHORT BUSH，SWING ARM 9060-050003 | Skladem | 145,08 Kč | ||
| 12 | SUPPORT, REAR WHEEL SHAFT(RH) 7020-0608A0 | Skladem | 3 060,67 Kč | ||
| 13 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 14 | BEARING, HUB 9GQ0-050710 | Skladem | 683,60 Kč | ||
| 15 | CIRCLIP FOR HOLE 55 30800-05505 | Skladem | 31,07 Kč | ||
| 16 | MIDDLE SPACER, REAR BEARING CARRIER 7020-060702-00001 | Skladem | 101,56 Kč | ||
| 17 | Šroub 30006-102100810 | Skladem | 72,54 Kč | ||
| 18 | REAR LH UPPER SWING ARM ASSY 9GQ0-060110-0BP00 | Skladem | 807,89 Kč | ||
| 19 | Šroub 30006-102055810 | Skladem | 58,03 Kč | ||
| 20 | Zadní tlumič 9GQ0-060500 | Skladem | 2 718,87 Kč | ||
| 21 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 22 | CAP, CUSHION SLEEVE 9010-050003 | Skladem | 31,07 Kč | ||
| 23 | CUSHION SLEEVE 9010-050500 | Skladem | 116,06 Kč | ||
| 24 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 25 | REAR SUSPENSION PLATE,RH 9GQ0-044046 | Skladem | 145,08 Kč | ||
| 26 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 27 | LEFT FENDER, REAR SUSPENSION 9GQ0-044045 | Skladem | 145,08 Kč | ||
| 28 | GREASE NOZZLE 3121400 | Skladem | 31,07 Kč | ||
