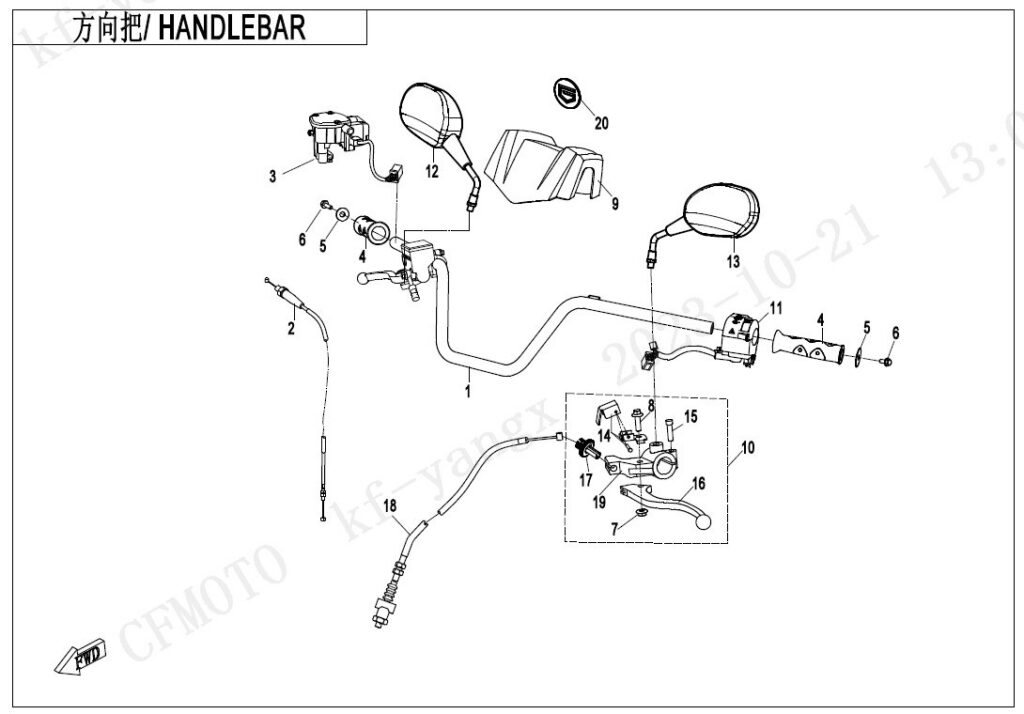

F10-1 HANDLEBAR
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | HANDLEBAR ASSY 9CR6-101100-1BU00 | Skladem | 1 507,03 Kč | ||
| 02 | THROTTLE CABLE 9GQ0-105000 | Skladem | 203,11 Kč | ||
| 03 | HANDLEBAR SWITCH ASSY, RH 9GQV-167000-9101 | 1 | |||
| 03 | RH HANDLEBAR SWITCH ASSY 9GQV-167000-9100 | Skladem | 1 320,59 Kč | ||
| 04 | HAND GRIP, LH 8060-100001 | Skladem | 246,63 Kč | ||
| 05 | RUBBER CUSHION，MUFFLER 9010-020187 | Skladem | 15,54 Kč | ||
| 06 | SCREW M8x20 30121-080020870 | Skladem | 15,54 Kč | ||
| 07 | NUT M6 30204-060870 | Skladem | 29,02 Kč | ||
| 08 | PIN SHAFT 9010-080255 | Skladem | 62,15 Kč | ||
| 09 | TOP COVER,HANDLEBAR 9CR6-101001 | Skladem | 108,75 Kč | ||
| 10 | PARKING LEVER, REAR BRAKE 9CRV-080200-2400 | Skladem | 916,65 Kč | ||
| 11 | HANDLEBAR SWITCH ASSY, LH 9GQS-160600-00001 | Skladem | 1 273,98 Kč | ||
| 12 | REAR VIEW MIRROR, RH 9GQV-200200-9100 | Skladem | 264,12 Kč | ||
| 13 | REAR VIEW MIRROR, LH 9GQV-200100-9100 | Skladem | 264,12 Kč | ||
| 14 | PARKING CLIP ASSY 9CR6-080210 | Skladem | 232,32 Kč | ||
| 15 | BOLT M6x22 9CR6-080203 | Skladem | 29,02 Kč | ||
| 16 | PARKING LEVER,REAR BRAKE 9CR6-080201 | Skladem | 124,29 Kč | ||
| 17 | ADJUSTING NUT 9010-080253 | Skladem | 31,07 Kč | ||
| 18 | PARKING CABLE,REAR BRAKE 9GQL-080300 | Skladem | 362,70 Kč | ||
| 19 | SEAT, LEVER 9CRV-080202-2400-20 | Skladem | 295,19 Kč | ||
| 20 | LABEL 9GQV-190001-9100 | Skladem | 248,58 Kč | ||
