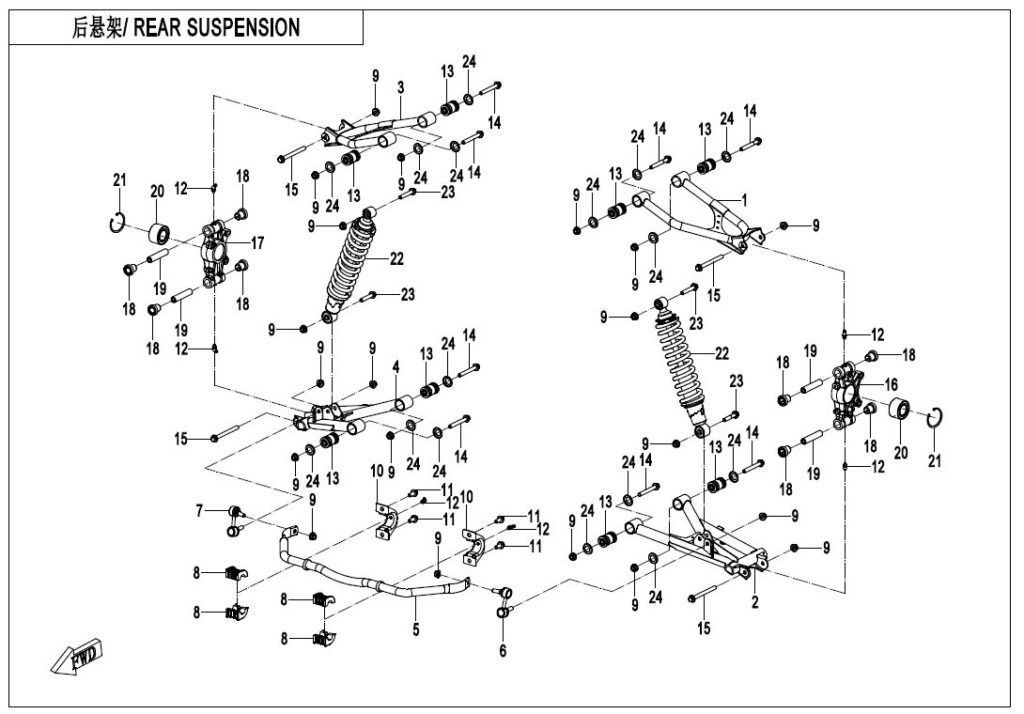

F06 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | REAR LH UPPER SWING ARM ASSY 9DQV-060110-1100-0BP00 | Skladem | 1 056,48 Kč | ||
| 2 | REAR LH LOWER SWING ARM ASSY 9DQV-060210-1100-0BP00 | Skladem | 2 190,63 Kč | ||
| 3 | REAR RH UPPER SWING ARM ASSY 9DQV-060310-1100-0BP00 | Skladem | 1 056,48 Kč | ||
| 4 | REAR RH LOWER SWING ARM ASSY 9DQV-060410-1100-0BP00 | Skladem | 2 190,63 Kč | ||
| 5 | REAR SWAY BAR ASSY 9DQV-060610-1101 | Skladem | 1 320,59 Kč | ||
| 6 | LH BALL PIN ASSY 9DQV-060700-3000-M2 | Není skladem | 699,14 Kč | ||
| 7 | RH BALL PIN ASSY 9DQV-060800-3000-M2 | Není skladem | 699,14 Kč | ||
| 8 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 9 | Matice 30204-102110 | Skladem | 15,54 Kč | ||
| 10 | SWAY BAR PRESS COVER 5GYV-050620-1001 | Skladem | 139,83 Kč | ||
| 11 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 12 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 13 | DAMPING SLEEVE ASSY 9DQV-050900-3000 | Skladem | 130,68 Kč | ||
| 14 | BOLT M10x1.25×75 30006-102075810 | Skladem | 62,15 Kč | ||
| 15 | BOLT 30006-102105110 | Skladem | 46,61 Kč | ||
| 16 | SUPPORT, RESR WHEEL SHAFT(LH) 7020-060701 | Skladem | 3 060,67 Kč | ||
| 17 | BRACKET, REAR WHEEL SHAFT(RH) 7020-060801 | Skladem | 3 060,67 Kč | ||
| 18 | SHORT BUSHING 5ASV-050002-6001 | Skladem | 130,68 Kč | ||
| 19 | MIDDLE SPACER, REAR BEARING CARRIER 7020-060702-00001 | Skladem | 101,56 Kč | ||
| 20 | BEARING, HUB 9GQ0-050710 | Skladem | 683,60 Kč | ||
| 21 | CIRCLIP FOR HOLE 55 30800-05505 | Skladem | 31,07 Kč | ||
| 22 | REAR SHOCK ABSORBER ASSY 9CRV-060500-1300-0YD00 | Skladem | 3 821,95 Kč | ||
| 23 | Šroub 30006-102055810 | Skladem | 58,03 Kč | ||
| 24 | CAP, CUSHION SLEEVE 9DSV-050900-6K00 | Není skladem | 31,07 Kč | ||
