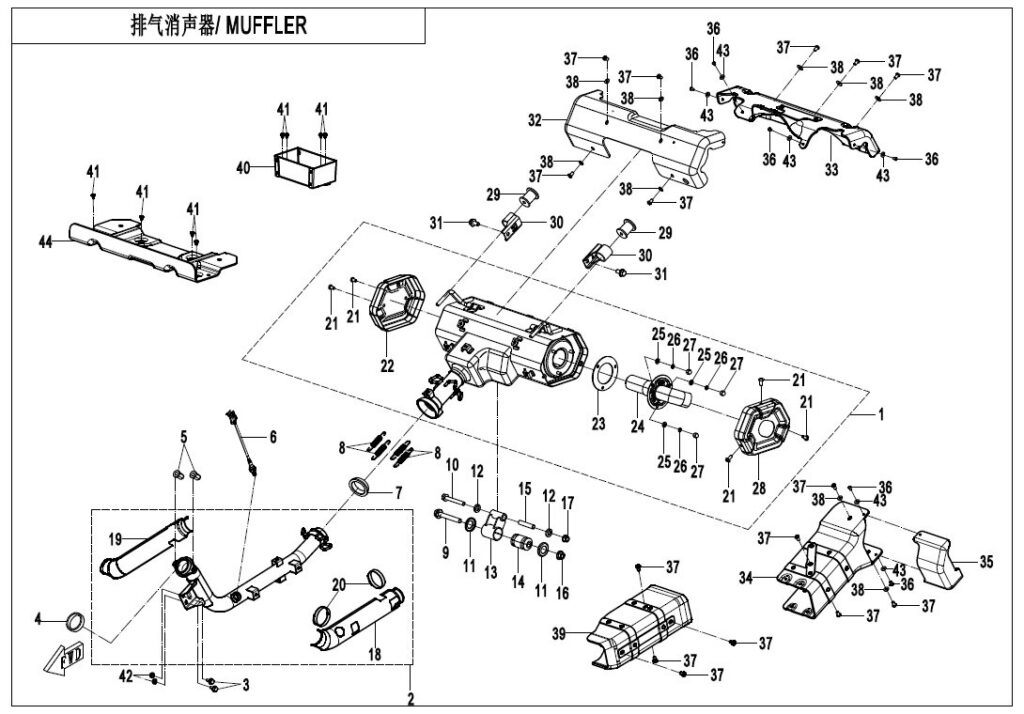

F02 MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | MUFFLER ASSY 9DQV-021200-1102 | Skladem | 13 376,84 Kč | ||
| 2 | EXHAUST PIPE ASSY 9CRV-021100-1301 | 1 | |||
| 3 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 4 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 5 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 6 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 7 | SMALL GRAPHITE RING 9AWA-021003-00002 | Skladem | 155,36 Kč | ||
| 8 | DRAG SPRING,MUFFLER 9CR6-020002-00001 | Skladem | 77,68 Kč | ||
| 9 | Šroub 30006-102070810 | Skladem | 31,07 Kč | ||
| 10 | Šroub 30006-080065810 | Skladem | 31,07 Kč | ||
| 11 | CAP, CUSHION SLEEVE 9010-050003 | Skladem | 31,07 Kč | ||
| 12 | WIRE WASHER 9CR6-020003 | Skladem | 46,61 Kč | ||
| 13 | MUFFLER MOUNT ASSY 9CR6-020020-00001 | Skladem | 124,29 Kč | ||
| 14 | CUSHION SLEEVE ASSY 5BY0-020030-00001 | Skladem | 497,16 Kč | ||
| 15 | LINER, MUFFLER 7020-020001 | Skladem | 62,15 Kč | ||
| 16 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 17 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 18 | EXHAUST PIPE LH PANEL 9CRV-021102-1301 | Skladem | 388,41 Kč | ||
| 19 | EXHAUST PIPE RH PANEL 9CRV-021101-1301 | Skladem | 388,41 Kč | ||
| 20 | SCREW CLAMP，A-TYPE 7030-021305 | Skladem | 108,75 Kč | ||
| 21 | BOLT M6x12 30006-060012870 | Skladem | 15,54 Kč | ||
| 22 | RH DECO COVER 9DQV-021206-1100 | Skladem | 2 081,88 Kč | ||
| 23 | SEAL GASKET,GRAPHITE 9DS#-021001-6000 | Skladem | 201,97 Kč | ||
| 24 | SPAPK ARRESTOR 9GQ0-021320 | Skladem | 362,70 Kč | ||
| 25 | WASHER 6 30306-060800 | Skladem | 31,07 Kč | ||
| 26 | Podložka 30303-060900 | Skladem | 15,54 Kč | ||
| 27 | Matice 30220-060810 | Skladem | 15,54 Kč | ||
| 28 | LH DECO COVER 9DQV-021205-1100 | Skladem | 2 081,88 Kč | ||
| 29 | RUBBER BUSH,MUFFLER 9GQ0-020002 | Skladem | 62,15 Kč | ||
| 30 | MUFFLER UPPER BRACKET 9DQV-032007-1100 | Skladem | 139,83 Kč | ||
| 31 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 32 | MUFFLER BODY HEAT INSULATOR GUARD 2 9DQV-021340-1100 | Skladem | 512,70 Kč | ||
| 33 | MUFFLER BODY HEAT INSULATOR 9DRV-021320-1100 | 1 | |||
| 34 | EXHAUST PIPE HEAT INSULATOR ASSY 1 9CRV-021130-1301 | Skladem | 730,21 Kč | ||
| 35 | EXHAUST HEAT INSULATION GUARD 1 9DQV-021120-1100 | Skladem | 217,51 Kč | ||
| 36 | BLIND RIVET 30902-0401200 | 6 | |||
| 37 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 38 | Podložka 30309-060900 | Skladem | 15,54 Kč | ||
| 39 | EXHAUST PIPE HEAT INSULATOR ASSY 2 9CRV-021140-1301 | 1 | |||
| 40 | BATTERY BOX HEAT INSULATOR 9DRV-021360-1100 | 1 | |||
| 41 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 42 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 43 | Podložka 30305-040112 | Skladem | 15,54 Kč | ||
| 44 | REAR STORAGE BOX HEAT INSULATOR GUARD 9DRV-021340-1101 | 1 | |||
