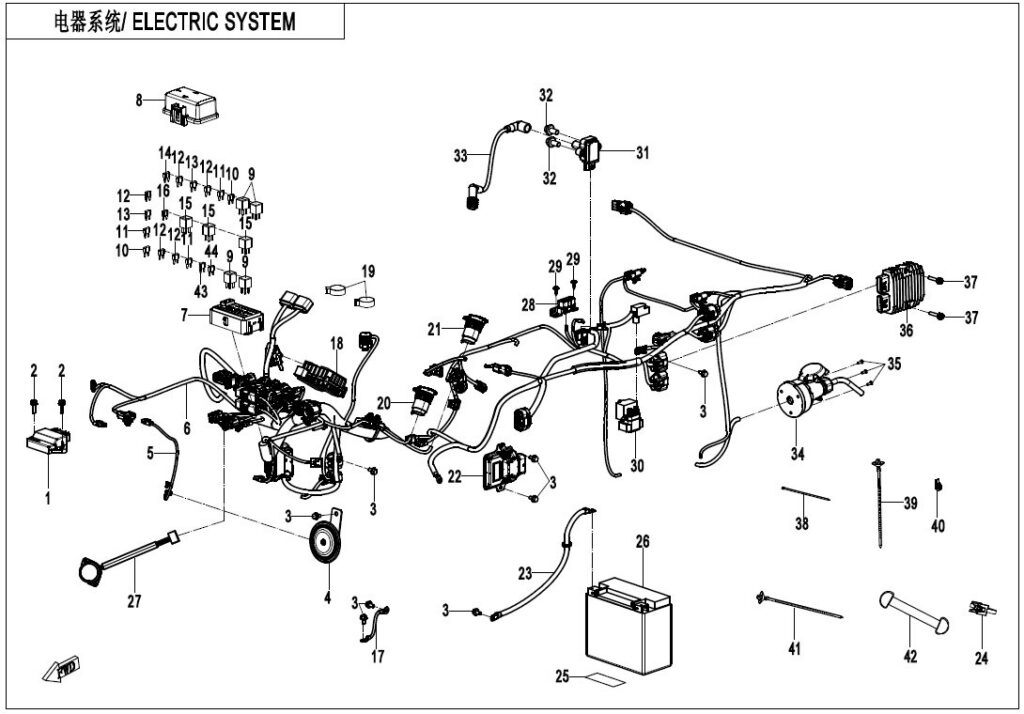

F15-1 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | FLASHER 9DRV-161000-1100 | Skladem | 1 336,13 Kč | ||
| 2 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 3 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 4 | ELECTRIC HORN 5020-150700 | Skladem | 290,16 Kč | ||
| 5 | HORN ADAPTER CABLE 5HYV-150191-2F00 | Skladem | 77,68 Kč | ||
| 6 | MAIN CABLE 9CRV-150100-1203 | Skladem | 18 053,30 Kč | ||
| 7 | FUSE BOX CFCV-156432-2000-M1 | Skladem | 1 538,10 Kč | ||
| 8 | UPPER COVER, FUSE BOX CFCV-156431-2000-M1 | Skladem | 279,66 Kč | ||
| 9 | AUXILIARY RELAY CFCV-150525-2000-M1 | Skladem | 145,20 Kč | ||
| 10 | 25A FUSE 806A-151307 | Skladem | 15,54 Kč | ||
| 11 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 12 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 13 | FUSE 7.5A 806A-151301 | Skladem | 15,54 Kč | ||
| 14 | 30A FUSE 5BY0-150301 | Skladem | 31,07 Kč | ||
| 15 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 16 | 40A FUSE 5BY0-150302 | Skladem | 31,07 Kč | ||
| 17 | MASS CABLE STARTER-FRAME 9DQV-150320-1100 | Skladem | 217,51 Kč | ||
| 18 | Jednotka T-BOX SN1V-691100-1401-11 | Skladem | 6 943,23 Kč | ||
| 18 | Jednotka T-BOX SN1V-691100-1501-11 | 1 | |||
| 18 | Jednotka T-BOX SN1V-691100-1201-11 | Skladem | 6 943,23 Kč | ||
| 19 | T-BOX RUBBER RING 6KMV-150901-B002 | Skladem | 31,07 Kč | ||
| 20 | USB OUTPUT SOCKET ASSY 9DQV-151200-1101 | Skladem | 574,85 Kč | ||
| 21 | POWER OUTLET SOCKET ASSY 9DQV-150500-1101 | Skladem | 543,77 Kč | ||
| 22 | ECM ASSY 9DRV-001000-1600 | Skladem | 7 939,10 Kč | ||
| 23 | BATTERY NEGATIVE CABLE 9CRV-150420-1301 | Skladem | 279,66 Kč | ||
| 24 | TIE BAND ZDG4.7×194 9DS#-150009-6100-M1 | Skladem | 31,07 Kč | ||
| 25 | SPONGE, FRONT TOP COVER 4020-040402 | Skladem | 15,54 Kč | ||
| 26 | BATTERY 31022000 | 1 | |||
| 27 | ALARM 9AWV-156800-2800 | Skladem | 823,43 Kč | ||
| 28 | CAP, DIAGNOSIS CONNECTOR 5BY0-150305 | Skladem | 77,68 Kč | ||
| 29 | INNER HEX SLEF-TAPPING SCREW ST4.8×16 5BWV-040016-5000 | Skladem | 15,54 Kč | ||
| 30 | STARTER RELAY 9DQV-150310-1102 | Skladem | 528,24 Kč | ||
| 31 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 32 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 33 | HIGH-TENSION CABLE ASSY 0GRV-178000-5000 | Skladem | 419,48 Kč | ||
| 34 | TRAILER POWER SOCKET 9DQV-151300-3100-10 | Skladem | 1 040,94 Kč | ||
| 35 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 36 | REGULATOR 9DQV-151000-3000 | Skladem | 4 272,51 Kč | ||
| 37 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 38 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 39 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 40 | CLASP 6GU#-150001-6000-M1 | Skladem | 29,04 Kč | ||
| 41 | TIE BAND 5ASV-150009-6000-M1 | Skladem | 15,54 Kč | ||
| 42 | TIE BAND ASSY 8010-000012 | Skladem | 62,15 Kč | ||
| 43 | 20A FUSE 806A-151306 | Skladem | 31,07 Kč | ||
| 44 | 30A FUSE 806A-151308 | Skladem | 31,07 Kč | ||
