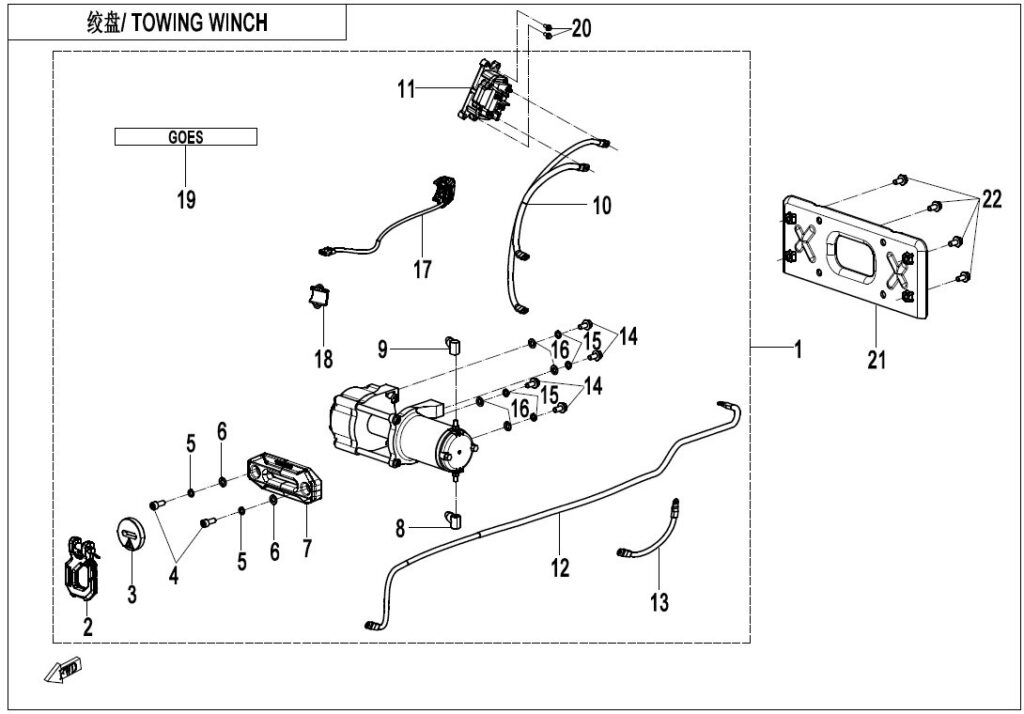

F15-2-B-V2 TOWING WINCH(NYLON ROPE)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | WINCH ASSY 9DRV-150700-1402 | 1 | |||
| 2 | WINCH HOOK 9AYV-150702-5K00 | Skladem | 636,99 Kč | ||
| 3 | WINCH RUBBER DAMPER 5BYV-150703-6000 | Skladem | 62,15 Kč | ||
| 4 | INNER HEX SCREW 30102-102030870 | Skladem | 31,07 Kč | ||
| 5 | SPRING WASHER 9AWV-150700-8000-21 | Skladem | 15,54 Kč | ||
| 6 | PLAIN WASHER 9AWV-150700-8000-22 | Skladem | 15,54 Kč | ||
| 7 | ALUMINUM CABLE GUIDE BRACKET 9AYV-150701-5K00 | Skladem | 838,97 Kč | ||
| 8 | WINCH MOTOR POSITIVE DUST SLEEVE 9DQV-150700-3000-20 | Skladem | 15,54 Kč | ||
| 9 | WINCH MOTOR NEGATIVE DUST SLEEVE 9DQV-150700-3000-21 | Skladem | 15,54 Kč | ||
| 10 | WINCH MOTOR CABLE 9DQV-150760-1100 | Skladem | 714,67 Kč | ||
| 11 | WINCH CONTROL RELAY 5HYV-150720-1C00 | Skladem | 2 050,80 Kč | ||
| 12 | WINCH POSITIVE CABLE 9DQV-150770-1100 | Skladem | 885,57 Kč | ||
| 13 | WINCH NEGATIVE CABLE 9DQV-150780-1100 | Skladem | 217,51 Kč | ||
| 14 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 15 | Podložka 30303-080112 | Skladem | 15,54 Kč | ||
| 16 | Podložka 30304-080420 | Skladem | 15,54 Kč | ||
| 17 | WINCH CONTROL SWITCH 9DQV-150730-1100 | Skladem | 885,57 Kč | ||
| 18 | HAND BRAKE MASTER CYLINDER PRESS CAP 9DQV-150704-1102 | Skladem | |||
| 19 | WINCH STRAP 9DRV-150710-1100-20 | Skladem | 93,22 Kč | ||
| 20 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 21 | WINCH BRACKET 9DRV-402100-1102 | 1 | |||
| 22 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
