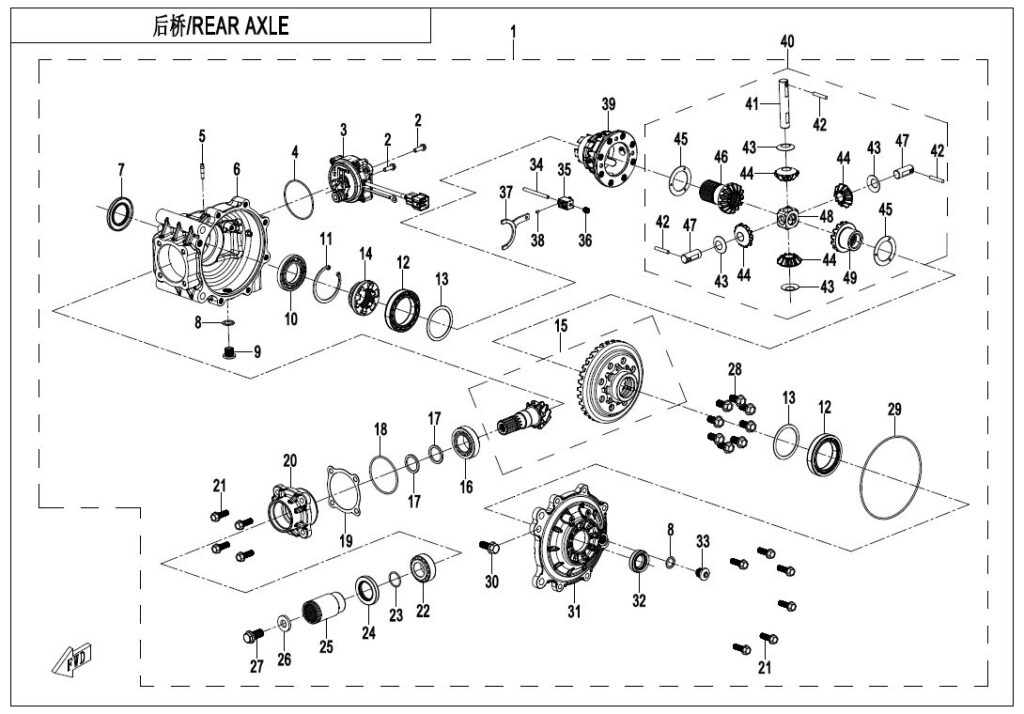

F33-B REAR AXLE(WITH DIFFERENTIAL)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR GEAR CASE ASSY Q821-330000-00001 | Skladem | 26 815,83 Kč | ||
| 02 | BOLT M6×18 0010-023008 | Skladem | 15,54 Kč | ||
| 03 | FRONT GEAR CASE MOTOR ASSY Q890-314000-10000 | Skladem | 3 697,66 Kč | ||
| 04 | O-RING 67.5*2 Q830-310012-10000 | Skladem | 62,15 Kč | ||
| 05 | BREATHER CONNECTOR 0180-311004 | Skladem | 15,54 Kč | ||
| 06 | REAR GEAR CASE Q821-330001 | Skladem | 3 386,94 Kč | ||
| 07 | OIL SEAL 35×58×5 0120-061000 | Skladem | 108,75 Kč | ||
| 08 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 09 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 10 | BEARING JQ82-330002-1000 | Skladem | |||
| 11 | RETAINER 62 30800-06200 | Skladem | 31,07 Kč | ||
| 12 | BEARING 30400-05082 | Skladem | 699,14 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00100 | Skladem | 31,07 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00200 | Skladem | 31,07 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00300 | Skladem | 31,07 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00400 | Skladem | 46,61 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00500 | Skladem | 46,61 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00600 | Skladem | 46,61 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00700 | Skladem | 46,61 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00800 | Skladem | 46,61 Kč | ||
| 13 | ADJUSTING WASHER 61*50.5 Q820-330003-00900 | Skladem | 46,61 Kč | ||
| 14 | RECTANGLUAR SLEEVE Q820-330006 | Skladem | 341,80 Kč | ||
| 15 | REAR ALXE BEVEL GEAR ASSY SH-Q821-3300A0 | Skladem | 5 189,16 Kč | ||
| 16 | Ložisko 30409-03000 | Skladem | 481,63 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00100 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00200 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00300 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00400 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00500 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00600 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00700 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00800 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-00900 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-01000 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-01100 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-01200 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-01300 | Skladem | 31,07 Kč | ||
| 17 | ADJUSTING WASHER 32×25.4 Q830-311003-00001-01400 | Skladem | 31,07 Kč | ||
| 18 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 19 | ADJUSTING WASHER Q830-310023-00100 | Skladem | 46,61 Kč | ||
| 19 | ADJUSTING WASHER Q830-310023-00200 | Skladem | 46,61 Kč | ||
| 20 | BEARING SEAT Q830-311002 | Skladem | 512,70 Kč | ||
| 21 | BOLT 0110-060011 | Skladem | 15,54 Kč | ||
| 22 | Ložisko 30409-02500 | Skladem | 543,77 Kč | ||
| 23 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 24 | OIL SEAL 35×50×7 Q860-330011 | Skladem | |||
| 25 | REAR GEAR CASE DRIVE SLEEVE 9CR6-300201-20000 | Skladem | |||
| 26 | WHASHER 0180-331008-00001 | Skladem | 46,61 Kč | ||
| 27 | Šroub Q860-331002 | Skladem | 31,07 Kč | ||
| 28 | BOLT M10×1.25×22 0181-313100 | Skladem | 31,07 Kč | ||
| 29 | O-RING φ141×2.4 0180-310005 | Skladem | 43,52 Kč | ||
| 30 | BOLT M10×1.25×25 0180-330004 | Není skladem | 31,07 Kč | ||
| 31 | REAR GEAR CASE COVER Q821-330002 | Skladem | 1 118,62 Kč | ||
| 32 | OIL SEAL 24×38×8 Q892-310003-00001 | Skladem | |||
| 33 | BOLT M14×1.25×12 0180-021008 | Není skladem | 31,07 Kč | ||
| 34 | PIN SHAFT Q820-330004 | Skladem | 31,07 Kč | ||
| 35 | BLOCK ASSY. Q890-310010 | Skladem | 668,07 Kč | ||
| 36 | Šroub (vrut) 30107-060010410 | Není skladem | 15,54 Kč | ||
| 37 | FORK Q821-330005 | Skladem | 46,61 Kč | ||
| 38 | PIN SHAFT 30913-0300550 | Skladem | 15,54 Kč | ||
| 39 | FRONT DIFFERENTIAL CASE Q820-333002 | Skladem | 1 817,76 Kč | ||
| 40 | DIFFERENTIAL ASSY SH-Q821-3330A0 | Skladem | 3 153,89 Kč | ||
| 41 | PLANET GEAR AXLE Q820-333006 | Skladem | 170,90 Kč | ||
| 42 | PIN 30906-0503000 | Skladem | 29,02 Kč | ||
| 43 | WEARING RING 0181-313011 | Skladem | 31,07 Kč | ||
| 44 | GEAR(CENTER), DIFFERENTIAL 0180-313003 | Skladem | 233,05 Kč | ||
| 45 | GASKET,SEMIAXIS GEAR Q820-333003-00100 | Skladem | 46,61 Kč | ||
| 45 | GASKET,SEMIAXIS GEAR Q820-333003-00200 | Skladem | 46,61 Kč | ||
| 46 | GEAR, LH SHAFT Q820-333001 | Skladem | 1 180,77 Kč | ||
| 47 | PLANT GEAR SHAFT,SHORT Q820-333005 | Skladem | 108,75 Kč | ||
| 48 | CROSS BUSHING Q820-333008 | Skladem | 295,19 Kč | ||
| 49 | SHAFT GEAR, RH Q820-333007 | Skladem | 807,89 Kč | ||
