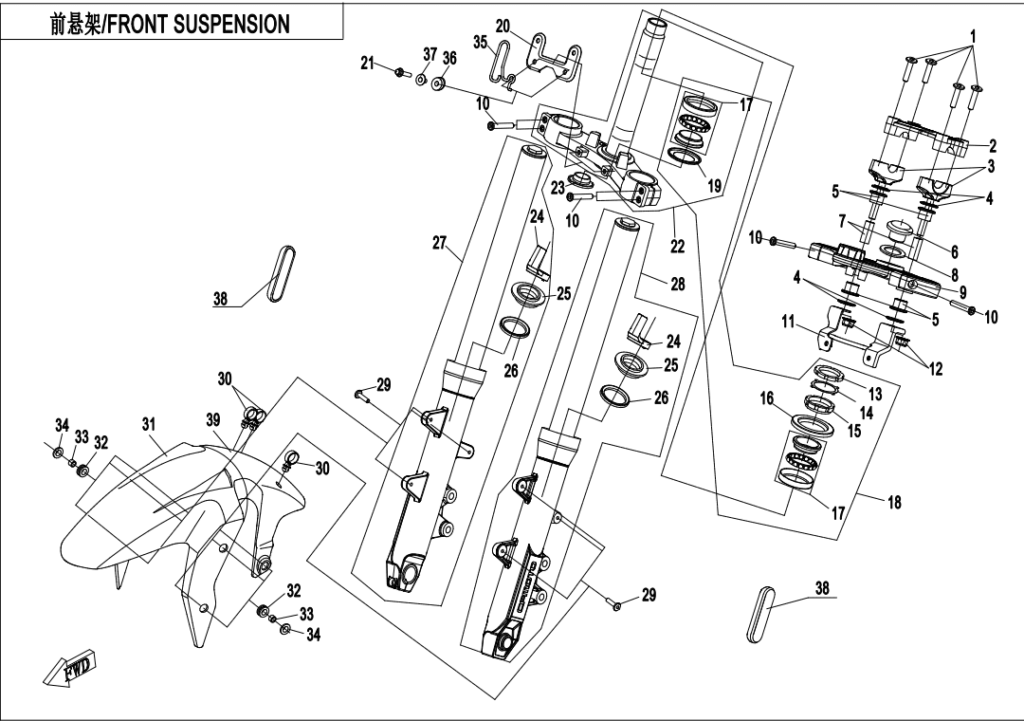

F05-V2 FRONT SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SCREW M8x40 30102-080040810 | Skladem | 15,54 Kč | ||
| 02 | HANDLEBAR COVER 6NQ0-050002-1B200 | Skladem | 357,34 Kč | ||
| 03 | HANDLEBAR SUPPORT 6NQ0-050090-1B200 | Skladem | 435,02 Kč | ||
| 04 | Podložka 6KJ0-050005 | Skladem | 31,07 Kč | ||
| 05 | DAMPER RUBBER, UPPER TRIPLE CLAMP 6KJ0-050004 | Skladem | 31,07 Kč | ||
| 06 | FIXING SCREW, UPPER TRIPLE CLAMP 6NTA-050003 | Skladem | 232,13 Kč | ||
| 07 | LINER, UPPER CONNECTING PLATE 6KJ0-050006-00001 | Skladem | 31,07 Kč | ||
| 08 | Podložka A000-050004 | Skladem | 15,54 Kč | ||
| 09 | UPPER TRIPLE CLAMP 6NQ0-050001-0B200 | Skladem | 2 905,31 Kč | ||
| 10 | INNER HEX SCREW A000-050018 | Skladem | 46,61 Kč | ||
| 11 | UPPER BRACKET, HEADLIGHT 6NQ#-030100-2600 | Skladem | |||
| 11 | UPPER BRACKET, HEADLIGHT 6NQ#-030100-2601 | Skladem | |||
| 12 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 13 | LOCK NUT 1 A000-050006 | Skladem | 93,22 Kč | ||
| 14 | Podložka A000-050008 | Skladem | 15,54 Kč | ||
| 15 | LOCK NUT 2 A000-050007 | Skladem | 108,75 Kč | ||
| 16 | DUST CAP, UPPER RETAINER A000-050009 | Skladem | 31,07 Kč | ||
| 17 | STEERING BEARING ASSY A000-050100-10000 | Skladem | 419,48 Kč | ||
| 17 | STEERING BEARING ASSY A000-050100 | Skladem | 419,48 Kč | ||
| 18 | STEERING BEARING ASSY A000-0501B0 | Skladem | 1 134,16 Kč | ||
| 18 | STEERING BEARING ASSY. A000-0501A0 | Skladem | 1 134,16 Kč | ||
| 19 | ANTI-DUST CAP, LOWER RETAINING RING A000-050400 | Skladem | 62,15 Kč | ||
| 20 | LOWER BRACKET ASSY., HEADLIGHT 6NQ0-050100-10000 | Skladem | |||
| 21 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 22 | LOWER TRIPLE CLAMP A000-0503A0 | Skladem | 3 153,89 Kč | ||
| 23 | RUBBER PLUG 2 A000-050011 | Skladem | 46,61 Kč | ||
| 24 | GUARD, FRONT SHOCK ABSORBER 6NQ0-050501 | Skladem | |||
| 25 | DUST COVER, FRONT SHOCK ABSORBER 6NQ0-050510 | Skladem | 304,67 Kč | ||
| 26 | OIL SEAL, FRONT SHOCK ABSORBER 6NQ0-050520 | Skladem | 377,21 Kč | ||
| 27 | FRONT RH SHOCK ABSORBER 6NQV-050600-2000-M1 | Skladem | 4 893,97 Kč | ||
| 27 | FRONT SHOCK ABSORBER,RH 6NQ0-050600-0B200 | Skladem | 4 893,97 Kč | ||
| 28 | FRONT LH SHOCK ABSORBER 6NQV-050500-2000-M1 | Skladem | 4 893,97 Kč | ||
| 28 | FRONT SHOCK ABSORBER,LH 6NQ0-050500-0B200 | Skladem | 4 893,97 Kč | ||
| 29 | INNER HEX SCREW M6x20 A000-040703 | Skladem | 31,07 Kč | ||
| 30 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 31 | FRONT PART, FRONT FENDER 6NQ#-050009-2601-0EK00 | Skladem | |||
| 31 | FRONT PART, FRONT FENDER 6NQ#-050009-2601-0VE00 | Skladem | |||
| 31 | FRONT PART, FRONT FENDER 6NQ#-050009-2601-0VF00 | Skladem | |||
| 32 | RUBBER MAT A000-050013 | Skladem | 15,54 Kč | ||
| 33 | Pouzdro A000-050014 | Skladem | 46,61 Kč | ||
| 34 | NYLON GASKET Φ8 6NTG-050002 | Skladem | 15,54 Kč | ||
| 35 | CLIP, BRAKE HOSE 6NQ0-050003 | Skladem | |||
| 35 | WIRE CLIP, FRONT BRAKE FLUID HOSE 6NT#-050003-1000 | Skladem | 87,05 Kč | ||
| 36 | RUBBER MAT, HEADLIGHT 9010-160101 | Skladem | 15,54 Kč | ||
| 37 | STEEL COLLAR，HEADLIGHT 9010-160102 | Skladem | 15,54 Kč | ||
| 38 | SIDE REFLECTOR 6KJ0-050030 | Skladem | 77,68 Kč | ||
| 39 | REAR PART, FRONT FENDER 6NQ#-050011-2601-0BM00 | Skladem | 1 973,12 Kč | ||
