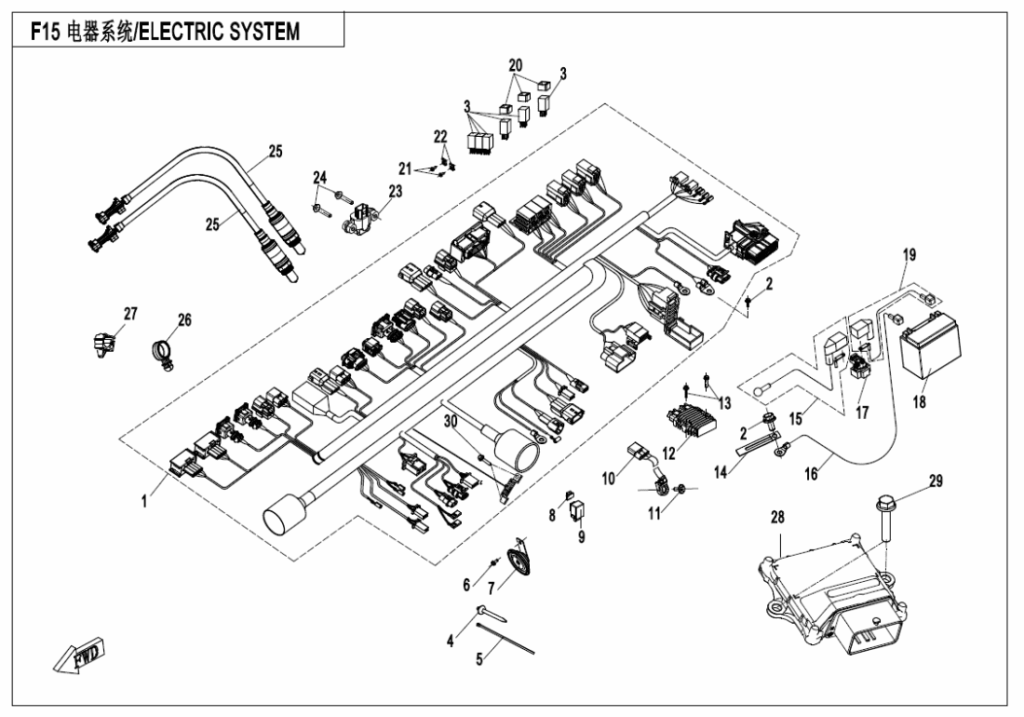

F15 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | MAIN CABLE 6NQ#-150100-2601 | Skladem | |||
| 01 | MAIN CABLE 6NQV-150100-2602 | Skladem | |||
| 02 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 03 | AUXILIARY RELAY A000-150800 | Skladem | 145,08 Kč | ||
| 04 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 05 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 06 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 07 | HORN 12V A000-150500 | Skladem | 233,05 Kč | ||
| 08 | CUSHION WASHER, FLASHER 8010-150002 | Skladem | 15,54 Kč | ||
| 09 | Přerušovač blinkrů 6KJ0-150340 | Skladem | 170,90 Kč | ||
| 10 | SWITCH, SIDE STAND 6070-151200-1000 | Skladem | 246,63 Kč | ||
| 11 | BOLT M6x16 8010-090005 | Skladem | 15,54 Kč | ||
| 12 | REGULATOR 01AA-177000 | Skladem | 3 146,00 Kč | ||
| 13 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 14 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 15 | POSITIVE WIRE, STARTER MOTOR 6NQ#-150200-2601 | Skladem | |||
| 16 | NEGATIVE CABLE, STARTER MOTOR A000-150300 | Skladem | |||
| 17 | STARTER RELAY 9010-150310-10001 | Skladem | 466,09 Kč | ||
| 18 | BATTERY 31021200 | Skladem | 3 340,33 Kč | ||
| 19 | CABLE, STARTER RELAY 6NQ#-150700-2600 | Skladem | |||
| 20 | RUBBER RING, AUXILIARY RELAY A000-150801 | Skladem | 31,07 Kč | ||
| 21 | SELF-TAPPING SCREW ST4.2×13 30110-421130010 | Skladem | 29,02 Kč | ||
| 22 | CLIP NUT ST4.8 8080-000002 | Skladem | 15,54 Kč | ||
| 23 | SENSOR, ROLL-OVER 6KJ0-150600 | Skladem | 652,53 Kč | ||
| 24 | BOLT M5×25 0A70-014004 | Skladem | |||
| 25 | OXYGEN SENSOR 0HU0-176000 | Skladem | 3 045,13 Kč | ||
| 26 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
| 27 | CLIP , CLUTCH CABLE A000-100002 | Skladem | 15,54 Kč | ||
| 28 | ECU ASSY 0MQ0-174000-20000 | Skladem | |||
| 29 | Šroub 30006-050012810 | Skladem | 15,54 Kč | ||
| 30 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
