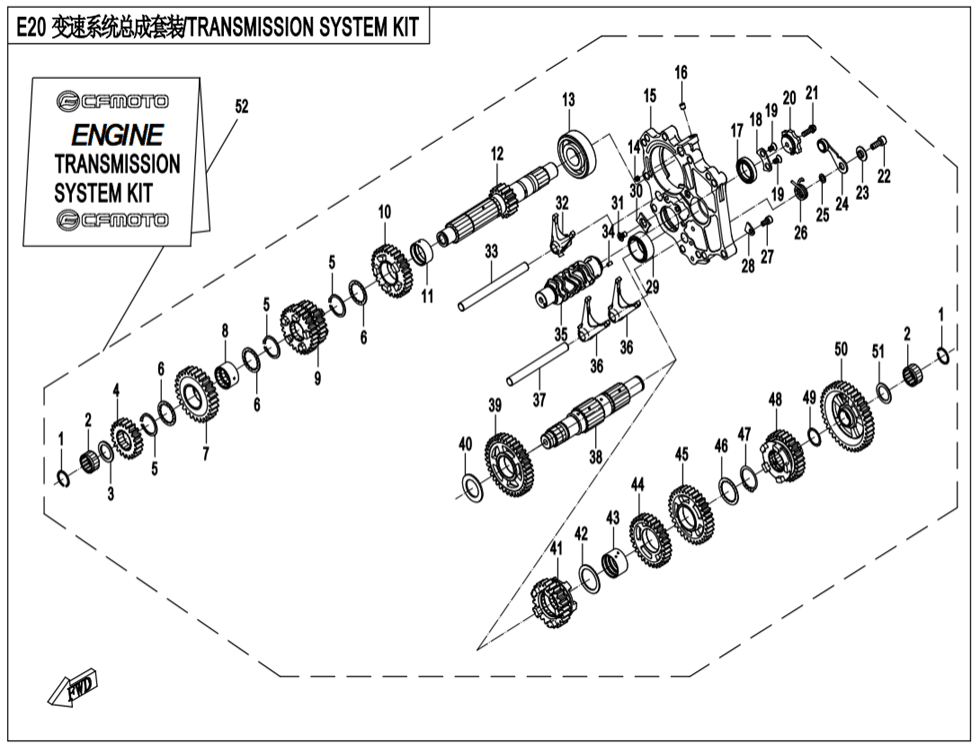

Převodovka komplet
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | CIRCLIPS FOR SHAFT20 0700-061016 | Skladem | 15,54 Kč | ||
| 02 | NEEDLE BEARING 30499-02004 | Skladem | 391,71 Kč | ||
| 03 | GASKET 20.5x30x1.5 0180-061012 | Skladem | 31,07 Kč | ||
| 04 | DRIVE GEAR, 2ND SPEED 0700-061014-1000 | Skladem | 636,99 Kč | ||
| 05 | CIRCLIPS FOR SHAFT28 0700-061009 | Skladem | 15,54 Kč | ||
| 06 | Podložka 0700-061008 | Skladem | 31,07 Kč | ||
| 07 | DRIVE GEAR, 6TH SPEED 0700-061013-1000 | Skladem | 916,65 Kč | ||
| 08 | BUSHING 28×14.7 0700-061012 | Skladem | 319,17 Kč | ||
| 09 | DRIVE GEAR, 3RD AND 4TH SPEED 0700-061011-1000 | Skladem | 2 206,17 Kč | ||
| 10 | DRIVE GEAR, 5TH SPEED 0700-061007-1000 | Skladem | 1 196,30 Kč | ||
| 11 | BUSHING 28×14 0700-061006 | Skladem | 290,16 Kč | ||
| 12 | MAIN SHAFT 0700-061001-1000 | Skladem | 2 734,41 Kč | ||
| 13 | BEARING 25x62x17 0700-066002 | Skladem | 1 460,42 Kč | ||
| 14 | OIL LIMIT PLUG 0700-066006 | Není skladem | |||
| 15 | GEAR CASE 0700-066001 | Není skladem | |||
| 16 | PLUG 6 0700-066005 | Skladem | 31,07 Kč | ||
| 17 | Ložisko 30400-02504 | Skladem | 139,83 Kč | ||
| 18 | PLATE 3 0700-066009 | Skladem | 31,07 Kč | ||
| 19 | SCREW, BEARING HOLDER 0700-066010 | Není skladem | |||
| 20 | CAM, GEARSHIFT DRUM 0700-063002 | Skladem | 108,75 Kč | ||
| 21 | BOLT M6×18 0010-023008-0010 | Skladem | 15,54 Kč | ||
| 22 | INNER HEX SCREW M6x16 30102-060016810 | Skladem | 15,54 Kč | ||
| 23 | SLEEVE, SWING ARM, GEARSHIFT 0700-064003 | Skladem | 130,57 Kč | ||
| 24 | SWING ARM, GEARSHIFT 0700-064100 | Skladem | 108,75 Kč | ||
| 25 | WASHER 6.3×16.3×1.2 0700-064001 | Skladem | 15,54 Kč | ||
| 26 | SPRING, SWING ARM, GEARSHIFT 0700-064002 | Skladem | 31,07 Kč | ||
| 27 | SCREW M6X12 0010-090006-0020 | Není skladem | |||
| 28 | PLATE 2 0700-066008 | Skladem | 15,54 Kč | ||
| 29 | SHAFT SLEEVE 0700-011107 | Skladem | 304,67 Kč | ||
| 30 | PLATE 1 0700-066003 | Není skladem | |||
| 31 | SCREW, PRESS PLATE 0180-014009-0010 | Skladem | 15,54 Kč | ||
| 32 | FORK, MAIN SHAFT 0700-060004-1000 | Skladem | 290,16 Kč | ||
| 33 | FORK SHAFT, MAIN SHAFT 0700-060003 | Skladem | 217,62 Kč | ||
| 34 | ROLLER NEEDLE P4x7.8 30406-00401 | Skladem | 31,07 Kč | ||
| 35 | DRUM, GEARSHIFT 0700-063001-1000 | Není skladem | |||
| 36 | SHIFT FORK, COUNTERSHAFT 0700-060002-1000 | Skladem | 233,05 Kč | ||
| 37 | SHIFT FORK, COUNTERSHAFT 0700-060001 | Skladem | 203,11 Kč | ||
| 38 | COUNTERSHAFT 0700-062001-1000 | Není skladem | |||
| 39 | DRIVEN GEAR, 2ND SPEED 0700-062200-1000 | Skladem | 1 398,28 Kč | ||
| 40 | WASHER 25x39x2 0700-062012 | Skladem | 46,61 Kč | ||
| 41 | DRIVEN GEAR, 6TH SPEED 0700-062011-1000 | Skladem | 1 444,89 Kč | ||
| 42 | WASHER 30×38.5×1.5 0700-062009 | Skladem | 46,61 Kč | ||
| 43 | BUSHING 29.65 0700-062007 | Skladem | 348,19 Kč | ||
| 44 | DRIVEN GEAR, 4TH SPEED 0700-062008-1000 | Skladem | 1 382,74 Kč | ||
| 45 | DRIVEN GEAR, 3RD SPEED 0700-062006-1000 | Skladem | 1 429,35 Kč | ||
| 46 | Podložka 0700-062005 | Skladem | 31,07 Kč | ||
| 47 | CIRCLIP30 S=1.5 30801-03005 | Skladem | 15,54 Kč | ||
| 48 | DRIVEN GEAR, 5TH SPEED 0700-062004-1000 | Skladem | 1 413,81 Kč | ||
| 49 | WASHER 20.4x25x0.5 0700-062003 | Skladem | 31,07 Kč | ||
| 50 | DRIVEN GEAR, 1ST SPEED 0700-062100-1000 | Skladem | 1 382,74 Kč | ||
| 51 | WASHER 20.4x28x1.2 0700-062002 | Skladem | 31,07 Kč | ||
| 52 | SHIFTING SYSTEM ASSY 0700-0600A0 | Není skladem | |||
