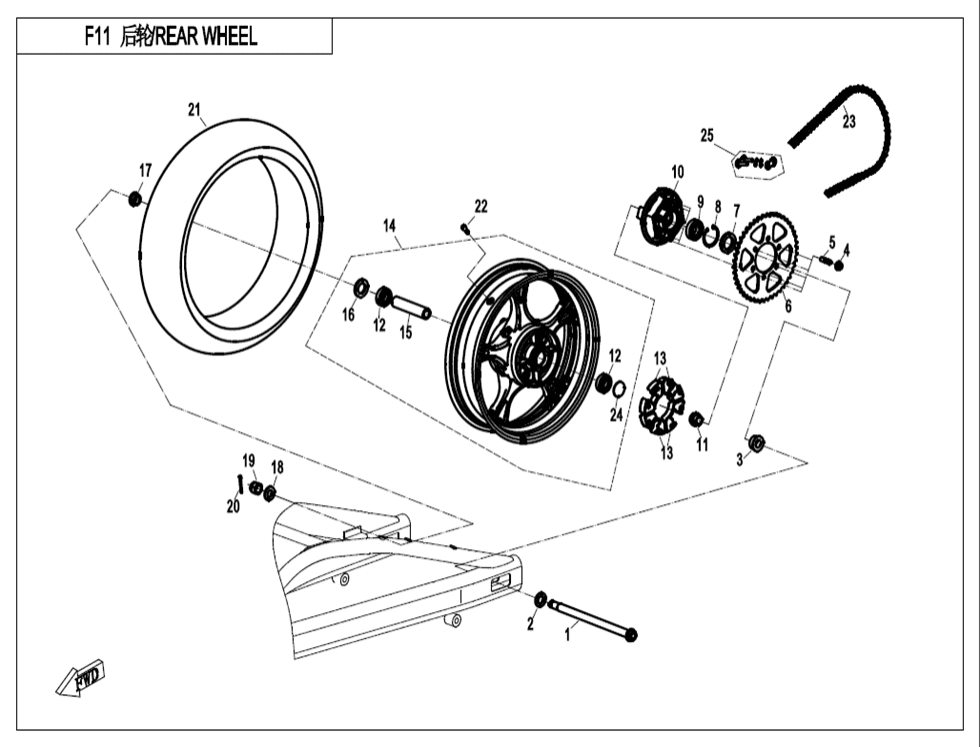

Zadní kolo
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SHAFT, REAR WHEEL A000-110001 | Skladem | 754,41 Kč | ||
| 02 | Podložka 30306-200112 | Skladem | 15,54 Kč | ||
| 03 | SHAFT SLEEVE(LH), REAR WHEEL A000-110002 | Skladem | 232,13 Kč | ||
| 04 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 05 | STUD, AM10x1.25×25 30020-102025410 | Skladem | 46,61 Kč | ||
| 06 | REAR SPROCKET A000-110004 | Skladem | 1 351,67 Kč | ||
| 07 | OIL SEAL, FB35x52x8 30501-035800N | Skladem | 62,15 Kč | ||
| 08 | CIRCLIP FOR HOLE 52 30800-05205 | Skladem | 31,07 Kč | ||
| 09 | BEARING, 6205-2RS 30400-02503 | Skladem | 186,44 Kč | ||
| 10 | SEAT, SPROCKET MATTE BLACK A000-110006-0B20 | Skladem | 4 505,56 Kč | ||
| 11 | COLLAR, SPROCKET SEAT A000-110005 | Skladem | 232,13 Kč | ||
| 12 | BEARING, 6204-RS 30400-02001 | Skladem | 174,09 Kč | ||
| 13 | DAMPER, SPROCKET SEAT A000-110007 | Skladem | 62,15 Kč | ||
| 14 | REAR RIM A000-110200-0B20 | Skladem | 8 653,77 Kč | ||
| 15 | CENTER SPACER,REAR RIM A000-110008 | Skladem | 203,11 Kč | ||
| 16 | OIL SEAL A000-110201 | Skladem | 46,61 Kč | ||
| 17 | RIGHT COLLAR, REAR AXLE A000-110003 | Není skladem | |||
| 18 | WASHER 18, REAR WHEEL AXLE A000-110009 | Skladem | 31,07 Kč | ||
| 19 | NUT, REAR WHEEL A000-110011 | Skladem | 116,06 Kč | ||
| 20 | COTTER PIN 30903-0403510 | Skladem | 15,54 Kč | ||
| 21 | REAR TIRE 30705-1702 | Není skladem | |||
| 22 | VALVE, INFLATION 5190-070030-1000 | Skladem | 43,52 Kč | ||
| 23 | CHAIN, 10MAx114 3120901 | Skladem | 3 913,24 Kč | ||
| 24 | O-RING, 60×3.55 30503-060000N | Skladem | 31,07 Kč | ||
| 25 | RIVETED BUCKLE, CHAIN A000-110310 | Skladem | 357,34 Kč | ||
