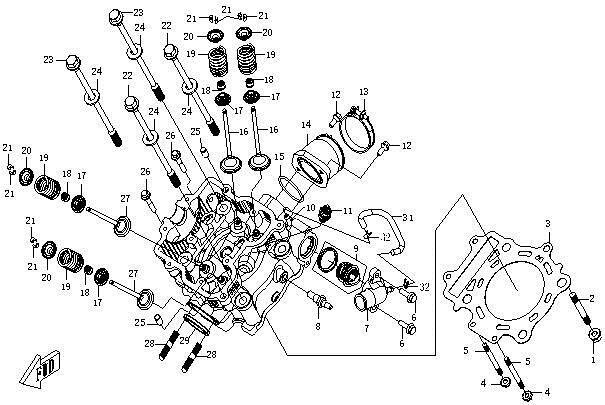

CYLINDER HEAD
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FLANGE NUT M8 0010-011700-0010 | Skladem | 15,54 Kč | ||
| 02 | STUD M8x68 0180-022009-0010 | Skladem | 31,07 Kč | ||
| 03 | GASKET, CYLINDER HEAD 0180-022200 | Skladem | 594,82 Kč | ||
| 04 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 05 | STUD M6x70 0180-022001-0020 | Skladem | 31,07 Kč | ||
| 06 | BOLT M6×22 0010-080013-0030 | Skladem | 15,54 Kč | ||
| 07 | WATER OUTLET PIPE, CYLINDER HEAD 01A0-022200 | Skladem | 203,11 Kč | ||
| 08 | WATER TEMPERATURE SENSOR 0010-022600 | Skladem | 248,58 Kč | ||
| 09 | THERMOSTAT ASSY 0180-022810 | Skladem | 341,80 Kč | ||
| 10 | PIPE JOINT 01A0-022102 | Skladem | 46,61 Kč | ||
| 11 | ZAPALOVACÍ SVÍČKA 0110-022400 | Skladem | 300,31 Kč | ||
| 12 | SCREW M6×25 0180-022010-0010 | Skladem | 29,02 Kč | ||
| 13 | CLAMP, AIR INLET PIPE 0180-022400-0050 | Skladem | 58,03 Kč | ||
| 14 | JOINT, CARBURETOR 0180-022900 | Skladem | 248,58 Kč | ||
| 15 | O-SEAL RING 40×2.4 0180-022011 | Skladem | 62,15 Kč | ||
| 16 | VALVE, INTAKE 0180-022004 | Skladem | 233,05 Kč | ||
| 17 | LOWER SEAT, VALVE SPRING 0180-022008-0050 | Skladem | 43,52 Kč | ||
| 18 | SEAL RING, VALVE STEM 0010-022500 | Skladem | 43,52 Kč | ||
| 19 | SPRING, VALVE 0180-022006-0050 | Skladem | 62,15 Kč | ||
| 20 | UPPER SEAT, VALVE SPRING 0180-022007-0050 | Skladem | 72,54 Kč | ||
| 21 | LOCK CLIP, VALVE 0010-022006-0030 | Skladem | 31,07 Kč | ||
| 22 | CYLINDER BOLT LM10×1.25×190 0180-022012-0010 | Skladem | 145,08 Kč | ||
| 23 | CYLINDER BOLT(R) 0180-022013-0010 | Skladem | 159,59 Kč | ||
| 24 | WASHER, CYLINDER BOLT 0180-022014 | Skladem | 43,52 Kč | ||
| 25 | DOWEL PIN φ8×14 0010-080008 | Skladem | 15,54 Kč | ||
| 26 | BOLT M6×30 0010-060012-0030 | Skladem | 15,54 Kč | ||
| 27 | VALVE, EXHAUST 0180-022005 | Skladem | 372,87 Kč | ||
| 28 | STUD M8×42 0180-022003-0010 | Skladem | 31,07 Kč | ||
| 29 | GASKET，EXHAUST PIPE 0180-022300 | Skladem | 108,75 Kč | ||
| 31 | BREATHER HOSE 0180-022015 | Skladem | 15,54 Kč | ||
| 32 | CLAMP B7 30601-207050 | Skladem | 15,54 Kč | ||
