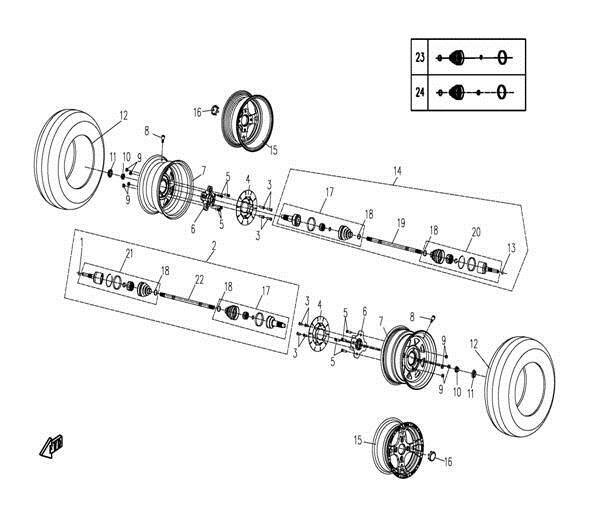

FRONT WHEEL
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | WIRE CIRCLIP 9010-270112 | Skladem | 31,07 Kč | ||
| 02 | FRONT CV DRIVE SHAFT,LH 9030-270100 | Skladem | 8 778,07 Kč | ||
| 03 | BOLT,FRONT BRAKE DISC 9010-080003 | Skladem | 15,52 Kč | ||
| 04 | FRONT BRAKE DISC 9030-080001 | Skladem | 792,36 Kč | ||
| 05 | BOLT，FRONT WHEEL BRACKET 9010-070201 | Skladem | 43,52 Kč | ||
| 06 | MOUNTING BRACKET,FRONT WHEEL 9010-070001-1000 | Skladem | 1 180,77 Kč | ||
| 07 | FRONT ALUM. RIM 9030-070100-B000 | Skladem | 3 868,56 Kč | ||
| 08 | INFLATION VALVE 5190-070030 | Skladem | 101,56 Kč | ||
| 09 | MOUNTING NUT, RIM 9010-070002-A000 | Skladem | 87,05 Kč | ||
| 09 | NUT ，RIM SHAFT 9010-070002 | Skladem | 62,15 Kč | ||
| 10 | NUT，RIM SHAFT 9030-070003 | Skladem | 145,08 Kč | ||
| 11 | DECO COVER, TIRE 9030-040035 | Skladem | |||
| 12 | FRONT TIRE 30703-1222 | Skladem | |||
| 12 | FRONT TIRE, UTV 30703-1220 | Skladem | |||
| 13 | WIRE CIRCLIP 9010-270203 | Skladem | 15,54 Kč | ||
| 14 | FRONT CV DRIVE SHAFT,RH 9030-270200 | Skladem | 8 840,21 Kč | ||
| 16 | ALUM. RIM CAP 9050-040036 | Skladem | 290,16 Kč | ||
| 17 | BEARING KIT, FIXED END 9010-270160 | Skladem | 2 408,14 Kč | ||
| 17 | BEARING KIT,FIXING END 9030-270160 | Skladem | 4 396,80 Kč | ||
| 18 | SMALL CLAMP，FIXED END 9010-270106 | Skladem | 72,54 Kč | ||
| 19 | FRONT SHAFT, RH 9030-270201 | Skladem | |||
| 20 | BELL BOOT，MOTION END (RH) 9010-270250 | Skladem | 2 532,43 Kč | ||
| 21 | BELL BOOT，MOTION END (LH) 9010-270150 | Skladem | 2 532,43 Kč | ||
| 22 | FRONT SHAFT,LH 9030-270105 | Skladem | |||
| 23 | DUST BOOT，FIXED END 9010-270130 | Skladem | 636,99 Kč | ||
| 24 | DUST BOOT，MOTION END 9010-270140 | Skladem | 636,99 Kč | ||
