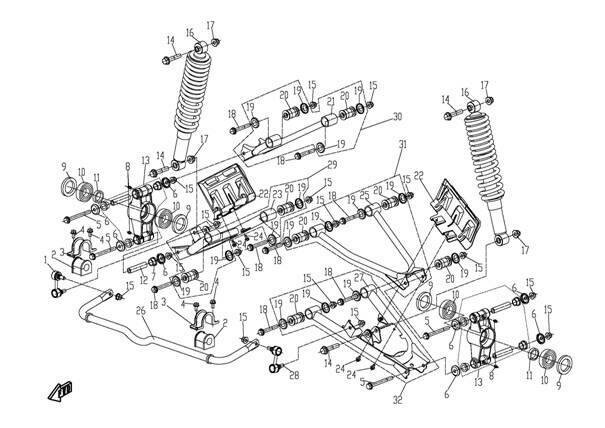

REAR SUSPENSION ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | BALL PIN （RH） 9010-060800-1000 | Skladem | 792,36 Kč | ||
| 02 | RUBBER SUPPORT SEAT 9030-060003 | Skladem | 188,60 Kč | ||
| 03 | RETAINING COVER 9030-060002 | Skladem | 77,68 Kč | ||
| 04 | Šroub 30006-080016840 | Skladem | 15,54 Kč | ||
| 05 | Šroub 30006-102100840 | Skladem | 77,62 Kč | ||
| 06 | ANTI-DUST CAP 9010-060900 | Skladem | 58,03 Kč | ||
| 08 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 09 | OIL SEAL 30500-042800N | Skladem | 87,05 Kč | ||
| 10 | Ložisko 30400-03081 | Skladem | 310,73 Kč | ||
| 11 | MIDDLE SPACER 9030-050003 | Skladem | 31,07 Kč | ||
| 13 | HOLDER，REAR WHEEL AXLE 9030-060001 | Skladem | |||
| 14 | Šroub 30006-122060840 | Skladem | |||
| 15 | Matice 30204-102840 | Skladem | 15,54 Kč | ||
| 16 | Zadní tlumič 9030-060600 | Skladem | 4 210,36 Kč | ||
| 17 | Matice 30204-122840 | Skladem | 15,52 Kč | ||
| 18 | Šroub 30006-102070840 | Skladem | 58,03 Kč | ||
| 19 | CAP, CUSHION SLEEVE 9010-050003 | Skladem | 31,07 Kč | ||
| 20 | CUSHION SLEEVE 9010-050500 | Skladem | 116,06 Kč | ||
| 21 | REAR UPPER SWING ARM, RH 9030-060300 | Skladem | 838,97 Kč | ||
| 22 | FENDER, SUSPENSION 9030-050004 | Skladem | 232,13 Kč | ||
| 23 | REAR SWING ARM (LOWER), RH 9030-060400 | Skladem | 1 538,10 Kč | ||
| 24 | Šroub 30006-060012840 | Skladem | 15,54 Kč | ||
| 25 | REAR UPPER SWING ARM, LH 9030-060100 | Skladem | 838,97 Kč | ||
| 26 | TORSION BAR COMP. 9030-060500 | Skladem | 1 475,96 Kč | ||
| 27 | REAR LOWER SWING ARM, LH 9030-060200 | Skladem | 1 538,10 Kč | ||
| 28 | BALL PIN （LH） 9010-060700 | Skladem | 792,36 Kč | ||
| 29 | REAR SWING ARM (LOWER), RH 9030-0604A0 | Skladem | |||
| 30 | REAR UPPER SWING ARM, RH 9030-0603A0 | Skladem | |||
| 31 | REAR UPPER SWING ARM, LH 9030-0601A0 | Skladem | |||
| 32 | REAR LOWER SWING ARM, LH 9030-0602A0 | Skladem | |||
