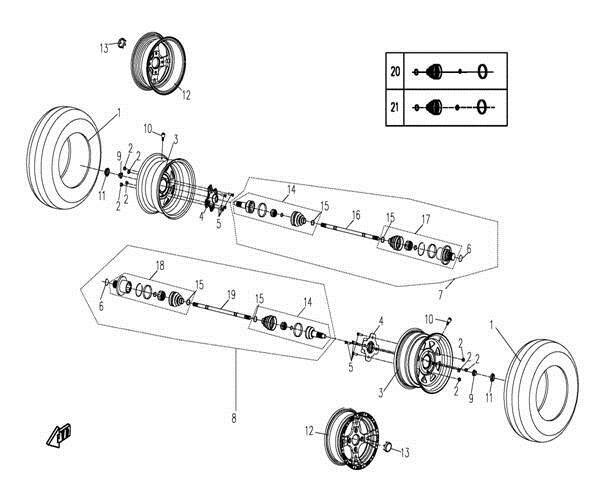

REAR WHEEL
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR TIRE 30703-1221 | Skladem | |||
| 01 | REAR TIRE 30703-1223 | Skladem | |||
| 02 | MOUNTING NUT, RIM 9010-070002-A000 | Skladem | 87,05 Kč | ||
| 02 | NUT ，RIM SHAFT 9010-070002 | Skladem | 62,15 Kč | ||
| 03 | REAR ALUM. RIM, BLACK 9030-110100-B000 | Skladem | 4 614,31 Kč | ||
| 04 | HUB, REAR WHEEL 9010-110001-1000 | Skladem | 1 040,94 Kč | ||
| 05 | BOLT，FRONT WHEEL BRACKET 9010-070201 | Skladem | 43,52 Kč | ||
| 06 | WIRE CIRCLIP 9010-280102 | Skladem | 31,07 Kč | ||
| 07 | REAR CV DRIVE SHAFT, RH 9030-280200 | Skladem | |||
| 08 | REAR CV DRIVE SHAFT, LH 9030-280100 | Skladem | 8 840,21 Kč | ||
| 09 | NUT，RIM SHAFT 9030-070003 | Skladem | 145,08 Kč | ||
| 10 | INFLATION VALVE 5190-070030 | Skladem | 101,56 Kč | ||
| 11 | DECO COVER, TIRE 9030-040035 | Skladem | |||
| 12 | REAR ALUM. RIM 9010-110100-A000 | Skladem | 5 328,99 Kč | ||
| 13 | ALUM. RIM CAP 9050-040036 | Skladem | 290,16 Kč | ||
| 14 | BEARING KIT, FIXED END 9010-270160 | Skladem | 2 408,14 Kč | ||
| 14 | BEARING KIT,FIXING END 9030-280160 | Skladem | 2 408,14 Kč | ||
| 15 | SMALL CLAMP，FIXED END 9010-270106 | Skladem | 72,54 Kč | ||
| 16 | REAR SHAFT, RH 9030-280201 | Skladem | |||
| 17 | BELL BOOT，RH REAR MOTION END 9010-280210 | Skladem | 2 905,31 Kč | ||
| 18 | BELL BOOT，LH REAR MOTION END 9010-280150 | Skladem | 2 905,31 Kč | ||
| 19 | REAR SHAFT, LH 9030-280101 | Skladem | |||
| 20 | DUST BOOT，FIXED END 9010-270130 | Skladem | 636,99 Kč | ||
| 21 | DUST BOOT，MOTION END 9010-270140 | Skladem | 636,99 Kč | ||
