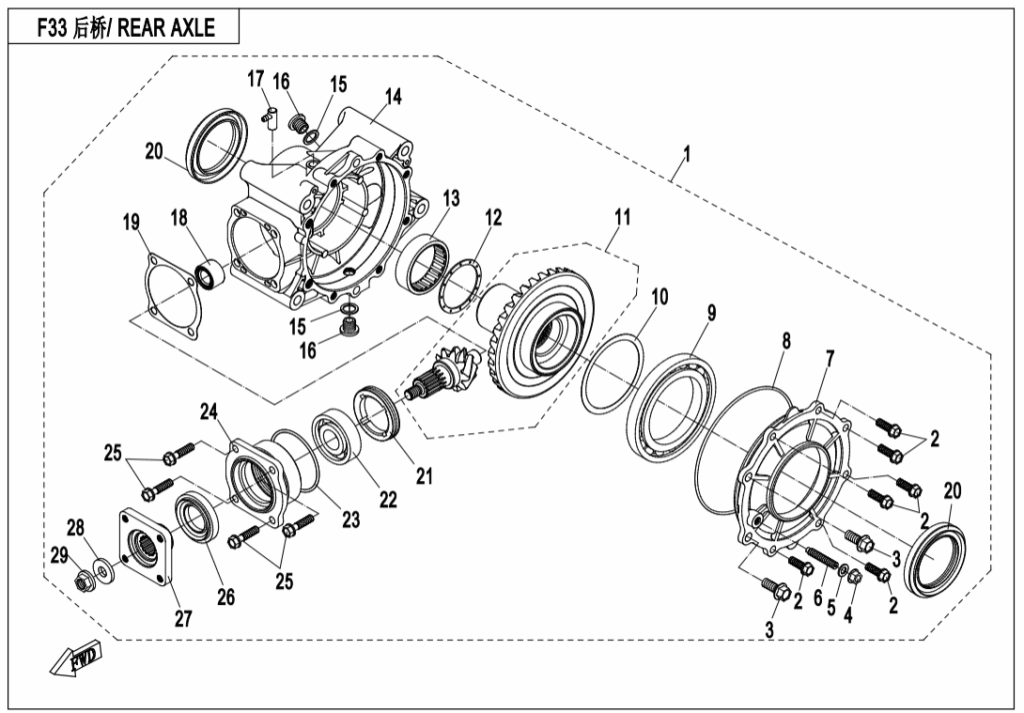

F33 REAR AXLE
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR AXLE ASSY, U8 Q530-330000-1000 | Skladem | |||
| 02 | BOLT SET 30008-080025810 | Skladem | 29,02 Kč | ||
| 03 | BOLT M10×1.25×25 0180-330004-0010 | Skladem | 31,07 Kč | ||
| 04 | NUT M8 0180-334006-0010 | Skladem | 15,54 Kč | ||
| 05 | GASKET 0180-334004 | Skladem | 31,07 Kč | ||
| 06 | INNER HEX SCREW M8×45 0180-334005-0010 | Skladem | 31,07 Kč | ||
| 07 | REAR GEAR BEARING HOUSING 0180-334001-0080 | Skladem | 932,18 Kč | ||
| 08 | O-SEAL RING 151×3 0180-334002 | Skladem | 43,52 Kč | ||
| 09 | Ložisko 30499-08500 | Skladem | 1 289,52 Kč | ||
| 10 | ADJUST SHIM(2) 0.2 0180-330002 | Skladem | 46,61 Kč | ||
| 10 | ADJUST SHIM(2) 0.3 0180-330002-0001 | Skladem | 46,61 Kč | ||
| 10 | ADJUST SHIM(2) 0.4 0180-330002-0002 | Skladem | 46,61 Kč | ||
| 11 | BEVEL GEAR COMP. REAR ALXE Q510-330010 | Skladem | 6 323,31 Kč | ||
| 12 | ADJUST SHIM(1) 1.0 0180-330001 | Skladem | 62,15 Kč | ||
| 12 | ADJUST SHIM(1) 1.2 0180-330001-0001 | Skladem | 62,15 Kč | ||
| 12 | ADJUST SHIM(1) 1.4 0180-330001-0002 | Skladem | 62,15 Kč | ||
| 12 | ADJUST SHIM(1) 1.6 0180-330001-0003 | Skladem | 62,15 Kč | ||
| 12 | ADJUST SHIM(1) 1.8 0180-330001-0004 | Skladem | 62,15 Kč | ||
| 13 | NEEDLE BEARING 30404-05500 | Skladem | 326,26 Kč | ||
| 14 | CASE, REAR AXLE Q530-332001 | Skladem | 3 542,30 Kč | ||
| 15 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 16 | BOLT M14×1.25×12 0180-021008-0010 | Skladem | 58,03 Kč | ||
| 17 | PIPE JOINT 0180-332006 | Skladem | 58,03 Kč | ||
| 18 | INNER & OUTER RACE 30403-01700 | Skladem | 372,87 Kč | ||
| 19 | ADJUST SHIM(0.40) 0180-330003 | Skladem | 46,61 Kč | ||
| 19 | ADJUST SHIM(0.50) 0180-330003-0001 | Skladem | 46,61 Kč | ||
| 19 | ADJUST SHIM(0.60) 0180-330003-0002 | Skladem | 46,61 Kč | ||
| 20 | OIL SEAL 0180-334003 | Skladem | 159,59 Kč | ||
| 21 | BEARING RETAINER Q510-331003 | Skladem | 201,97 Kč | ||
| 22 | BEARING 16017/C2 30400-02502 | Skladem | 290,16 Kč | ||
| 22 | Ložisko 30499-02501 | Skladem | 636,99 Kč | ||
| 23 | O RING 64.5×3 0180-331004 | Skladem | 31,07 Kč | ||
| 24 | BEVEL GEAR BEARING HOUSING Q510-331001 | Skladem | 761,28 Kč | ||
| 25 | BOLT SET 30008-080035810 | Skladem | 15,54 Kč | ||
| 26 | OIL SEAL 0180-331007 | Skladem | 101,56 Kč | ||
| 27 | INPUT COUPLER Q510-331004-1000 | Skladem | |||
| 28 | Podložka 0180-331008-0050 | Skladem | 43,52 Kč | ||
| 29 | Matice 0180-331009-0020 | Skladem | 43,52 Kč | ||
