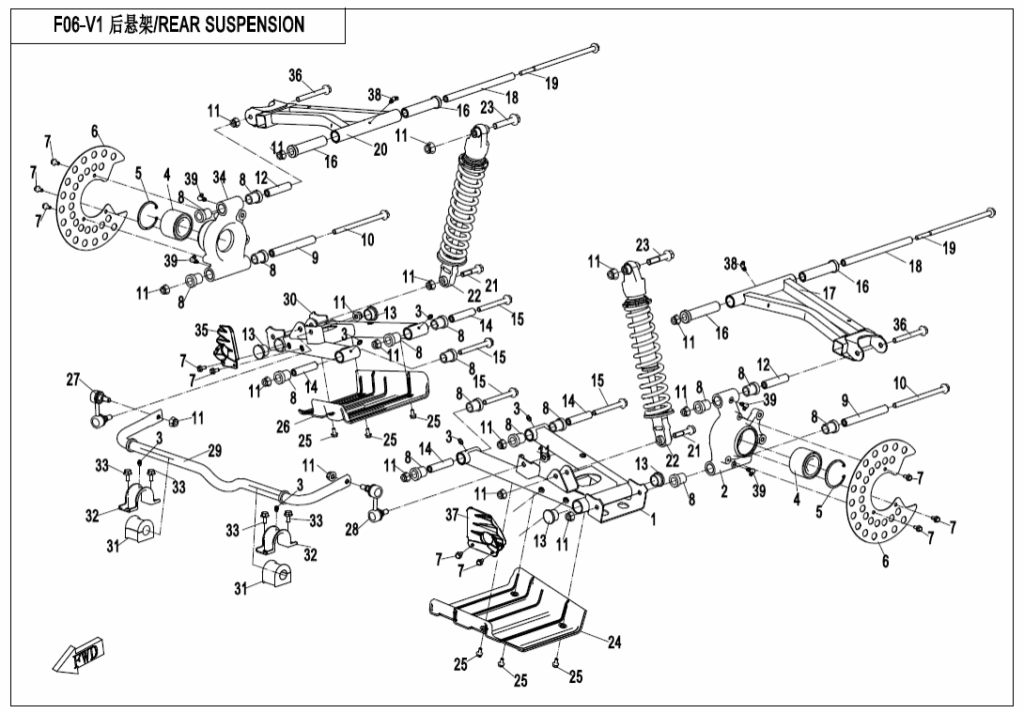

F06-V1 REAR SUSPENSION
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR LOWER SWING ARM,LH 703A-060210 | Skladem | 2 159,56 Kč | ||
| 02 | SUPPORT, REAR WHEEL SHAFT(LH) 7030-060001-00001 | Skladem | 4 598,77 Kč | ||
| 03 | OIL CUP 3120100 | Skladem | 139,71 Kč | ||
| 04 | BEARING,HUB 30499-03081 | Skladem | 978,79 Kč | ||
| 05 | CIRCLIP FOR HOLE 63 30800-06300 | Skladem | 31,07 Kč | ||
| 06 | GUARD, REAR BRAKE DISC 9060-060001 | Skladem | 326,26 Kč | ||
| 07 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 08 | SHORT BUSH，SWING ARM 9060-050003 | Skladem | 145,08 Kč | ||
| 09 | MIDDLE SPACER(LOWER), REAR WHEEL SHAFT SUPPORT 9060-060702-1000 | Skladem | 155,36 Kč | ||
| 09 | MIDDLE SPACER(LOWER), REAR WHEEL SHAFT SUPPORT 9060-060702-10001 | Skladem | 174,09 Kč | ||
| 10 | MOUNTING SHAFT(LOWER), REAR WHEEL SHAFT SUPPORT 9060-060704 | Skladem | 116,06 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | MIDDLE SPACER(UPPER), REAR WHEEL SHAFT SUPPORT 9060-060701-1000 | Skladem | 101,56 Kč | ||
| 12 | MIDDLE SPACER(UPPER), REAR WHEEL SHAFT SUPPORT 9060-060701-10001 | Skladem | 101,56 Kč | ||
| 13 | PLUG，REAR SUSPENSION 9060-060002 | Skladem | 46,61 Kč | ||
| 14 | SPACER, REAR LOWER SWING ARM 9060-060201 | Skladem | 62,15 Kč | ||
| 14 | SPACER, REAR LOWER SWING ARM 9060-060201-00001 | Skladem | 62,15 Kč | ||
| 15 | Šroub 30001-102095110 | Skladem | 58,03 Kč | ||
| 16 | LONG BUSH，SWING ARM 9060-050002 | Skladem | 217,62 Kč | ||
| 17 | REAR UPPER SWING ARM,LH 703A-060110-00001 | Skladem | |||
| 17 | REAR UPPER SWING ARM,LH 703A-060110 | Skladem | 1 072,01 Kč | ||
| 18 | SPACER, REAR UPPER SWING ARM 9060-060101 | Skladem | 203,11 Kč | ||
| 18 | SPACER, REAR UPPER SWING ARM 9060-060101-00001 | Skladem | 159,59 Kč | ||
| 19 | MOUNTING SHAFT, REAR ARM 4060-060101 | Skladem | 155,36 Kč | ||
| 20 | REAR UPPER SWING ARM,RH 703A-060310-00001 | Skladem | 1 072,01 Kč | ||
| 20 | REAR UPPER SWING ARM,RH 703A-060310 | Skladem | 1 072,01 Kč | ||
| 21 | Šroub 30006-102055810 | Skladem | 58,03 Kč | ||
| 22 | Zadní tlumič 703A-060500 | Skladem | 4 225,90 Kč | ||
| 23 | Šroub 30006-102060810 | Skladem | 31,07 Kč | ||
| 24 | GUARD, REAR SWING ARM(LH) 7030-040741 | Skladem | |||
| 25 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 26 | REAR SWING ARM GUARD, RH 7030-040751 | Skladem | |||
| 27 | BALL PIN （RH） 9010-060800-1000 | Skladem | 792,36 Kč | ||
| 27 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 28 | BALL PIN （LH） 9010-060700-1000 | Skladem | 792,36 Kč | ||
| 28 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 29 | REAR STABILIZER BAR 7030-060610 | Skladem | 1 227,38 Kč | ||
| 30 | REAR LOWER SWING ARM,LH 703A-060410 | Skladem | 2 159,56 Kč | ||
| 31 | RUBBER SUPPORT SEAT 9030-060003 | Skladem | 188,60 Kč | ||
| 32 | RETAINING COVER 9030-060002 | Skladem | 77,68 Kč | ||
| 33 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 34 | HOLDER ,REAR WHEEL SHAFT(RH) 7030-060002 | Skladem | 4 598,77 Kč | ||
| 34 | HOLDER,REAR WHEEL SHAFT(RH) 7030-060002-00001 | Skladem | 4 598,77 Kč | ||
| 35 | FENDER,REAR SUSPENSION(RH) 703A-060401 | Skladem | 46,61 Kč | ||
| 36 | Šroub 30006-102090810 | Skladem | 46,61 Kč | ||
| 37 | FENDER,REAR SUSPENSION(LH) 703A-060201 | Skladem | 46,61 Kč | ||
| 38 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 39 | GREASE NOZZLE 3121400 | Skladem | 31,07 Kč | ||
