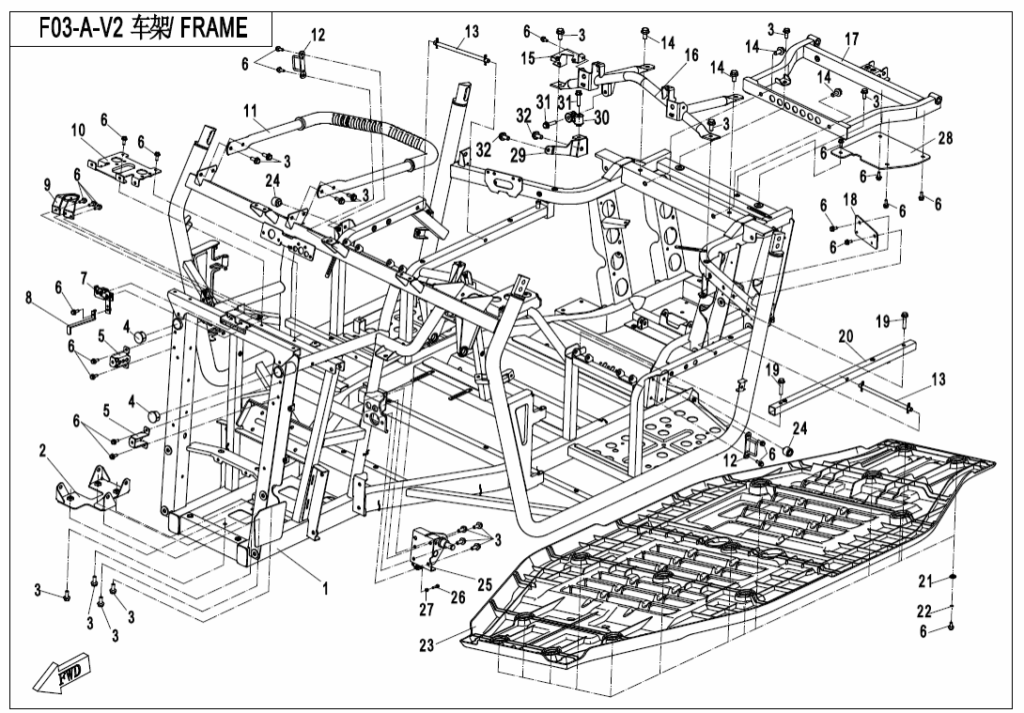

F03-A-V2 FRAME(2017)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRAME ASSY 5UR0-030100-00005 | Skladem | |||
| 02 | BRACKET, FRONT AXLE 7030-038110-10000 | Skladem | 435,02 Kč | ||
| 03 | BOLT M8x20 30006-080020810 | Skladem | 15,54 Kč | ||
| 04 | FRAME PLUG 9060-038123 | Skladem | |||
| 05 | BRACKET，FRONT TOP COVER 7030-038210 | Skladem | 93,22 Kč | ||
| 06 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 07 | LOCK,FRONT COVER 7030-010200 | Skladem | 725,40 Kč | ||
| 08 | LEVER,FRONT COVER LOCK 7030-010201 | Skladem | 101,56 Kč | ||
| 09 | SUPPORT PLATE, SPRING 7030-040192 | Skladem | 108,75 Kč | ||
| 10 | UPPER BRACKET，RADIATOR 7030-037110 | Skladem | 326,26 Kč | ||
| 11 | FRONT ARMREST 7030-037210 | Skladem | |||
| 12 | LOCK HOOK 7030-370700 | Skladem | 174,09 Kč | ||
| 13 | ROD,SEAT LOCK 7030-037810 | Skladem | |||
| 14 | Šroub 30001-102025810 | Skladem | 46,61 Kč | ||
| 15 | BASE SUPPORT，IGNITION COIL 5UR0-030020 | Skladem | |||
| 16 | BRACKET ASSY, SEAT BELT BUCKLE 7030-037400-20000 | Skladem | |||
| 17 | BRACKET, CARGO BOX 7030-037600-10000 | Skladem | |||
| 18 | ECU SUPPORT 5UR0-030010 | Skladem | |||
| 19 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 20 | INNER BEAM, LH SEAT 7030-037710 | Skladem | |||
| 21 | BASE PLATE GASKET 9060-040028 | Skladem | 31,07 Kč | ||
| 22 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 23 | BASE PLATE 7030-040711-10000 | Skladem | 3 992,85 Kč | ||
| 24 | CUSHION RUBBER 9030-370901-10000 | Skladem | |||
| 25 | BRACKET, FOOT PEDAL 7030-039110 | Skladem | |||
| 26 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 27 | NUT M6 30200-060810 | Skladem | 15,54 Kč | ||
| 28 | HEAT INSULATOR，CARGO BOX 7030-030001 | Skladem | |||
| 29 | UPPER BRACKET, ENGINE 5UR0-030030 | Skladem | |||
| 30 | CONNECTING PARTS, ENGINE UPPER BRACKET 7020-000160 | Skladem | 290,16 Kč | ||
| 31 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 32 | Šroub 30006-103020810 | Skladem | 31,07 Kč | ||
