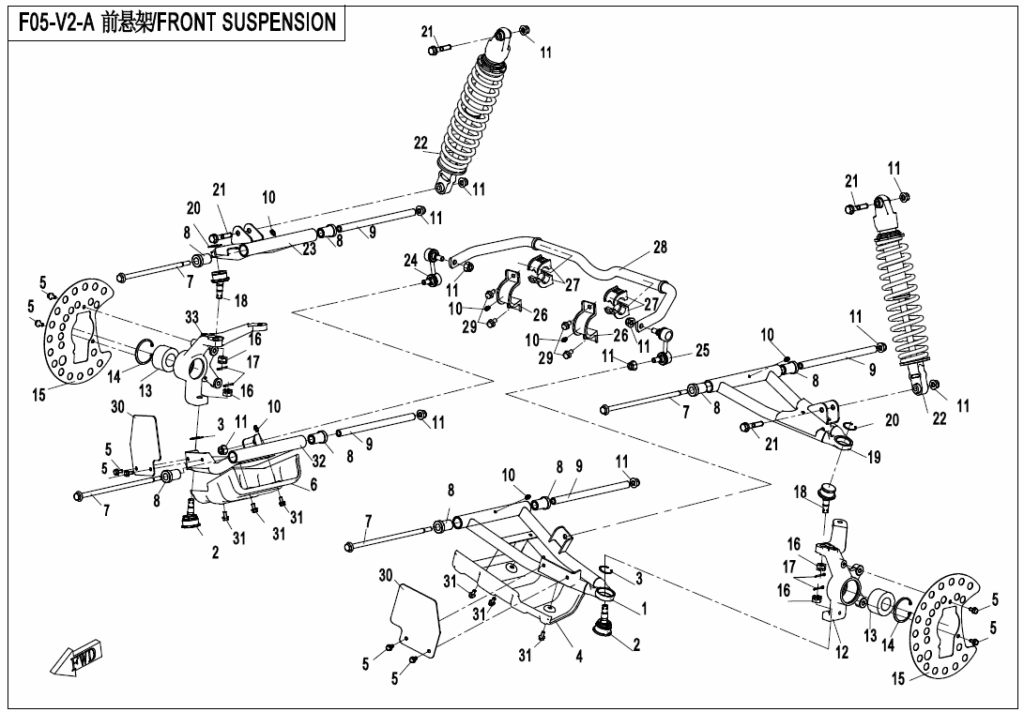

F05-V2-A FRONT SUSPENSION(2017 VERSION)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | FRONT LOWER SWING ARM ASSY, LH 703A-050210-10000 | Skladem | 1 755,61 Kč | ||
| 01 | FRONT LOWER SWING ARM，LH 703A-050210 | Skladem | 1 755,61 Kč | ||
| 02 | BALL PIN COMP. 9060-050900-10000 | Skladem | 1 009,87 Kč | ||
| 02 | BALL PIN COMP. 9060-050900 | Skladem | 1 009,87 Kč | ||
| 03 | CIRCLIPS FOR SHAFT 34 30801-03405 | Skladem | 15,54 Kč | ||
| 04 | COVER，FRONT SWING ARM（LH） 7030-040721 | Skladem | 246,63 Kč | ||
| 05 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 06 | GUARD, FRONT SWING ARM(RH) 7030-040731 | Skladem | 246,63 Kč | ||
| 07 | SHAFT, FRONT SWNG ARM 4060-050101 | Skladem | 174,09 Kč | ||
| 08 | LONG BUSH，SWING ARM 9060-050002 | Skladem | 217,62 Kč | ||
| 09 | SPACER, FRONT SWING ARM 9060-050101-00001 | Skladem | 174,09 Kč | ||
| 10 | GREASE NOZZLE 3121401 | Skladem | 31,07 Kč | ||
| 11 | NUT M10x1.25 30204-102810 | Skladem | 15,54 Kč | ||
| 12 | FRONT STEERING KNUCKLE,LH 703A-050001 | Skladem | 2 175,10 Kč | ||
| 13 | BEARING,HUB 30499-03080 | Skladem | 683,60 Kč | ||
| 14 | CIRCLIP FOR HOLE 55 30800-05505 | Skladem | 31,07 Kč | ||
| 15 | GUARD, BRAKE DISC 7030-050003 | Skladem | 295,19 Kč | ||
| 16 | Matice 30219-122810 | Skladem | 31,07 Kč | ||
| 17 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 18 | MAIN PIN COMP. 9030-050600-10000 | Skladem | 1 009,87 Kč | ||
| 18 | MAIN PIN COMP. 9030-050600 | Skladem | 1 009,87 Kč | ||
| 19 | FRONT UPPER SWING ARM,LH 703A-050110 | Skladem | 1 755,61 Kč | ||
| 20 | CIRCLIPS FOR SHAFT32 30801-03205 | Skladem | 15,54 Kč | ||
| 21 | Šroub 30006-102055810 | Skladem | 58,03 Kč | ||
| 22 | FRONT SHOCK ABSORBER 703A-050500 | Skladem | 3 293,72 Kč | ||
| 23 | FRONT UPPER SWING ARM,RH 703A-050310 | Skladem | 1 755,61 Kč | ||
| 24 | BALL PIN （RH） 9010-060800-1000 | Skladem | 792,36 Kč | ||
| 24 | BALL PIN, RH 9010-060800-20000 | Skladem | 792,36 Kč | ||
| 25 | BALL PIN （LH） 9010-060700-1000 | Skladem | 792,36 Kč | ||
| 25 | BALL PIN, LH 9010-060700-20000 | Skladem | 792,36 Kč | ||
| 26 | RETAINING COVER 9030-060002 | Skladem | 77,68 Kč | ||
| 27 | SUPPORT, STABILIZER BAR 7000-060003 | Skladem | 101,56 Kč | ||
| 28 | FRONT STABILIZER BAR 7030-050610 | Skladem | 1 227,38 Kč | ||
| 29 | Šroub 30006-080016810 | Skladem | 15,54 Kč | ||
| 30 | FENDER, SUSPENSION 703A-050201 | Skladem | |||
| 31 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 32 | FRONT LOWER SWING ARM,RH 703A-050410 | Skladem | 1 755,61 Kč | ||
| 32 | FRONT LOWER SWING ARM,RH 703A-050410-10000 | Skladem | 1 755,61 Kč | ||
| 33 | FRONT STEERING KNUCKLE (RH) 703A-050002 | Skladem | 2 175,10 Kč | ||
