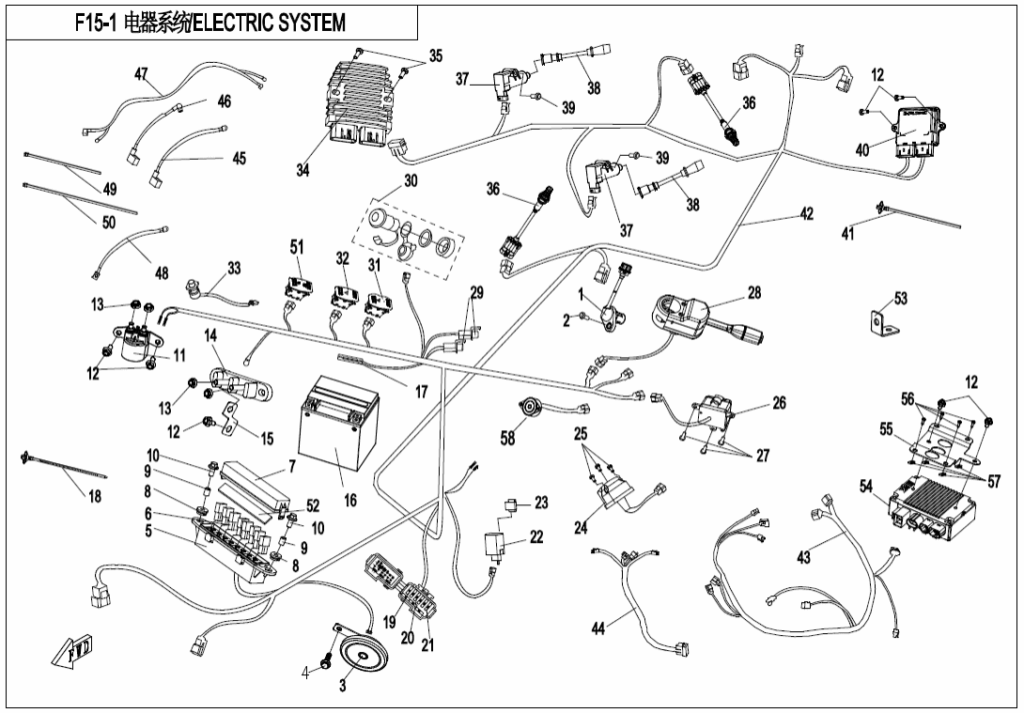

F15-1 ELECTRIC SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | SPEED SENSOR 7020-150400 | Skladem | 652,53 Kč | ||
| 02 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 03 | ELECTRIC HORN 6050-150500 | Skladem | 275,88 Kč | ||
| 04 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 05 | RELAY BOX 7020-040411 | Skladem | 139,83 Kč | ||
| 06 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 07 | COVER,RELAY BOX 7020-040412 | Skladem | 93,22 Kč | ||
| 08 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 09 | Pouzdro 6090-040303 | Skladem | 15,54 Kč | ||
| 10 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 11 | STARTER RELAY 5270-150500 | Skladem | 403,95 Kč | ||
| 12 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 13 | Matice 7030-151613 | Skladem | |||
| 14 | TERMINAL, CABLE 7030-151611 | Skladem | |||
| 15 | GROUND CONNECTOR 7030-151612 | Skladem | |||
| 16 | BATTERY 31023000 | Skladem | 3 848,73 Kč | ||
| 17 | FUSE (40A) 9CR6-103501 | Skladem | 101,56 Kč | ||
| 18 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 19 | FUSE (5A) 8080-151301 | Skladem | |||
| 20 | FUSE 10A 806A-151302 | Skladem | 58,08 Kč | ||
| 21 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 22 | Přerušovač blinkrů 5UW2-150340 | Skladem | 497,16 Kč | ||
| 23 | CUSHION WASHER, FLASHER 8010-150002 | Skladem | 15,54 Kč | ||
| 24 | POWER SOCKET，TRAILER 7020-150800 | Skladem | 419,48 Kč | ||
| 25 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 26 | SWTICH ASSY.,2WD/4WD 5UW2-160700 | Skladem | 1 040,94 Kč | ||
| 27 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 28 | COMBINATION SWITCH 7030-160800 | Skladem | 1 802,22 Kč | ||
| 29 | DIODE, STARTER 6090-150500 | Skladem | 58,03 Kč | ||
| 30 | OUTPUT SEAT,POWER 7020-150500 | Skladem | 419,48 Kč | ||
| 31 | OVERRIDING SWITCH 7030-151400 | Skladem | 233,05 Kč | ||
| 32 | ALARM SWITCH 7030-151600 | Skladem | 319,17 Kč | ||
| 33 | BUTTON,CLOCK 7030-170300 | Skladem | 326,26 Kč | ||
| 34 | REGULATOR 01AA-177000 | Skladem | 3 146,00 Kč | ||
| 34 | REGULATOR 0800-177000 | Skladem | 9 150,94 Kč | ||
| 34 | REGULATOR 0800-177000-10000 | Skladem | 3 977,32 Kč | ||
| 35 | Šroub 30004-060030810 | Skladem | |||
| 36 | OXYGEN SENSOR 0800-176000 | Skladem | 3 915,17 Kč | ||
| 37 | IGNITION COIL COMP 0800-178000 | Skladem | 1 522,57 Kč | ||
| 38 | HIGH-TENSION CABLE 1 0800-179100 | Skladem | 264,12 Kč | ||
| 39 | Šroub 30006-060040810 | Skladem | |||
| 40 | Řídící jednotka ECU 0800-174000-80000 | Skladem | 9 819,00 Kč | ||
| 41 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 42 | Hlavní kabel 5UW2-150100 | Skladem | |||
| 43 | AUXILIARY CABLE, EFI 5UW2-150200 | Skladem | |||
| 44 | AUXILIARY CABLE, TAIL LIGHT 7030-150300 | Skladem | |||
| 45 | POSITIVE CABLE, BATTERY 7030-150510 | Skladem | |||
| 46 | NEGATIVE CABLE, BATTERY 7030-150610 | Skladem | |||
| 47 | CABLE, STARTER MOTOR 7030-150520 | Skladem | |||
| 48 | CABLE, STARTER RELAY 7030-150530 | Skladem | |||
| 49 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 50 | TIE BAND 8010-150003 | Skladem | 15,54 Kč | ||
| 51 | STOP SWITCH, ENGINE 5UW2-151000 | Skladem | 512,70 Kč | ||
| 52 | RUBBER WASHER,RELAY BOX COVER 7020-040414 | Skladem | |||
| 53 | BRACKET,FUSE BOX 7020-038002 | Skladem | |||
| 54 | EPS CONTROLLER 7030-150800 | Skladem | 10 238,49 Kč | ||
| 55 | BRACKET,EPS CONTROLLER 7030-106001 | Skladem | |||
| 56 | SELF-TAPPING SCREW 30110-480130010 | Skladem | 15,54 Kč | ||
| 57 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 58 | ALARM C000-150300 | Skladem | 901,11 Kč | ||
