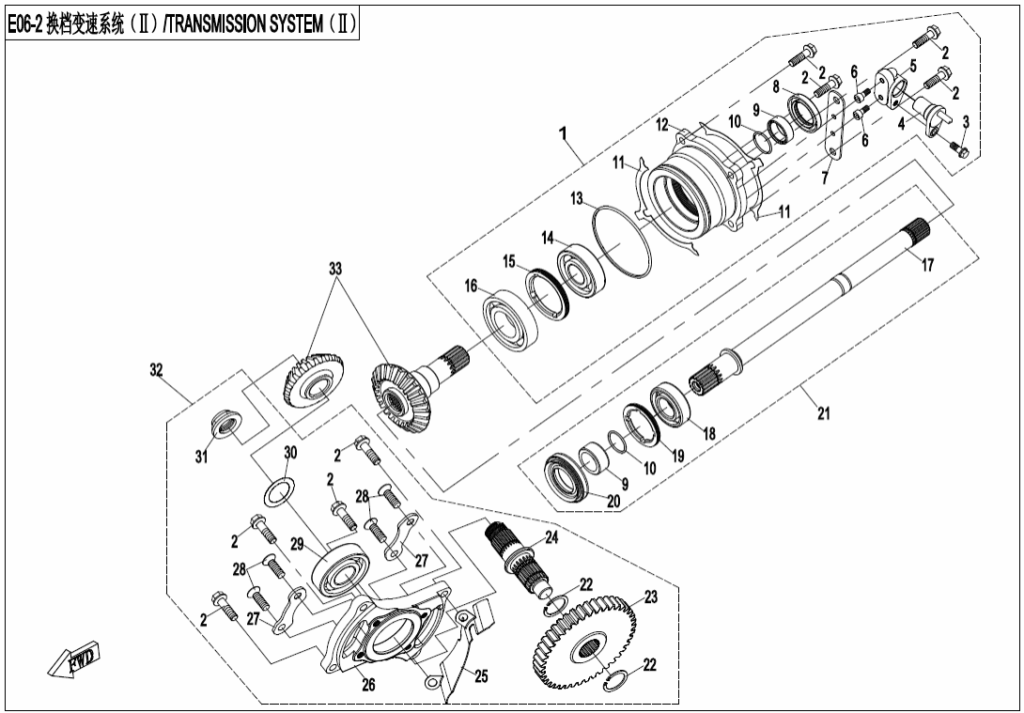

E06-2 TRANSMISSION SYSTEM (2)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | DRIVEN BEVEL GEAR ASSY. 0800-0622B0 | Skladem | |||
| 02 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 02 | BOLT M8*28 0JYA-062104 | Skladem | 43,52 Kč | ||
| 03 | BOLT M6×14 30001-060014810 | Skladem | 15,54 Kč | ||
| 04 | SPEED SENSOR 7020-150400 | Skladem | 652,53 Kč | ||
| 05 | SEAT, SPEED SENSOR 0800-062208 | Skladem | 145,08 Kč | ||
| 06 | SCREW M5x12 30102-050012810 | Skladem | 15,54 Kč | ||
| 07 | PLATE,SPEED SENSOR 0800-062209 | Skladem | 87,05 Kč | ||
| 08 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 09 | SHAFT SLEEVE, OUTPUT SHAFT 0800-062201 | Skladem | 217,51 Kč | ||
| 10 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 11 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0004 | Skladem | 31,07 Kč | ||
| 11 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0003 | Skladem | 31,07 Kč | ||
| 11 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0002 | Skladem | 31,07 Kč | ||
| 11 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203-0001 | Skladem | 31,07 Kč | ||
| 11 | ADJUST GASKET, DRIVEN BEVEL GEAR 0800-062203 | Skladem | 43,52 Kč | ||
| 12 | BEARING HOUSING, DRIVEN BEVEL GEAR 0800-062202-1000 | Skladem | 943,01 Kč | ||
| 13 | O-SEAL RING 88×2.5 0180-062205 | Skladem | 116,06 Kč | ||
| 14 | BEARING 16017/C2 30400-02502 | Skladem | 290,16 Kč | ||
| 15 | STOPPER NUT, BEARING 0800-062206 | Skladem | 124,29 Kč | ||
| 16 | Ložisko 30400-03500 | Skladem | 264,12 Kč | ||
| 17 | FRONT OUTPUT SHAFT 0800-062301 | Skladem | 1 149,69 Kč | ||
| 18 | Ložisko 30400-02501 | Skladem | 155,36 Kč | ||
| 19 | BEARING RETAINER, FRONT OUTPUT SHAFT 0180-060008 | Skladem | 155,36 Kč | ||
| 20 | OIL SEAL 35*61*9（14） 0JWA-062302 | Skladem | 372,87 Kč | ||
| 21 | FRONT OUTPUT SHAFT ASSY 0800-062300 | Skladem | 1 771,15 Kč | ||
| 22 | CIRCLIP 25 0180-061007-0050 | Skladem | 15,54 Kč | ||
| 23 | OUTPUT DRIVEN GEAR 0800-062102 | Skladem | 1 258,45 Kč | ||
| 24 | DRIVE BEVEL GEAR SHAFT 0800-062101 | Skladem | 884,98 Kč | ||
| 25 | RETAINING PLATE 0800-062108 | Skladem | 77,68 Kč | ||
| 26 | BEARING SEAT,DRIVE BEVEL GEAR 0800-062103 | Skladem | 636,99 Kč | ||
| 27 | LIMITATOR, BEARING 0180-062104-0010 | Skladem | 46,61 Kč | ||
| 28 | SCREW M8X25 30124-080025810 | Skladem | 15,54 Kč | ||
| 29 | Ložisko 30499-02501 | Skladem | 636,99 Kč | ||
| 30 | ADJUST GASKET, DRIVE BEVEL GEAR 0180-062105-0002 | Skladem | 31,07 Kč | ||
| 30 | ADJUST GASKET, DRIVE BEVEL GEAR 0180-062105-0001 | Skladem | 31,07 Kč | ||
| 30 | ADJUST GASKET, DRIVE BEVEL GEAR 0180-062105 | Skladem | 31,07 Kč | ||
| 30 | ADJUSTING WASHER, DRIVE SHAFT GEAR 0180-062105-0004 | Skladem | 31,07 Kč | ||
| 30 | ADJUSTING WASHER, DRIVE SHAFT GEAR 0180-062105-0003 | Skladem | 31,07 Kč | ||
| 31 | LOCK NUT, BEVEL GEAR 0180-062107-0010 | Skladem | 62,15 Kč | ||
| 32 | DRIVE BEVEL GEAR ASSY 0800-0621B0 | Skladem | |||
| 33 | DRIVE&DRIVENBEVELGEARCOMP 0800-0622A0 | Skladem | 3 324,79 Kč | ||
