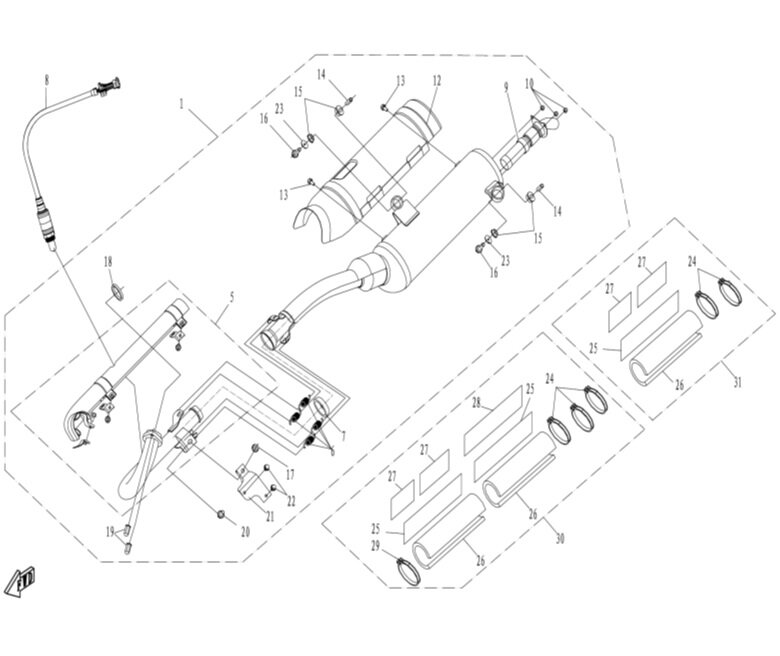

Výfuk EFI
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1-2 | MUFFLER ASSY. 905C-0201B0 | Skladem | 14 495,46 Kč | ||
| 1-1 | MUFFLER COMP. 905B-0201B0 | Skladem | 14 355,63 Kč | ||
| 2 | HEAT INSULATOR, EXHAUST PIPE 901F-020120 | Není skladem | |||
| 3 | CLAMP 9010-020101 | Skladem | 101,64 Kč | ||
| 4 | Šroub 30006-060020840 | Skladem | 15,54 Kč | ||
| 5 | EXHAUST PIPE 901F-0201A0 | Není skladem | |||
| 6 | SPRING, MUFFLER 9010-020185 | Skladem | 31,07 Kč | ||
| 7 | COLLAR 9010-020102-1000 | Skladem | 155,36 Kč | ||
| 8 | OXYGEN SENSOR 018B-176000 | Skladem | 3 045,13 Kč | ||
| 9 | TAIL PIPE, EXHUAT 9050-020150 | Skladem | 310,73 Kč | ||
| 10 | Matice 30206-060540 | Není skladem | |||
| 11 | DAMPING COLLAR，MUFFLER 6050-020106 | Skladem | 15,54 Kč | ||
| 12 | HEAT INSULATION COVER，MUFFLER 9010-020140 | Skladem | 497,16 Kč | ||
| 14 | SPACER ，MUFFLER 9010-020184 | Skladem | 58,03 Kč | ||
| 15 | RUBBER CUSHION，MUFFLER 9010-020186 | Skladem | 62,15 Kč | ||
| 16 | Šroub 30006-080040840 | Skladem | 31,05 Kč | ||
| 17 | NUT M10×1.25 30204-080840 | Skladem | 15,54 Kč | ||
| 18 | GASKET，EXHAUST PIPE 0180-022300 | Skladem | 108,75 Kč | ||
| 19 | NUT M8, MUFFLER JOINT 8010-020001 | Skladem | 15,54 Kč | ||
| 20 | Šroub 30006-080020840 | Skladem | 15,54 Kč | ||
| 21 | FRONT SUPPORT, MUFFLER 9010-020003 | Skladem | 155,36 Kč | ||
| 22 | Šroub 30006-060012840 | Skladem | 15,54 Kč | ||
| 23 | RUBBER CUSHION，MUFFLER 9010-020187 | Skladem | 15,54 Kč | ||
| 24 | SCREW CLAMP，A-TYPE 9010-020007 | Skladem | 116,06 Kč | ||
| 25 | HEAT INSULATION PAPER 9010-020009 | Skladem | 46,61 Kč | ||
| 25 | HEAT INSULATOR 9010-020006 | Skladem | 101,56 Kč | ||
| 26 | FIBERGLASS NEEDLED MAT 9010-020005 | Skladem | 101,56 Kč | ||
| 27 | FRONT HEAT INSULATION PLATE, ALUMINIUM 4020-020002 | Skladem | 145,08 Kč | ||
| 28 | REAR HEAT INSULATOR,ALUMINIUM 4020-020001 | Skladem | 188,60 Kč | ||
| 29 | SCREW CLAMP，A-TYPE 9030-000109 | Skladem | 116,06 Kč | ||
| 30 | HEAT INSULATOR, MUFFLER 4020-0200A0 | Skladem | 901,11 Kč | ||
| 31 | HEAT INSULATOR, MUFFLER 4020-0200B0 | Skladem | 481,63 Kč | ||
| 32 | REAR HEAT INSULATION PLATE, ALUMINIUM 402A-020001 | Skladem | 261,14 Kč | ||
