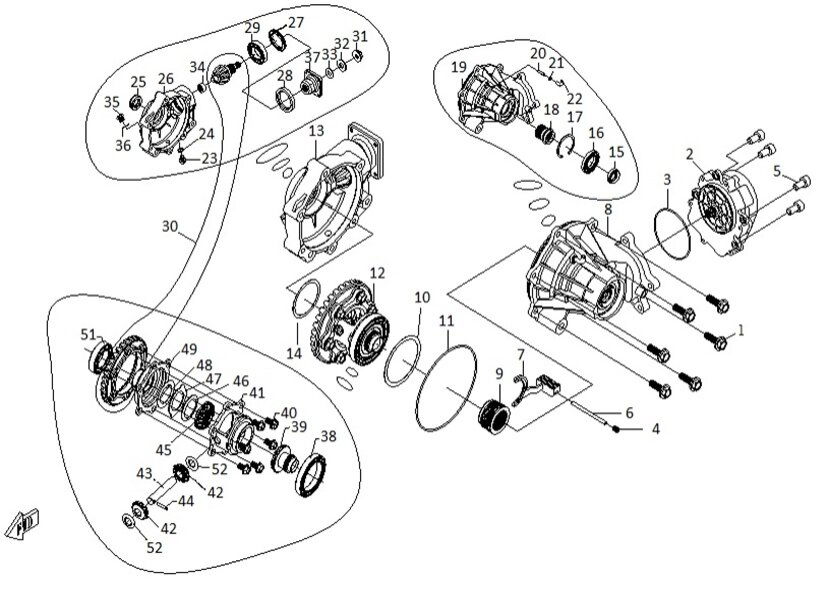

Přední diferenciál
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | Šroub 0180-310100-0010 | Skladem | 31,07 Kč | ||
| 2 | GEAR MOTOR 0181-314000 | Skladem | 3 697,66 Kč | ||
| 3 | O-RING φ81.2×1.9 0180-310001 | Skladem | 31,07 Kč | ||
| 4 | INNER HEX SCREW 30130-080010820 | Skladem | 15,54 Kč | ||
| 5 | INNER HEX SCREW 30102-080020820 | Skladem | 15,54 Kč | ||
| 6 | PIN SHAFT 0180-310002 | Skladem | 62,15 Kč | ||
| 7 | SHIFT FORK 0180-315000 | Skladem | 372,87 Kč | ||
| 8 | GEAR CASE ASSY, FRONT AXLE 0181-311000 | Není skladem | |||
| 9 | DRIVE CLUTCH 0180-310003-0050 | Skladem | 466,09 Kč | ||
| 10-1 | ADJUST SHIM(83*71*0.2) 0180-310004-0001 | Skladem | 43,52 Kč | ||
| 10-2 | ADJUST SHIM(83*71*0.3) 0180-310004-0002 | Skladem | 43,52 Kč | ||
| 10-3 | ADJUST SHIM(83*71*0.4) 0180-310004-0003 | Skladem | 43,52 Kč | ||
| 10-4 | ADJUST SHIM(83*71*0.5) 0180-310004-0004 | Skladem | 46,61 Kč | ||
| 10-5 | ADJUST SHIM(83*71*1.0) 0180-310004-0005 | Skladem | 46,61 Kč | ||
| 11 | O-RING φ141×2.4 0180-310005 | Skladem | 43,52 Kč | ||
| 12 | DIFFERENTIAL GEAR ASSY 0181-313000 | Není skladem | |||
| 13 | CASE COVER ASSY, FRONT AXLE 0181-312000 | Není skladem | |||
| 14-1 | ADJUST SHIM(61*48*0.1) 0180-310006 | Skladem | 43,52 Kč | ||
| 14-2 | ADJUST SHIM(61*48*0.2) 0180-310006-0001 | Skladem | 43,52 Kč | ||
| 14-3 | ADJUST SHIM(61*48*0.3) 0180-310006-0002 | Skladem | 43,52 Kč | ||
| 14-4 | ADJUST SHIM(61*48*0.4) 0180-310006-0003 | Skladem | 43,52 Kč | ||
| 14-5 | ADJUST SHIM(61*48*0.5) 0180-310006-0004 | Skladem | 43,52 Kč | ||
| 14-6 | ADJUST SHIM(61*48*1.0) 0180-310006-0005 | Skladem | 46,61 Kč | ||
| 16 | BEARING 16007 30400-03501 | Skladem | 233,05 Kč | ||
| 17 | RETAINER 62 30800-06200 | Skladem | 31,07 Kč | ||
| 18 | DRIVE CLUTCH COVER 0180-311003-0050 | Skladem | 574,85 Kč | ||
| 19 | GEAR CASE, FRONT AXLE 0181-311002-0080 | Skladem | 1 879,90 Kč | ||
| 20 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 21 | BREATHER HOSE, FRONT GEAR CASE 9010-310001 | Skladem | 62,15 Kč | ||
| 21 | BREATHER PIPE 0180-332005 | Skladem | 201,97 Kč | ||
| 22 | WIRE CLAMP A7 30601-107030 | Skladem | 15,54 Kč | ||
| 23 | DRAIN BOLT 0010-060011-0030 | Skladem | 31,07 Kč | ||
| 24 | WASHER 10 0010-060010 | Skladem | 31,07 Kč | ||
| 25 | OIL SEAL 24×38×8 0180-311001 | Skladem | 62,15 Kč | ||
| 26 | CASE COVER, FRONT AXLE 0181-312001-0080 | Skladem | 1 771,15 Kč | ||
| 27 | BEARING RETAINER 0181-312009 | Skladem | 186,44 Kč | ||
| 28 | OIL SEAL 0180-312002 | Skladem | 93,22 Kč | ||
| 30 | DRIVE PINION GEAR&DIFFERENTIAL GEAR 0180-310020 | Skladem | 3 961,78 Kč | ||
| 31 | Matice 0180-312004-0010 | Skladem | 43,52 Kč | ||
| 32 | NUT WASHER 0180-312005-0050 | Skladem | 43,52 Kč | ||
| 33 | O-Kroužek 0180-312006 | Skladem | 15,54 Kč | ||
| 34 | NEEDLE BEARING 30499-01502 | Skladem | 683,60 Kč | ||
| 35 | Šroub 0180-021008-0030 | Skladem | 58,03 Kč | ||
| 36 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 37 | COUPLER 0181-312007-0050 | Skladem | 901,11 Kč | ||
| 38 | BEARING 61912 30499-06000 | Skladem | 1 273,98 Kč | ||
| 39 | DRIVE GEAR 0180-313001 | Skladem | 1 040,94 Kč | ||
| 40 | BOLT M10×1.25×22 0181-313100-0010 | Skladem | 31,07 Kč | ||
| 41 | BRACKET,DIFFERENTIAL 0181-313008-0050 | Skladem | 1 631,32 Kč | ||
| 42 | GEAR(CENTER), DIFFERENTIAL 0180-313003 | Skladem | 233,05 Kč | ||
| 43 | GEAR SHAFT(CENTER), DIFFERENTIAL 0180-313002 | Skladem | 139,83 Kč | ||
| 44 | PIN 0180-313007-0050 | Skladem | 43,52 Kč | ||
| 45 | DRIVEN GEAR 0180-313006 | Skladem | 668,07 Kč | ||
| 46 | Podložka 0180-313005-0010 | Skladem | 43,52 Kč | ||
| 47 | GASKET 0180-313009-0010 | Skladem | 58,03 Kč | ||
| 48-1 | ADJUST GASKET 0180-313010 | Skladem | 46,61 Kč | ||
| 48-2 | ADJUST GASKET 0180-313010-0001 | Skladem | 43,52 Kč | ||
| 48-3 | ADJUST GASKET 0180-313010-0002 | Skladem | 43,52 Kč | ||
| 48-4 | ADJUST GASKET 0180-313010-0003 | Skladem | 43,52 Kč | ||
| 48-5 | ADJUST GASKET 0180-313010-0004 | Skladem | 43,52 Kč | ||
| 48-6 | ADJUST GASKET 0180-313010-0005 | Skladem | 43,52 Kč | ||
| 49 | TOP BRACKET,DIFFERENTIAL GEAR 0181-313010-0050 | Skladem | 1 289,52 Kč | ||
| 51 | BEARING 6007 30400-03502 | Skladem | 333,68 Kč | ||
| 52 | WEARING RING 0181-313011 | Skladem | 31,07 Kč | ||
