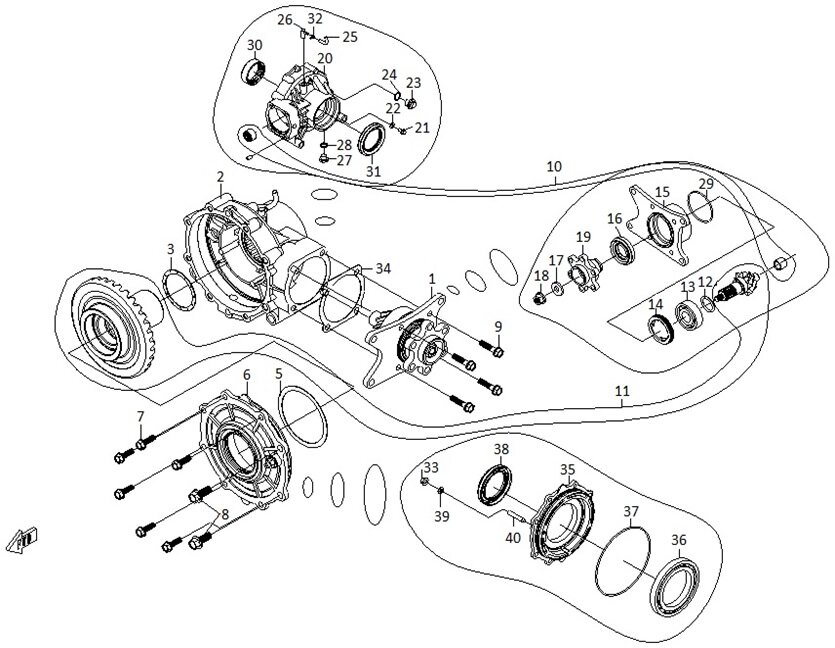

Zadní rozvodovka
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 1 | DRIVE BEVEL GEAR ASSEMBLY, RA 0180-331000 | Skladem | 9 166,48 Kč | ||
| 2 | REAR GEAR CASE 0180-332000 | Skladem | 4 179,29 Kč | ||
| 3-1 | ADJUST SHIM(1) 1.0 0180-330001 | Skladem | 62,15 Kč | ||
| 3-2 | ADJUST SHIM(1) 1.2 0180-330001-0001 | Skladem | 62,15 Kč | ||
| 3-3 | ADJUST SHIM(1) 1.4 0180-330001-0002 | Skladem | 62,15 Kč | ||
| 3-4 | ADJUST SHIM(1) 1.6 0180-330001-0003 | Skladem | 62,15 Kč | ||
| 3-5 | ADJUST SHIM(1) 1.8 0180-330001-0004 | Skladem | 62,15 Kč | ||
| 5-1 | ADJUST SHIM(2) 0.2 0180-330002 | Skladem | 46,61 Kč | ||
| 5-2 | ADJUST SHIM(2) 0.3 0180-330002-0001 | Skladem | 46,61 Kč | ||
| 5-3 | ADJUST SHIM(2) 0.4 0180-330002-0002 | Skladem | 46,61 Kč | ||
| 6 | RING GEAR BEARING HOUSING 0180-334000 | Skladem | 2 392,61 Kč | ||
| 7 | BOLT SET 30008-080025810 | Skladem | 29,02 Kč | ||
| 8 | Šroub 0180-330004-0030 | Skladem | 29,02 Kč | ||
| 9 | BOLT SET 30008-080035810 | Skladem | 15,54 Kč | ||
| 10 | INNER & OUTER RACE 30403-01700 | Skladem | 372,87 Kč | ||
| 11 | BEVEL GEAR COMP. REAR AXLE 0180-330010 | Skladem | 6 276,71 Kč | ||
| 12 | ADJUST SHIM 0180-331012 | Skladem | 46,57 Kč | ||
| 13 | BEARING 16017/C2 30400-02502 | Skladem | 290,16 Kč | ||
| 14 | BEARING RETAINER 0180-331003 | Skladem | 201,97 Kč | ||
| 15 | BEVEL GEAR BEARING HOUSING 0180-331005 | Skladem | 776,82 Kč | ||
| 16 | OIL SEAL 0180-331007 | Skladem | 101,56 Kč | ||
| 17 | Podložka 0180-331008-0050 | Skladem | 43,52 Kč | ||
| 18 | Matice 0180-331009-0020 | Skladem | 43,52 Kč | ||
| 19-1 | COUPLER, REAR AXLE 0180-331010-0050 | Skladem | 1 072,01 Kč | ||
| 19-2 | COUPLER, REAR AXLE 0180-331010-1050 | Skladem | 1 227,38 Kč | ||
| 20 | REAR GEAR CASE 0180-332001-0080 | Skladem | 3 045,13 Kč | ||
| 21 | Šroub 0180-332002-0020 | Skladem | 29,02 Kč | ||
| 23 | Šroub 0180-332003-0030 | Skladem | 58,03 Kč | ||
| 24 | O-SEAL RING 19×2.5 0180-332004 | Skladem | 15,54 Kč | ||
| 25 | BREATHER HOSE, FRONT GEAR CASE 9010-310001 | Skladem | 62,15 Kč | ||
| 25 | BREATHER PIPE 0180-332005 | Skladem | 201,97 Kč | ||
| 26 | PIPE JOINT 0180-332006 | Skladem | 58,03 Kč | ||
| 27 | Šroub 0180-021008-0030 | Skladem | 58,03 Kč | ||
| 28 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 29 | O RING 64.5×3 0180-331004 | Skladem | 31,07 Kč | ||
| 30 | NEEDLE BEARING 30404-05500 | Skladem | 326,26 Kč | ||
| 32 | WIRE CLAMP A7 30601-107030 | Skladem | 15,54 Kč | ||
| 33 | Matice 0180-334006-0030 | Není skladem | |||
| 34-1 | ADJUST SHIM(0.40) 0180-330003 | Skladem | 46,61 Kč | ||
| 34-2 | ADJUST SHIM(0.50) 0180-330003-0001 | Skladem | 46,61 Kč | ||
| 34-3 | ADJUST SHIM(0.60) 0180-330003-0002 | Skladem | 46,61 Kč | ||
| 35 | REAR GEAR BEARING HOUSING 0180-334001-0080 | Skladem | 932,18 Kč | ||
| 36 | Ložisko 30499-08500 | Skladem | 1 289,52 Kč | ||
| 37 | O-SEAL RING 151×3 0180-334002 | Skladem | 43,52 Kč | ||
| 38 | OIL SEAL 0180-334003 | Skladem | 159,59 Kč | ||
| 39 | GASKET 0180-334004 | Skladem | 31,07 Kč | ||
| 40 | HE× SCREW 0180-334005-0030 | Není skladem | |||
