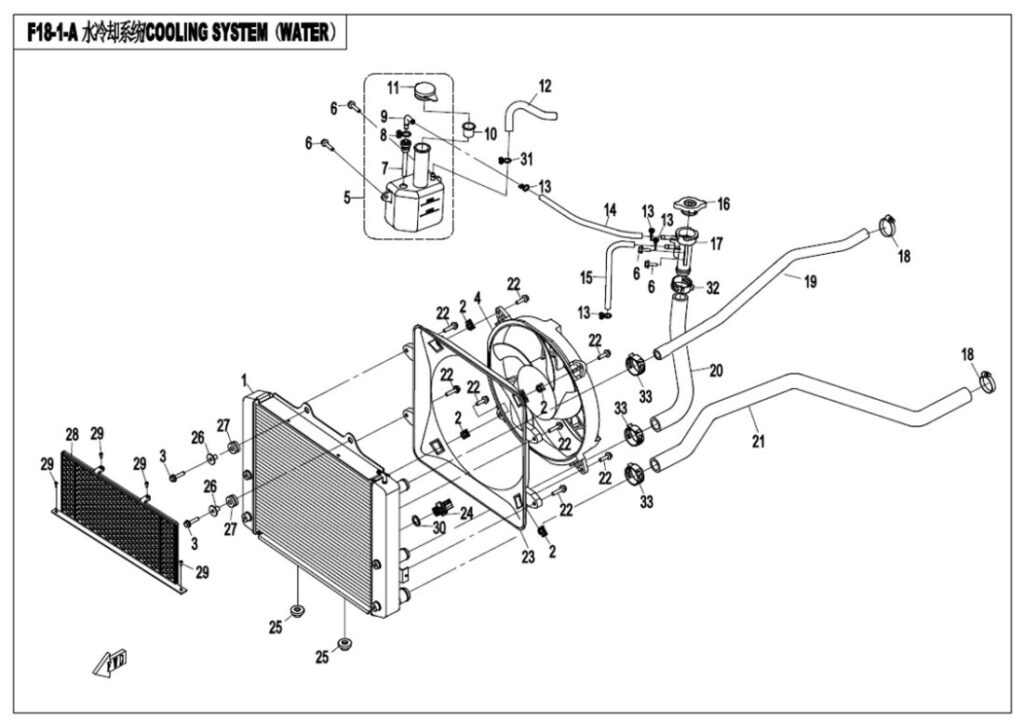

Chladící systém I
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RADIATOR 7020-180110-00001 | Skladem | 7 488,54 Kč | ||
| 02 | NUT CLIP M6 8030-040800 | Skladem | 15,54 Kč | ||
| 03 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 04 | FAN&MOTOR 7020-181400-1000 | Skladem | 4 971,65 Kč | ||
| 04 | FAN&MOTOR 7020-181400 | Skladem | 4 971,65 Kč | ||
| 05 | RESERVOIR TANK ASSY. 7020-180120 | Skladem | 481,63 Kč | ||
| 06 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 07 | HOSE, RESERVOIR TANK 8010-180028 | Skladem | 46,61 Kč | ||
| 08 | CLAMP A12 30601-112010 | Skladem | 15,54 Kč | ||
| 09 | JOINT, RESERVOIR TANK 8030-180302 | Skladem | 31,07 Kč | ||
| 10 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 11 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 12 | OUTLET PIPEⅠ, IDLE 6100-000102 | Skladem | 46,61 Kč | ||
| 13 | CLAMP A11 30601-111010 | Skladem | 15,54 Kč | ||
| 14 | WATER HOSE, RESERVOIR TANK 9060-180024 | Není skladem | |||
| 15 | OVERFLOW HOSE, RADIATOR 7020-180103 | Není skladem | |||
| 16 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 17 | WATER FILLING PORT 9060-180025-1000 | Skladem | 217,51 Kč | ||
| 18 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 19 | WATER INLET HOSE,RADIATOR 7020-180101-1000 | Skladem | 683,60 Kč | ||
| 20 | JOINT PIPE, WATER FILLER 7020-180105 | Skladem | 403,95 Kč | ||
| 21 | WATER OUTLET HOSE,RADIATOR 7020-180104 | Skladem | 807,89 Kč | ||
| 22 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 23 | DEFLECTOR, FAN 9060-181301 | Skladem | 248,58 Kč | ||
| 24 | THERMO SWITCH 7020-150600 | Skladem | 419,48 Kč | ||
| 25 | PIN RUBBER CAP, RADIATOR 9060-180026 | Skladem | 43,52 Kč | ||
| 26 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 27 | RUBBER CUSHION ，RADIATOR 9060-180027 | Skladem | |||
| 28 | PROTECTOR, RADIATOR 7020-181001 | Skladem | 290,16 Kč | ||
| 29 | SELF-TAPPING SCREW 30110-420095010 | Skladem | 29,02 Kč | ||
| 30 | RUBBER WASHER 16×23×2 6050-180006 | Skladem | 31,07 Kč | ||
| 31 | CLAMP A13 30601-113010 | Skladem | 15,54 Kč | ||
| 32 | STEEL BAND CLAMP 34 7000-180007 | Skladem | 101,56 Kč | ||
| 33 | CLAMP B30 A000-180006 | Skladem | 87,05 Kč | ||
