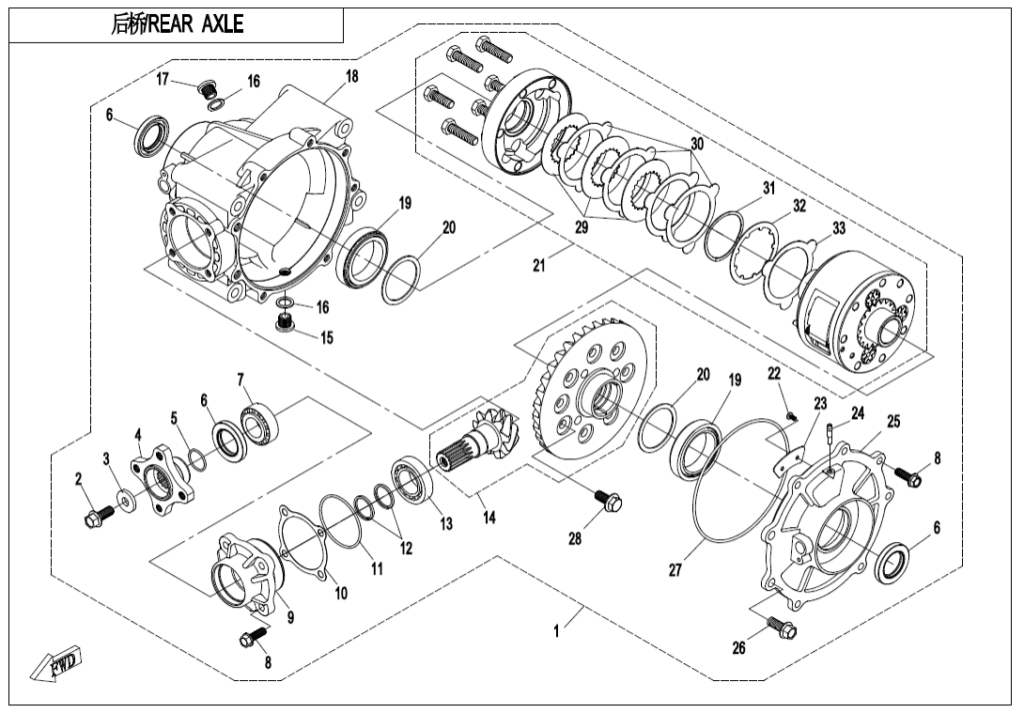

F33-A REAR AXLE(AUTOMATIC DIFFERENTIAL LOCK)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Q860 REAR AXLE Q860-330000 | Skladem | 59 038,32 Kč | ||
| 02 | BOLT M10×1.25×20 0GR0-062203 | Skladem | 108,75 Kč | ||
| 03 | WASHER 10×27.5×4 0GR0-062204 | Skladem | 43,52 Kč | ||
| 04 | COUPLER Q850-331002 | Skladem | 699,14 Kč | ||
| 05 | O-SEAL RING 25×2 0800-062205 | Skladem | 46,61 Kč | ||
| 06 | OIL SEAL 35×50×7 0800-062204 | Skladem | 174,09 Kč | ||
| 07 | Ložisko 30409-02500 | Skladem | 543,77 Kč | ||
| 08 | BOLT M8×28 0110-060011-0010 | Skladem | 15,54 Kč | ||
| 09 | BEARING SEAT Q830-311002-00001 | Skladem | 636,99 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00200 | Skladem | 46,61 Kč | ||
| 10 | ADJUSTING WASHER Q830-310023-00100 | Skladem | 46,61 Kč | ||
| 11 | O-RING 55*2.5 Q830-310006-10000 | Skladem | 77,68 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01400 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01300 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01200 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01100 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-01000 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00900 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00800 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00700 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00600 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00500 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00400 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00300 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00200 | Skladem | 31,07 Kč | ||
| 12 | ADJUSTING WASHER 32×25.4 Q830-311003-00100 | Skladem | 31,07 Kč | ||
| 13 | Ložisko 30409-03000 | Skladem | 481,63 Kč | ||
| 14 | BEVEL GEAR ASSY, REAR AXLE Q860-3300A0 | Skladem | 5 049,33 Kč | ||
| 15 | OIL DRAIN BOLT, MAGNETIC(M14X1.25X12) 0180-332100 | Skladem | 93,22 Kč | ||
| 16 | GASKET 14 0180-011006 | Skladem | 31,07 Kč | ||
| 17 | BOLT M14×1.25×12 0180-021008-0010 | Skladem | 58,03 Kč | ||
| 18 | CASE, REAR AXLE Q860-330001 | Skladem | |||
| 18 | REAR AXLE CASE Q860-330001-00001 | Skladem | 4 039,46 Kč | ||
| 19 | Ložisko 30409-05000 | Skladem | 1 538,10 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00900 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00800 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00700 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00600 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00500 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00400 | Skladem | 46,61 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00300 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00200 | Skladem | 31,07 Kč | ||
| 20 | ADJUSTING WASHER 61*50.5 Q820-330003-00100 | Skladem | 31,07 Kč | ||
| 21 | DIFFERENTIAL GEAR ASSY Q860-333100 | Skladem | 37 939,89 Kč | ||
| 22 | Šroub (vrut) 30105-040008410 | Skladem | 15,54 Kč | ||
| 23 | OIL GUARD Q830-310022 | Skladem | 31,07 Kč | ||
| 24 | JOINT , BREATHER HOSE 0180-311004-0020 | Skladem | 31,07 Kč | ||
| 25 | COVER, REAR AXLE CASE Q860-330002-00001 | Skladem | |||
| 26 | BOLT M10×1.25×25 0180-330004-0010 | Skladem | 31,07 Kč | ||
| 27 | O-SEAL RING 151×3 0180-334002 | Skladem | 43,52 Kč | ||
| 28 | BOLT M10×1.25×22 0181-313100-0010 | Skladem | 31,07 Kč | ||
| 29 | FRICTION DISC, INNER GEAR Q850-333107 | Skladem | 319,17 Kč | ||
| 30 | FRICTION DISC, OUTER GEAR Q850-333104 | Skladem | 279,66 Kč | ||
| 31 | GASKET Q850-333111 | Skladem | 174,09 Kč | ||
| 32 | FRICTION DISC, INNER Q850-333108 | Skladem | 319,17 Kč | ||
| 33 | POLISHED SECTION, FRICTION DISC Q850-333106 | Skladem | 279,66 Kč | ||
