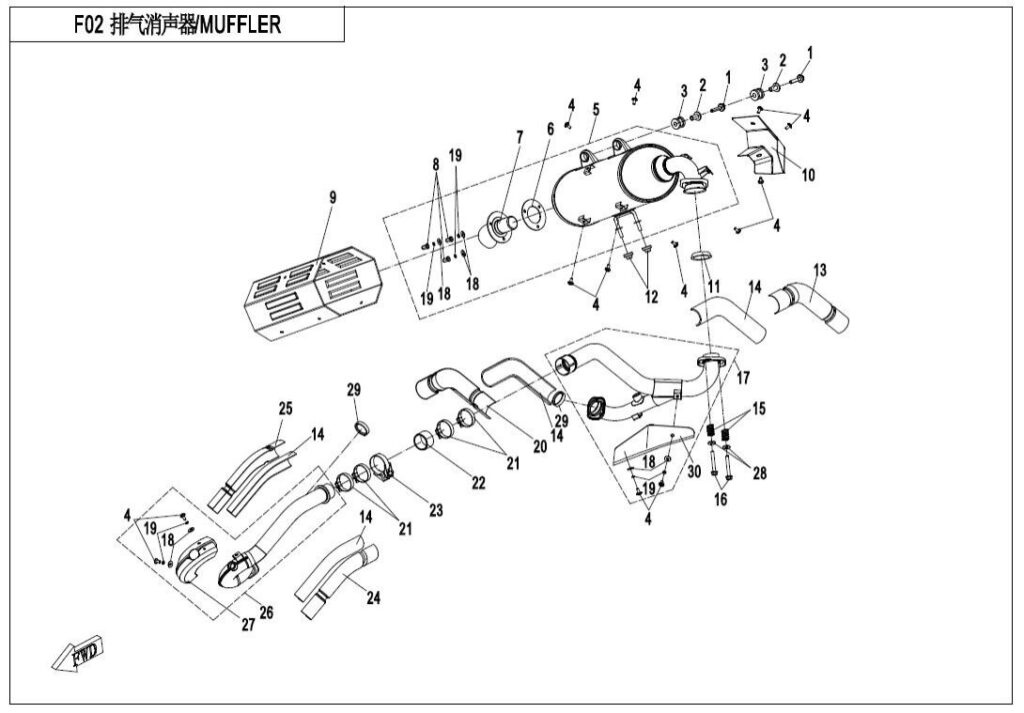

MUFFLER
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Šroub 30006-080040810 | Skladem | 31,07 Kč | ||
| 02 | SPACER Ⅱ，MUFFLER 9010-020300 | Skladem | 62,15 Kč | ||
| 03 | RUBBER CUSHION，MUFFLER I 5BY2-020007 | Skladem | |||
| 04 | BOLT M6x16 A010-120003 | Skladem | 31,07 Kč | ||
| 05 | MUFFLER BODY ASSY 5BY2-021300-10000 | Skladem | 23 615,33 Kč | ||
| 06 | SEAL GASKET 5BY2-021001 | Skladem | 139,83 Kč | ||
| 07 | SPAPK ARRESTOR 5BY2-021400-10000 | Skladem | 1 087,55 Kč | ||
| 08 | Matice 30206-060510 | Skladem | |||
| 09 | OUTER HEAT INSULATION COVER,MUFFLER BODY 5BY2-020001 | Skladem | 636,99 Kč | ||
| 10 | HEAT INSULATION COVER, MUFFLER EXHAUST PIPE 5BY2-020009 | Skladem | |||
| 11 | COLLAR，BIG 7030-021002 | Skladem | 186,44 Kč | ||
| 12 | RUBBER CUSHION，MUFFLER II 5BY2-020008 | Skladem | |||
| 13 | HEAT INSULATOR Ⅲ,EXHAUST PIPE 5BY2-020004 | Skladem | 357,34 Kč | ||
| 14 | HEAT INSULATOR 7000-020005 | Skladem | 130,57 Kč | ||
| 15 | SPRING, MUFFLER 9AWA-021001 | Skladem | 46,61 Kč | ||
| 16 | Šroub 30006-080065810 | Skladem | 31,07 Kč | ||
| 17 | REAR EXHAUST PIPE, MUFFLER 5BY2-021200 | Skladem | 4 207,29 Kč | ||
| 18 | Podložka 30306-060112 | Skladem | 15,54 Kč | ||
| 19 | Podložka 30303-060112 | Skladem | 15,54 Kč | ||
| 20 | HEAT INSULATOR Ⅳ,EXHAUST PIPE 5BY2-020005 | Skladem | 357,34 Kč | ||
| 21 | SCREW CLAMP，A-TYPE 7030-021305 | Skladem | 108,75 Kč | ||
| 22 | SEAL SLEEVE, GRAPHITE Ⅰ A000-020002 | Skladem | 232,13 Kč | ||
| 23 | CLAMP Ⅱ A000-020600 | Skladem | 203,11 Kč | ||
| 24 | HEAT INSULATORⅠ,EXHAUST PIPE 5BY2-020002 | Skladem | 326,26 Kč | ||
| 25 | HEAT INSULATOR Ⅱ,EXHAUST PIPE 5BY2-020003 | Skladem | 326,26 Kč | ||
| 26 | FRONT EXHAUST PIPE,MUFFLER 5BY2-021100 | Skladem | 4 458,95 Kč | ||
| 27 | HEAT INSULATOR,EXHAUST PIPE 7000-020030 | Skladem | 652,53 Kč | ||
| 28 | Podložka 30305-080112 | Skladem | 15,54 Kč | ||
| 29 | BUSHING, EXHAUST PIPE 0800-022300 | Skladem | 108,75 Kč | ||
| 30 | HEAT INSULATOR Ⅴ,EXHAUST PIPE 5BY2-020006 | Skladem | |||
