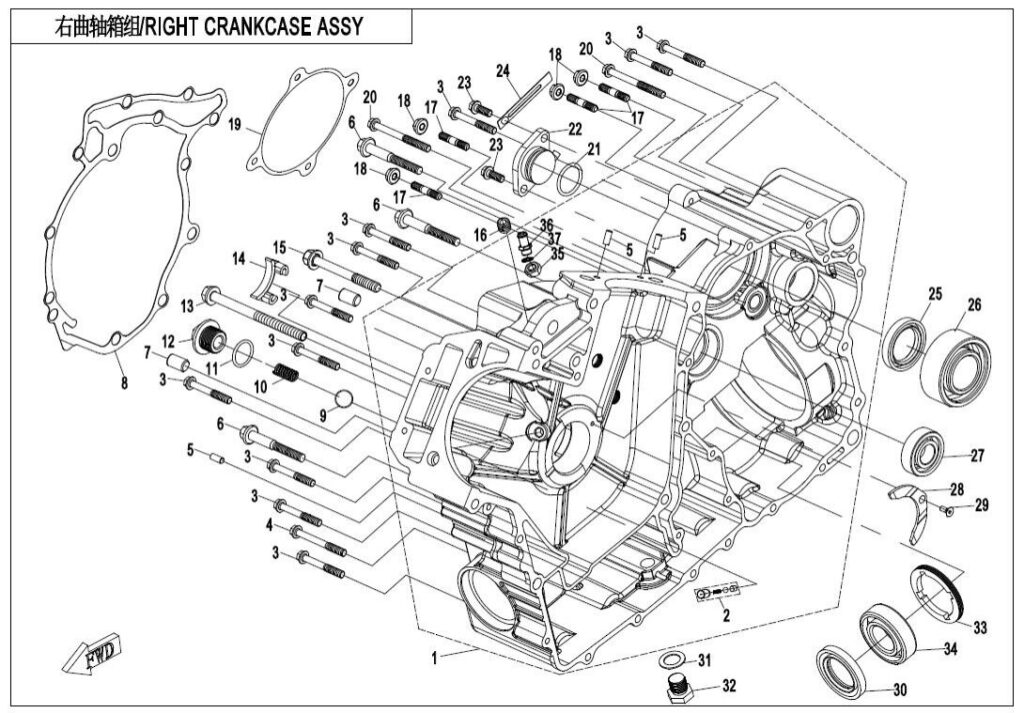

RIGHT CRANKCASE ASSY
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RIGHT CRANKCASE ASSY 0JWA-012100-20000 | Skladem | 17 152,19 Kč | ||
| 02 | NOZZLE VALVE ASSY. 0800-011400 | Skladem | 186,44 Kč | ||
| 03 | BOLT M6x45 0180-013208-0010 | Skladem | 15,54 Kč | ||
| 04 | BOLT M6×55 0010-021018-0010 | Skladem | 15,54 Kč | ||
| 05 | ROLLER NEEDLE P5×11.8 30406-00500 | Skladem | 15,54 Kč | ||
| 06 | BOLT M8×60 0130-011109-0010 | Skladem | 31,07 Kč | ||
| 07 | DOWEL PIN φ10×14 0010-021005 | Skladem | 15,54 Kč | ||
| 08 | GASKET(1), CVT CASE 0JWA-012001 | Skladem | 101,56 Kč | ||
| 09 | STEEL BALL 3120015 | Skladem | 15,54 Kč | ||
| 10 | SPRING,RELIEF VALVE 0700-012603-1000 | Skladem | 62,15 Kč | ||
| 11 | O-SEAL RING 19×2.5 0180-332004 | Skladem | 15,54 Kč | ||
| 12 | SCREW PLUG,RELIEF VALVE 0JWA-012005 | Skladem | 93,22 Kč | ||
| 13 | BOLT M8×106 0130-011115-0010 | Skladem | 72,54 Kč | ||
| 14 | CHAIN GUARD 0800-011007 | Skladem | 46,61 Kč | ||
| 15 | BOLT M8×73 0700-012003 | Skladem | 46,61 Kč | ||
| 16 | Šroub (vrut) 01A0-012010 | Skladem | 15,54 Kč | ||
| 17 | STUD 30011-060020820 | Skladem | 31,07 Kč | ||
| 18 | NUT M6 30204-060810 | Skladem | 15,54 Kč | ||
| 19 | GASKET(2), CVT CASE 0JWA-012002 | Skladem | 31,07 Kč | ||
| 20 | BOLT M6×75 0A70-011005 | Skladem | 15,54 Kč | ||
| 21 | O-SEAL RING 24×2.5 0180-023002 | Skladem | 43,52 Kč | ||
| 22 | GEAR SENSOR 0800-012200-1000 | Skladem | |||
| 22 | GEAR SENSOR ASSY. 0800-012200 | Skladem | 403,95 Kč | ||
| 23 | BOLT M6x16 0010-090005-0010 | Skladem | 15,54 Kč | ||
| 24 | WIRE CLAMP 0180-014010 | Skladem | 15,54 Kč | ||
| 25 | OIL SEAL30X45X7 0180-012006 | Skladem | 174,09 Kč | ||
| 26 | BEARING 3206A 30499-03000 | Skladem | 1 755,61 Kč | ||
| 27 | BEARING 6203 30400-01704 | Skladem | 310,73 Kč | ||
| 28 | THRUST WASHER, CRANKCASE 0800-011003 | Skladem | 174,09 Kč | ||
| 29 | Šroub (vrut) 30122-040010850 | Skladem | 15,54 Kč | ||
| 30 | OIL SEAL 25×40×8 0010-011002 | Skladem | 139,83 Kč | ||
| 31 | SPACER 14.1×22×1 0JWA-012003 | Skladem | 15,54 Kč | ||
| 32 | OIL DRAIN BOLT M14×1.5 0JWA-012200 | Skladem | 108,75 Kč | ||
| 33 | MIDDLE BEARING RETAINER, FRONT OUTPUT SHAFT 0JWA-012004 | Skladem | 261,14 Kč | ||
| 34 | Ložisko 30400-02501 | Skladem | 155,36 Kč | ||
| 35 | NUT M18×1.5 30208-183700 | Skladem | |||
| 36 | JIONT, WATER PUMP COVER 0JWA-080009 | Skladem | 101,56 Kč | ||
| 37 | O-SEAL RING 15.8×2.4 0010-011008 | Skladem | 15,54 Kč | ||
