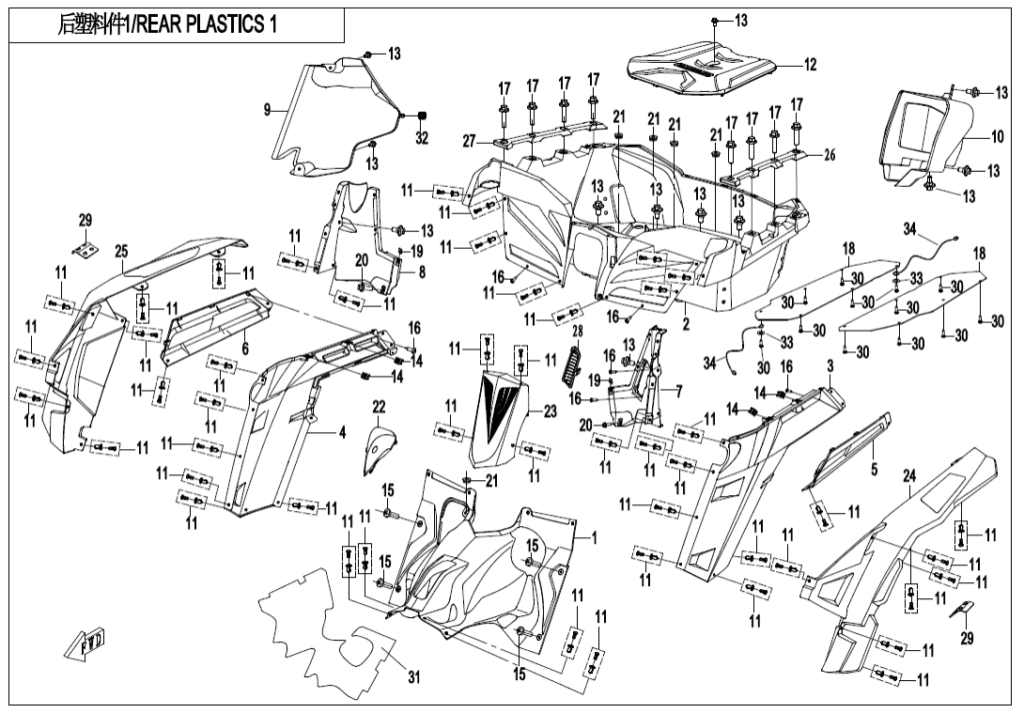

F04-5-V1 REAR PLASTIC 1
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | REAR GUARD 7000-041501 | Skladem | |||
| 01 | REAR GUARD 7000-041501-10000 | Skladem | |||
| 02 | REAR CARGO BOX 7000-042301 | Skladem | 6 152,41 Kč | ||
| 03 | LH REAR DECO PLATE 9060-040003-0YD00 | Skladem | |||
| 03 | LH REAR DECO PLATE 9060-040003-0EK00 | Skladem | |||
| 04 | RH REAR DECO PLATE 9060-040004-0EK00 | Skladem | |||
| 04 | RH REAR DECO PLATE 9060-040004-0YD00 | Skladem | |||
| 05 | REAR PROTECTOR(LH) 9060-040001 | Skladem | 261,14 Kč | ||
| 06 | REAR PROTECTION STRIP (RH) 9060-040002 | Skladem | 261,14 Kč | ||
| 07 | CONNECTING PANEL, LH 7000-042101-10000 | Skladem | |||
| 08 | CONNECTING PANEL, RH 7000-042201 | Skladem | |||
| 09 | COVER,AIR FILTER 7000-041901-10000 | Skladem | 481,63 Kč | ||
| 10 | COVER, BATTERY BOX 7000-041701 | Skladem | 559,31 Kč | ||
| 11 | PLASTIC CLIPS 9060-040310 | Skladem | 15,54 Kč | ||
| 12 | MAINTENANCE COVER 7000-042302 | Skladem | 792,36 Kč | ||
| 13 | BOLT M6x14 8010-000004 | Skladem | 15,54 Kč | ||
| 14 | NUT CLIP M6 8030-040800 | Skladem | 15,54 Kč | ||
| 15 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 16 | SELF-TAPPING SCREW 30110-420130010 | Skladem | 15,54 Kč | ||
| 17 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 18 | HEAT INSULATOR, REAR REPAIR COVER 7000-038112-10000 | Skladem | 497,16 Kč | ||
| 19 | CLAMP ST4.2 8010-000002 | Skladem | 15,54 Kč | ||
| 20 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 21 | RUBBER COLLAR 0180-015003 | Skladem | 43,52 Kč | ||
| 22 | CAP, OIL FILLER 7000-041502 | Skladem | |||
| 22 | CAP, OIL FILLER 7000-041502-10000 | Skladem | |||
| 23 | VENT GRILLE 7000-042303 | Skladem | |||
| 24 | REAR FENDER,LH 4060-260603 | Skladem | 1 009,87 Kč | ||
| 25 | REAR FENDER, RH 4060-260604 | Skladem | 1 009,87 Kč | ||
| 26 | DECO STRIP, LH CARGO BOX 7000-042311 | Skladem | |||
| 27 | RH DECO STRIP,CARGO BOX 7000-042321 | Skladem | |||
| 28 | VENT GRILLE, CVT 7000-042102-10000 | Skladem | |||
| 29 | LINK PANEL, REAR FENDER 4060-260605 | Skladem | 62,15 Kč | ||
| 30 | SELF-TAPPING SCREW 30110-420095010 | Skladem | 29,02 Kč | ||
| 31 | HEAT INSULATOR,REAR LOWER FENDER 7000-041503 | Skladem | |||
| 31 | HEAT INSULATOR,REAR LOWER FENDER 7000-041503-10000 | Skladem | |||
| 32 | RUBBER SLEEVE, FRONT LICENSE BRACKET 5020-031001 | Skladem | 29,02 Kč | ||
| 33 | Podložka 30305-050112 | Skladem | 15,54 Kč | ||
| 34 | CABLE,FRONT TOP COVER 7030-040010-00001 | Není skladem | |||
