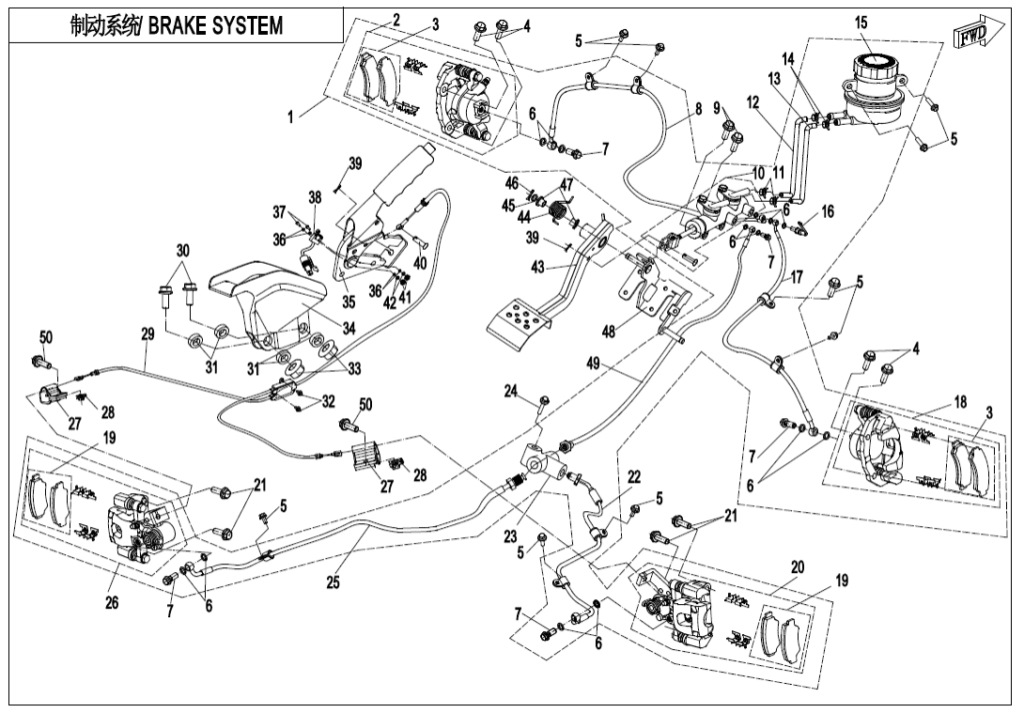

F08-B BRAKE SYSTEM(STANDARD)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | HYDRAULIC BRAKE 5BW1-081000 | Skladem | |||
| 01 | HYDRAULIC BRAKE 5BW1-081000-00001 | Skladem | |||
| 02 | FRONT BRAKE CALIPER, LH 7020-081030-10000 | Skladem | 3 464,62 Kč | ||
| 03 | FRONT BRAKE PAD ASSY 7020-0810B0 | Skladem | 1 180,77 Kč | ||
| 04 | Šroub 30006-102020810 | Skladem | 43,52 Kč | ||
| 05 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 06 | Podložka 901B-080102 | Skladem | 15,54 Kč | ||
| 07 | BANJO BOLT 7020-081004 | Skladem | 31,07 Kč | ||
| 08 | FLUID HOSE, LH FRONT BRAKE 5BWB-081010-00001 | Skladem | 1 180,77 Kč | ||
| 08 | SOFT FLUID HOSE, FRONT BRAKE(LH) 5BWB-081010 | Skladem | |||
| 09 | Šroub 30006-080025810 | Skladem | 15,54 Kč | ||
| 10 | MASTER PUMP ASSY 5BWB-081100-00001 | Skladem | |||
| 10 | MASTER PUMP ASSY 5BWB-081100-00002 | Skladem | 2 920,84 Kč | ||
| 11 | PIPE CLIP, MASTER CYLINDER 7020-081002 | Skladem | 31,07 Kč | ||
| 12 | HOSE 1, FLUID RESERVOIR 5BWB-081001-10000 | Skladem | |||
| 13 | HOSE 2, FLUID RESERVOIR 5BWB-081002-10000 | Skladem | |||
| 14 | CLAMP 9010-080405 | Skladem | 43,52 Kč | ||
| 15 | FLUID RESERVOIR 5BW1-080150-10000 | Skladem | 1 149,69 Kč | ||
| 16 | HYDRAULIC INDUCTION SWITCH 7020-080010 | Skladem | 699,14 Kč | ||
| 16 | HYDRAULIC INDUCTION SWITCH 7020-080010-20000 | Skladem | 699,14 Kč | ||
| 17 | FLUID HOSE, RH FRONT BRAKE 5BWB-081020-00001 | Skladem | 1 336,13 Kč | ||
| 17 | SOFT FLUID HOSE, FRONT BRAKE(RH) 5BWB-081020 | Skladem | 1 336,13 Kč | ||
| 18 | FRONT BRAKE CALIPER,RH 7020-081040-10000 | Skladem | 3 464,62 Kč | ||
| 19 | REAR BRAKE PAD ASSY 7020-0810A0 | Skladem | 1 040,94 Kč | ||
| 20 | REAR BRAKE CALIPER,LH 5BWB-081200-10000 | Skladem | 7 473,01 Kč | ||
| 21 | BOLT M10x1.25×45 30006-102045810 | Skladem | 46,61 Kč | ||
| 22 | SOFT FLUID HOSE, REAR BRAKE(RH) 5BWB-081040 | Skladem | 1 398,28 Kč | ||
| 23 | T-JOINT, HYDRAULIC BRAKE 7020-081001 | Skladem | 304,67 Kč | ||
| 24 | BOLT M6x30 30006-060030810 | Skladem | 15,54 Kč | ||
| 25 | SOFT FLUID HOSE, REAR BRAKE(LH) 5BWB-081030 | Skladem | 947,72 Kč | ||
| 26 | REAR BRAKE CALIPER, RH 5BWB-081300-10000 | Skladem | 7 473,01 Kč | ||
| 27 | CABLE CLIP 5UW2-080001 | Skladem | |||
| 28 | NUT M6 8010-000003 | Skladem | 46,61 Kč | ||
| 29 | BRAKE CABLE ,PARKING 5BWB-083100 | Skladem | |||
| 29 | PARKING BRAKE CABLE 5BWB-083100-10000 | Skladem | 963,26 Kč | ||
| 30 | BOLT M8x35 30006-080035810 | Skladem | 29,02 Kč | ||
| 31 | BUSHING, HAND BRAKE 7000-082003 | Skladem | |||
| 32 | Šroub 30006-050016810 | Skladem | 15,54 Kč | ||
| 33 | NUT M8 30204-080810 | Skladem | 15,54 Kč | ||
| 34 | SLEEVE, HAND BRAKE 7000-082002 | Skladem | 93,22 Kč | ||
| 35 | HAND BRAKE 7000-082200 | Skladem | 1 646,86 Kč | ||
| 36 | Podložka 30306-020800 | Skladem | 15,54 Kč | ||
| 37 | Šroub (vrut) 30105-020016700 | Skladem | 15,54 Kč | ||
| 38 | MICRO SWITCH 7000-082210 | Skladem | 466,09 Kč | ||
| 39 | COTTER PIN 30903-0162520 | Skladem | 15,54 Kč | ||
| 40 | PIN SHAFT 30904-0602011 | Skladem | |||
| 41 | Matice 30200-020500 | Skladem | 15,54 Kč | ||
| 42 | Podložka 30303-020900 | Skladem | 15,54 Kč | ||
| 43 | BRAKE PEDAL ASSY 5BWV-081300-1000 | Skladem | |||
| 43 | BRAKE PEDAL ASSY. 9060-081300 | Skladem | 885,57 Kč | ||
| 44 | RETURN SPRING 9060-080003 | Skladem | 77,68 Kč | ||
| 45 | Podložka 30306-120112 | Skladem | 15,54 Kč | ||
| 46 | COTTER PIN 30903-0322210 | Skladem | 15,54 Kč | ||
| 47 | Pouzdro 9060-105002 | Skladem | 46,61 Kč | ||
| 48 | FIXING BRACKET, BRAKE PEDAL 9060-081200-1000 | Skladem | 812,44 Kč | ||
| 49 | FLUID PIPE,REAR BRAKE 5BWB-081060 | Skladem | 1 755,61 Kč | ||
| 50 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
