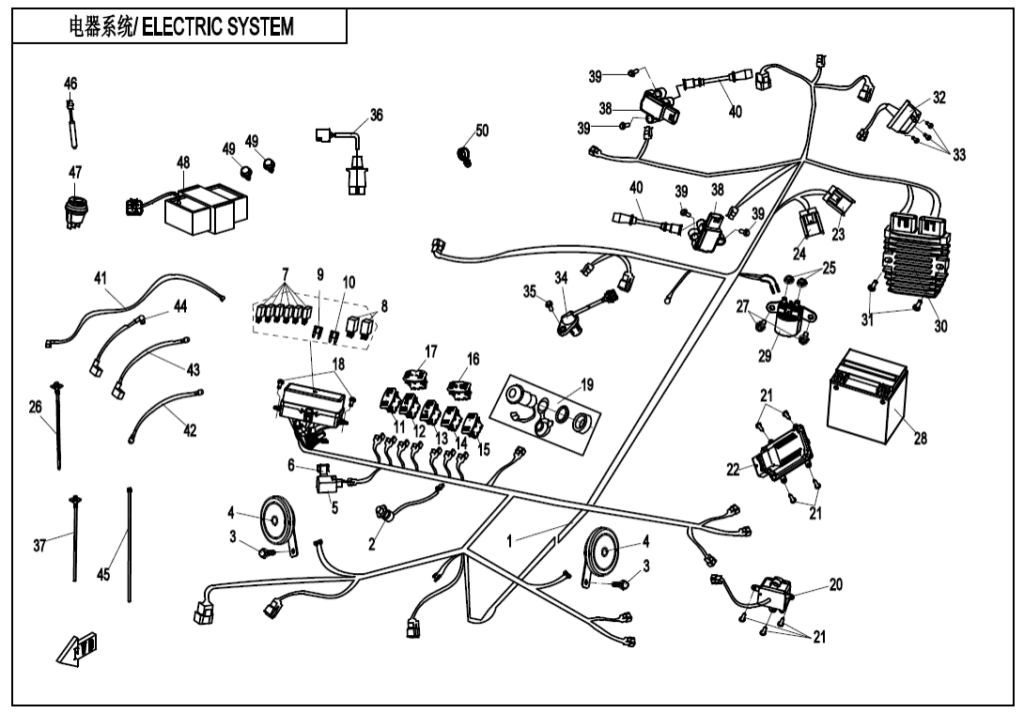

F15-1-B-V2 ELECTRIC SYSTEM(LOF)
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | Hlavní kabel 5BY4-150100-A0000 | Skladem | |||
| 01 | Hlavní kabel 5BY4-150100-A0001 | Skladem | |||
| 02 | BUTTON,CLOCK 7030-170300 | Skladem | 326,26 Kč | ||
| 03 | BOLT M8x14 30006-080014810 | Skladem | 15,54 Kč | ||
| 04 | ELECTRIC HORN 6060-150600 | Skladem | 275,65 Kč | ||
| 05 | Přerušovač blinkrů 5UW2-150340 | Skladem | 497,16 Kč | ||
| 06 | CUSHION WASHER, FLASHER 8010-150002 | Skladem | 15,54 Kč | ||
| 07 | AUXILIARY RELAY 5BY4-150330 | Skladem | 203,11 Kč | ||
| 08 | AUXILIARY RELAY 9010-150350 | Skladem | 130,57 Kč | ||
| 09 | FUSE (5A) 8080-151301 | Skladem | |||
| 10 | FUSE 15A 806A-151305 | Skladem | 15,54 Kč | ||
| 11 | OVERRIDING SWITCH 7000-151400-10000 | Skladem | |||
| 12 | HORN SWITCH 5BR0-151300 | Skladem | 372,87 Kč | ||
| 13 | DIMMER SWITCH 5BR0-151200 | Skladem | 372,87 Kč | ||
| 14 | ILLUMINATION SWITCH 5BR0-151100 | Skladem | 372,87 Kč | ||
| 15 | ALARM SWITCH 5BR0-151600 | Skladem | 372,87 Kč | ||
| 16 | STOP SWITCH, ENGINE 5UW2-151000 | Skladem | 512,70 Kč | ||
| 17 | TURNING SWITCH 5BR0-151500 | Skladem | 372,87 Kč | ||
| 18 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 19 | OUTPUT SEAT,POWER 7020-150500 | Skladem | 419,48 Kč | ||
| 20 | SWTICH ASSY.,2WD/4WD 5UW2-160700 | Skladem | 1 040,94 Kč | ||
| 21 | SELF-TAPPING SCREW ST4.8×16 30110-480160010 | Skladem | 15,54 Kč | ||
| 22 | Řídící jednotka ECU 0JYA-174000-70000 | Skladem | 13 066,11 Kč | ||
| 23 | 30A FUSE 5BY4-151301 | Skladem | 31,07 Kč | ||
| 24 | FUSE (40A) 9CR6-103501 | Skladem | 101,56 Kč | ||
| 25 | NUT M6 30202-060110 | Skladem | 15,54 Kč | ||
| 26 | TIE BAND 7030-150005 | Skladem | 31,07 Kč | ||
| 27 | BOLT M6x12 30006-060012810 | Skladem | 15,54 Kč | ||
| 28 | BATTERY 31023000 | Skladem | 3 848,73 Kč | ||
| 28 | BATTERY 31023002 | Skladem | |||
| 28 | GEL BATTERY 31023004 | Skladem | 6 209,38 Kč | ||
| 29 | STARTER RELAY 5270-150500 | Skladem | 403,95 Kč | ||
| 30 | REGULATOR 0800-177000-10000 | Skladem | 3 977,32 Kč | ||
| 30 | REGULATOR 0800-177000 | Skladem | 9 150,94 Kč | ||
| 30 | REGULATOR 01AA-177000 | Skladem | 3 146,00 Kč | ||
| 30 | REGULATOR 0800-177000-20000 | Skladem | |||
| 31 | Šroub 30004-060030810 | Skladem | |||
| 32 | POWER SOCKET，TRAILER 9010-151010-1000 | Skladem | 435,02 Kč | ||
| 33 | SCREW M5x30 30105-050030410 | Skladem | 15,54 Kč | ||
| 34 | SPEED SENSOR 7020-150400 | Skladem | 652,53 Kč | ||
| 35 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 36 | JOINT SEAT, TRAILER POWER 9010-151020 | Skladem | 481,63 Kč | ||
| 37 | TIE BAND 801F-100101 | Skladem | 31,07 Kč | ||
| 38 | IGNITION COIL 018B-178000 | Skladem | 1 227,38 Kč | ||
| 39 | Šroub 30006-060040810 | Skladem | |||
| 40 | HIGH-TENSION CABLE 0GRB-178000 | Skladem | 295,19 Kč | ||
| 41 | POSITIVE CABLE, STARTER MOTOR 7000-150520 | Skladem | |||
| 42 | NEGATIVE CABLE, STARTER MOTOR 7000-150620 | Skladem | |||
| 43 | NEGATIVE CABLE, BATTERY 7000-150610 | Skladem | |||
| 44 | POSITIVE CABLE, BATTERY 7000-150510 | Skladem | |||
| 45 | TIE BAND 9010-150004 | Skladem | 15,54 Kč | ||
| 46 | INDICATOR 4020-160603 | Skladem | 155,36 Kč | ||
| 47 | SWITCH ASSY., FOG LIGHT 9030-160810 | Skladem | 590,38 Kč | ||
| 48 | CONTROL UNIT,TRAILER TURN LIGHT 7030-160602 | Skladem | 776,82 Kč | ||
| 49 | SELF-TAPPING SCREW ST4.8×13 30132-480130030 | Skladem | 29,02 Kč | ||
| 50 | CLAMP, FRONT BRAKE HOSE A000-050015 | Skladem | 15,54 Kč | ||
