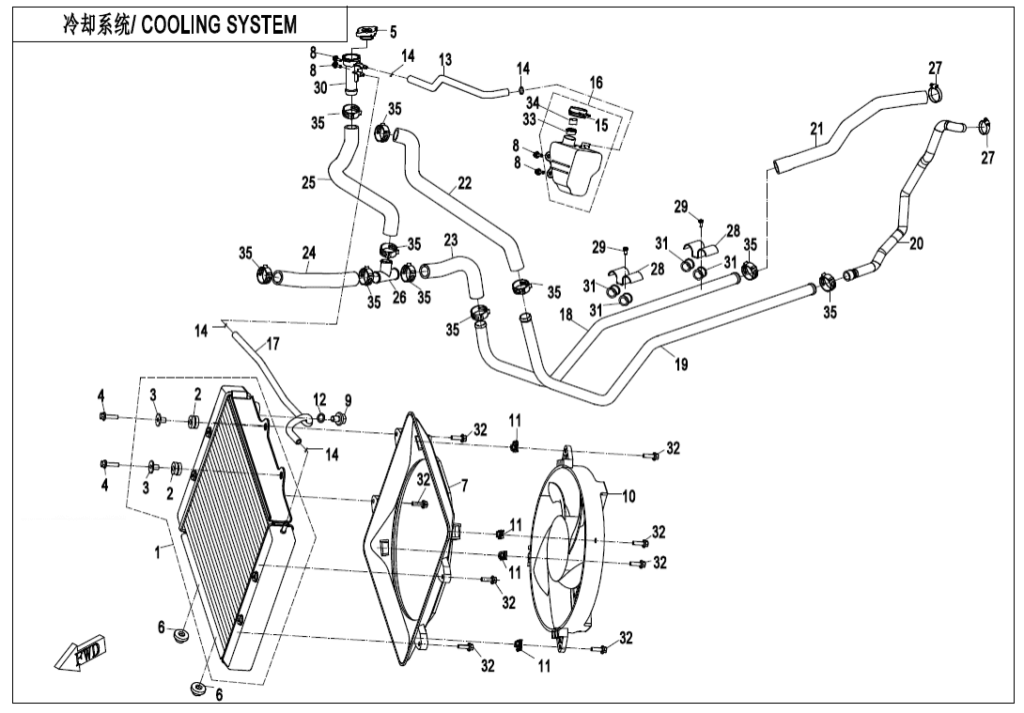

F18-V2 COOLING SYSTEM
| Číslo na výkresu |
Název součástky Kód součástky |
Sklad | Cena | ||
|---|---|---|---|---|---|
| 01 | RADIATOR ASSY. 9060-180100-1000 | Skladem | 7 146,74 Kč | ||
| 02 | RUBBER CUSHION ，RADIATOR 9060-180027 | Skladem | |||
| 03 | RUBBER CUSHION TUBE, RADIATOR 9060-180029 | Skladem | 15,54 Kč | ||
| 04 | BOLT M6x25 30006-060025810 | Skladem | 46,61 Kč | ||
| 05 | CAP，WATER FILLER 8010-180024 | Skladem | 232,13 Kč | ||
| 06 | PIN RUBBER CAP, RADIATOR 9060-180026 | Skladem | 43,52 Kč | ||
| 07 | DEFLECTOR, FAN 9060-181301 | Skladem | 248,58 Kč | ||
| 08 | BOLT M6x16 30006-060016810 | Skladem | 15,54 Kč | ||
| 09 | THREAD SLEEVE, RADIATOR 5BRA-180001 | Skladem | |||
| 10 | FAN&MOTOR 7020-181400 | Skladem | 4 971,65 Kč | ||
| 10 | FAN&MOTOR 7020-181400-1000 | Skladem | 4 971,65 Kč | ||
| 11 | NUT CLIP M6 8030-040800 | Skladem | 15,54 Kč | ||
| 12 | O-SEAL RING 5BRA-180002 | Skladem | |||
| 13 | WATER HOSE, RESERVOIR TANK 9060-180024 | Skladem | |||
| 14 | CLAMP A10 30601-110010 | Skladem | 15,54 Kč | ||
| 15 | CAP，RESERVOIR TANK 8010-180023 | Skladem | 46,61 Kč | ||
| 16 | RESERVOIR TANK ASSY. 9060-180900 | Skladem | 435,02 Kč | ||
| 17 | OVERFLOW HOSE, RADIATOR 9060-180023 | Skladem | |||
| 18 | ALUM. WATER PIPE 1 7000-180011 | Skladem | |||
| 19 | ALUM. WATER PIPE 2 7000-180012-10000 | Skladem | |||
| 20 | WATER OUTLET PIPE,ENGINE 7000-180001-10000 | Skladem | |||
| 21 | WATER INLET PIPE,ENGINE 7000-180002 | Skladem | |||
| 22 | WATER INLET HOSE,RADIATOR 7000-180003 | Skladem | |||
| 23 | TRANSITION WATER PIPE 9060-180005-00001 | Skladem | |||
| 24 | WATER OUTLET HOSE,RADIATOR 9060-180004-00001 | Skladem | |||
| 25 | JOINT PIPE, WATER FILLER 9060-180006-00001 | Skladem | |||
| 26 | T-JOINT, WATER HOSE 9060-180022 | Skladem | 170,90 Kč | ||
| 27 | CLAMP ，WATER HOSE 9010-180007 | Skladem | 62,15 Kč | ||
| 28 | CLASP,WATER HOSE 9030-180006 | Skladem | |||
| 29 | Šroub (vrut) 30105-060016410 | Skladem | |||
| 30 | WATER FILLING PORT 9060-180025-1000 | Skladem | 217,51 Kč | ||
| 31 | RUBBER COLLAR,WATER HOSE 9030-180009 | Není skladem | |||
| 32 | BOLT M6x20 30006-060020810 | Skladem | 15,54 Kč | ||
| 33 | GASKET, RESERVOIR 9060-180903 | Skladem | 29,02 Kč | ||
| 34 | PLUG, WATER OVERFLOW 9060-180031 | Skladem | |||
| 35 | STEEL BAND CLAMP 34 7000-180007 | Skladem | 101,56 Kč | ||
| 35 | STEEL BAND CLAMP 34 7000-180007-00001 | Skladem | 101,56 Kč | ||
